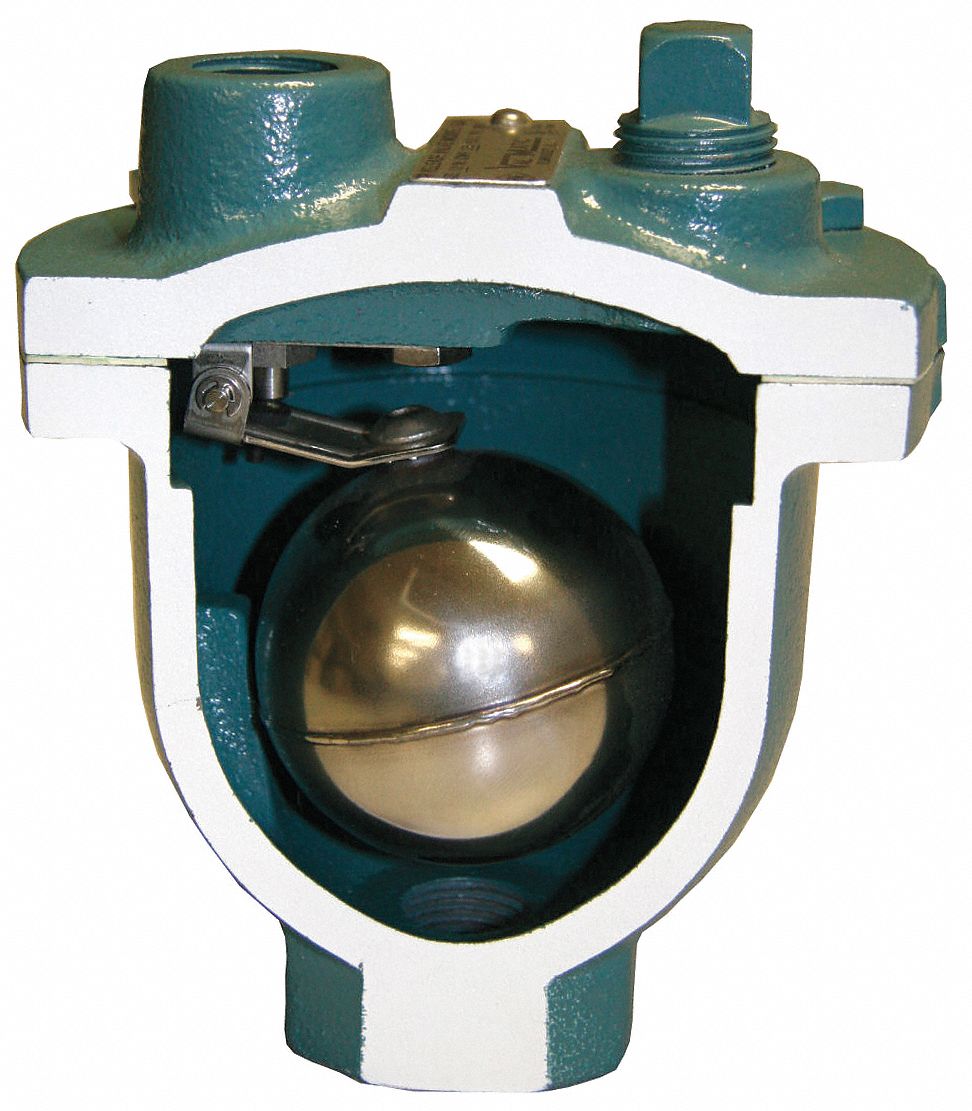

VAL-MATIC Air Release Valve, FNPT, 1 x 1/2, CI

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Air Release Valve, Inlet Size 1 In., Outlet Size 1/2 In., Application Clean Water, Min. Pressure 5 psi, Max. Pressure 175 psi, Max. Vent Capacity 6 scfm at 150 psi, Connection Type FNPT, Max. Fluid Temp. 250 Degrees F, Vacuum Pressure 29 In. Hg, Body Material Cast Iron, Float Material 316 Stainless Steel, Standards FM, NSF61, UL Listed, ASTM A126

Grainger Item #	5LYL2
Price (ea.)	$147.55
Brand	VAL-MATIC
Mfr. Model #	15A.3
UNSPSC #	40141606
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	5.37
Availability	Typically in Stock
Catalog Page No.	4422
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Air Release Valve
Inlet Size		1"
Outlet Size		1/2"
Application		Clean Water
Min. Pressure		5 psi
Max. Pressure		175 psi
Max. Vent Capacity		6 scfm at 150 psi
Connection Type		FNPT
Max. Fluid Temp.		250 Degrees F
Vacuum Pressure		29" Hg
Body Material		Cast Iron
Float Material		316 Stainless Steel
Standards		FM, NSF61, UL Listed, ASTM A126
