Motors
>
Motor Supplies
>
Vector Motor Brakes

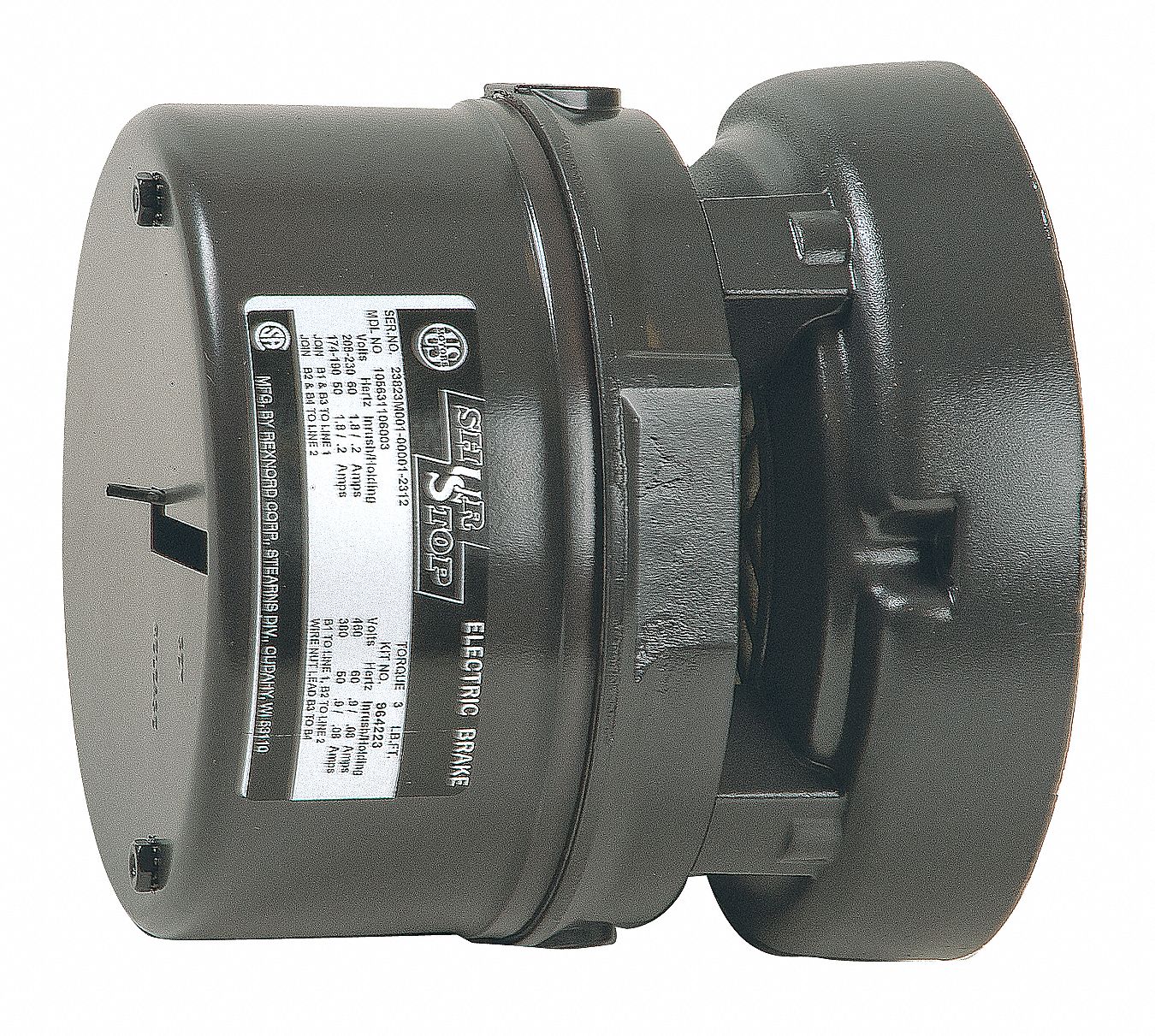

USEM Brake Kit, 10 ft.-lb.,

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Motor Brake Kit, NEMA/IEC Frame 56, 143T, 143TC, 145T, 145TC, Static Torque 10 ft.-lb., 1 to 30 HP, RPM Range 1200 to 3600, Voltage 230/460, 60/50 Hz, 3 Phase, Holding Amps 0.08, Inrush Amps 1.1, Rear End Mounting, Max. Ambient Temperature 40 Degrees C, Enclosure IP23, Enclosure Material Rolled Steel, Wire Termination Flying Leads, Diameter 6-9/16 In, Overall Length 4-1/16 In, Includes Mounting Hardware, For Use With USEM Unimount Motors

Grainger Item #	23J948
Price (ea.)	$962.50
Brand	USEM
Mfr. Model #	964227
UNSPSC #	26101809
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	9.15
Availability	Typically in Stock
Catalog Page No.	21
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Motor Brake Kit
Type		56, 143T, 143TC, 145T, 145TC
Static Torque		10 ft.-lb.
For Use With		USEM Unimount Motors
HP		1 to 30
RPM Range		1200 to 3600
Voltage		230/460
Hz		60/50
Phase		3
Holding Amps		0.08
Inrush Amps		1.1
Mounting		Rear End
Max. Ambient Temperature		40 Degrees C
Enclosure		IP23
Enclosure Material		Rolled Steel
Wire Termination		Flying Leads
Holds		Y
Diameter		6-9/16"
Overall Length		4-1/16"
ODE Shaft Diameter		5/8" - 7/8"
Manufacturers Warranty Length		1 Year
Mfr. Stock No.		964227
Includes		Mounting Hardware
