USEM Mtr, 3ph, 5hp, 1800rpm, 208-230/460, Eff 90.2

| Write a Review
| Read all Reviews
| Read all Ask & Answer

General Purpose Motor, 3-Phase, 5 HP, Nameplate RPM 1800, Voltage 208-230/460, 184TC Frame, Totally Enclosed Fan-Cooled, Number of Speeds 1, Full Load Amps 13.6-12.3/6.2, 60/50 Hz, Face/Base Mounting, Thermal Protection None, Insulation Class F, Service Factor 1.25, Ball Bearings, Max. Ambient Temp. 40 Degrees C, Rotation CW/CCW, Overall Length 16-7/8 In., Shaft Dia. 1-1/8 In., Shaft Length 2-3/4 In.

Grainger Item #	23J905
Price (ea.)	$933.00
Brand	USEM
Mfr. Model #	U5P2DC
UNSPSC #	26101612
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	83.0
Availability	Typically in Stock
Catalog Page No.	21
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

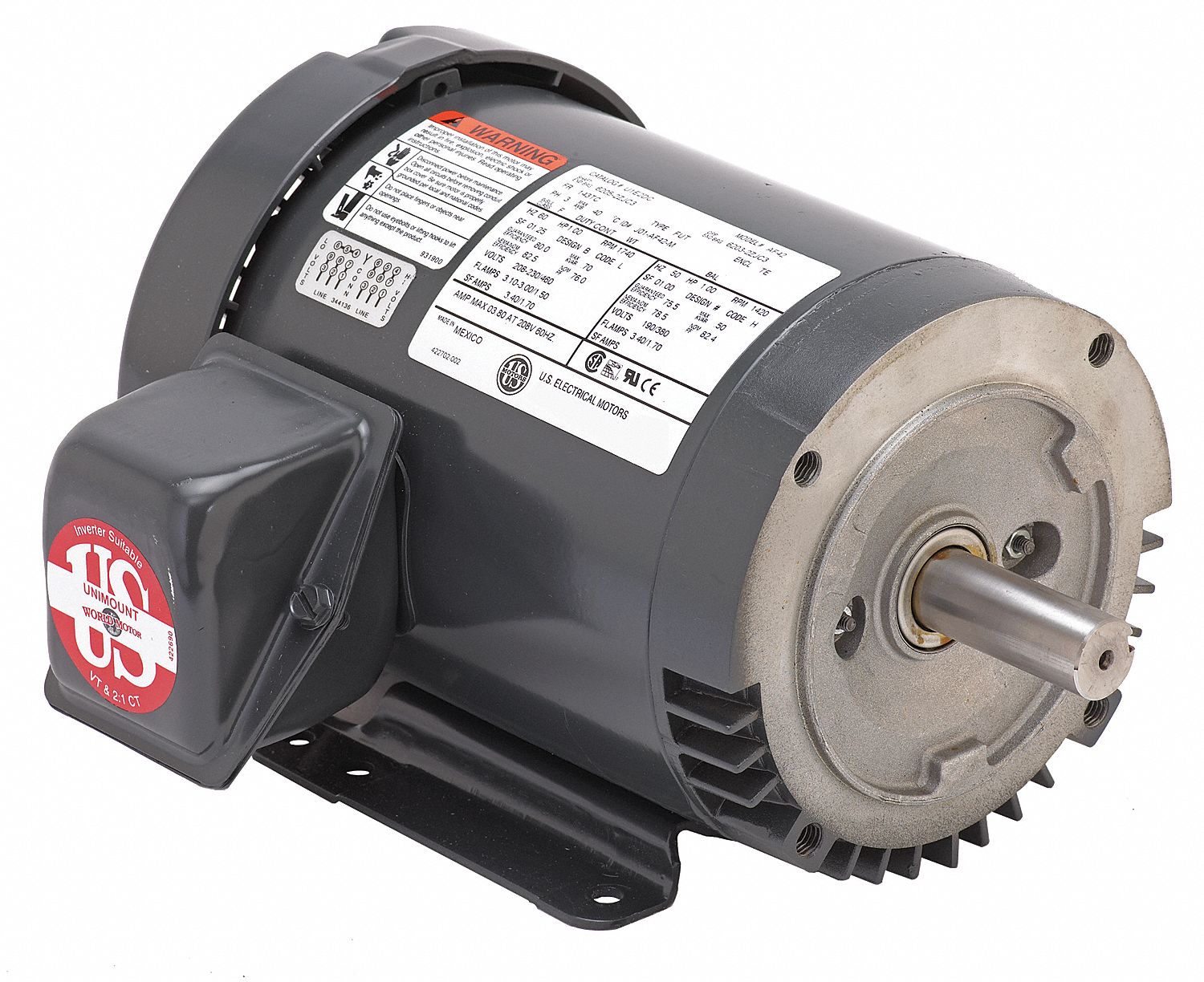

Mtr, 3ph, 5hp, 1800rpm, 208-230/460, Eff 90.2

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		General Purpose Motor
Motor Type		3-Phase
Enclosure		Totally Enclosed Fan-Cooled
HP		5
Nameplate RPM		1800
NEMA/IEC Frame		184TC
Frame		184TC
Voltage		208-230/460
Hz		60/50
Phase		3
Full Load Amps		13.6-12.3/6.2
Number of Speeds		1
Mounting		Face/Base
Mounting Position		Horizontal/Vertical, Shaft Down
Thermal Protection		None
Insulation Class		F
Service Factor		1.25
Bearings		Ball
Frame Material		Aluminum
Max. Ambient Temp.		40 Degrees C
Rotation		CW/CCW
Shaft Dia.		1-1/8"
Shaft Length		2-3/4"
Length Less Shaft		14-1/8"
Overall Length		16-7/8"
RPM Range		1400-1800
Standards		UL Recognized, CSA Certified, CE
Duty		Continuous
Efficiency Group		Energy Efficient
Nominal Efficiency		90.2%
Warranty (Years)		2
Footnotes		5,10
Green Certification or Other Recognition		NEMA Premium Rated
Green Environmental Attribute		Not Applicable
