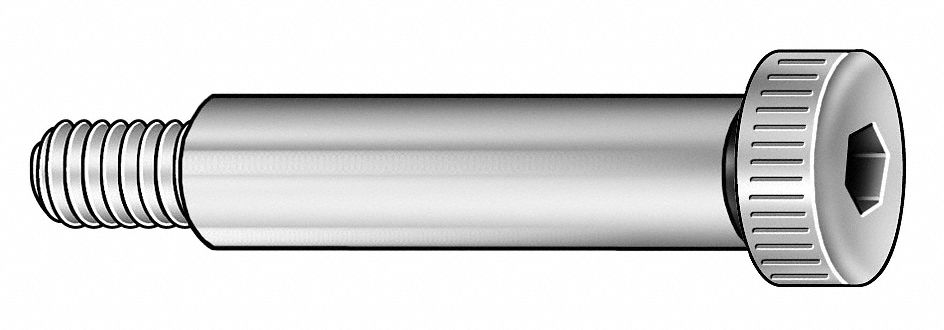

UNBRAKO Shoulder Bolt, M16x90mm, Pk 25

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Shoulder Screw, Standard, Alloy Steel, Plain Finish, Head Style Knurled, Thread Size M12 x 1.75mm, Drive Type Hex Socket, Drive Size 8mm, Shoulder Dia. 16mm, Shoulder Length 90mm, Thread Length 18.25mm, Head Dia. 24mm, Head Height 10mm, Shoulder Length Tolerance +0.25mm, Screw Head Dia. 24mm, Min. Tensile Strength (PSI) 160, 000, Shear Strength (PSI) 96, 000, Temp. Range (F) 50 to 550, Class 4g6g, Rockwell Hardness 36 to 43, Meets/Exceeds ANSI B18.3.3M/ISO7379, Package Quantity 25

Grainger Item #	5TNN4
Price (pk.)	$523.00
Package Qty.	25
Brand	UNBRAKO
Mfr. Model #	06343
UNSPSC #	31161517
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	10.55
Availability	Typically in Stock
Catalog Page No.	3258
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Shoulder Screw
Material		Alloy Steel
Finish		Plain
Head Style		Knurled
Thread Size		M12 x 1.75mm
Drive Type		Hex Socket
Drive Size		8mm
Shoulder Dia.		16mm
Shoulder Length		90mm
Thread Length		18.25mm
Head Dia.		24mm
Head Height		10mm
Shoulder Length Tolerance		+0.25mm
Screw Head Dia.		24mm
Min. Tensile Strength (PSI)		160,000
Shear Strength (PSI)		96,000
Temp. Range (F)		50 to 550
Class		4g6g
Rockwell Hardness		36 to 43
Meets/Exceeds		ANSI B18.3.3M/ISO7379
Package Quantity		25
