Pumps
>
Sump, Effluent and Sewage Pumps
>
Utility/Dewatering Pumps

TSURUMI Submersible Low Level Pump, 2/3 HP, 110V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Submersible Low Level Pump, 2/3 HP, Voltage 110, Amps 6.1, Cord Length 32 ft., Discharge NPT 2 In, Maximum Head 39.5 ft., Diameter 8-1/4 In, Steel Housing, Urethane Rubber Impeller Material, Max. Dia. Solids .236 In, Max. Liquid Temp. 104 Degrees F, Length 11-3/8 In, Width 8-1/4 In

Grainger Item #	38H476
Price (ea.)	$636.00
Brand	TSURUMI
Mfr. Model #	LSR2.4S-60
UNSPSC #	40151517
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	28.0
Availability	Item ships within 4 business days from supplier
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Taiwan

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

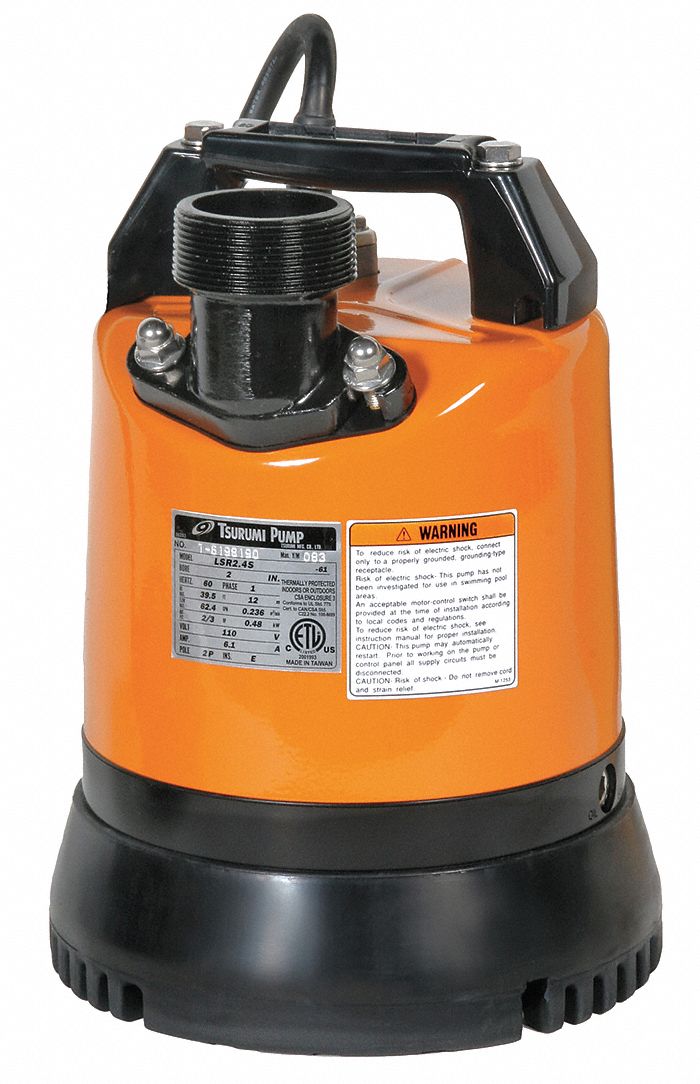

Submersible Low Level Pump, 2/3 HP, 110V

Enlarge Image

Item		Submersible Low Level Pump
Type		Construction Site and Residential Dewatering
HP		2/3
Voltage		110
Amps		6.1
Cord Length		32 ft.
Cord Size		16/3
Cord Type		3-Conductor STOW, Resists Water and Oil
Discharge NPT		2"
GPM @ 1 Ft. of Head		62
GPM of Water @ 5 Ft. of Head		62
GPM of Water @ 10 Ft. of Head		57
GPM of Water @ 15 Ft. of Head		50
GPM of Water @ 20 Ft. of Head		44
GPM of Water @ 25 Ft. of Head		34
GPM of Water @ 30 Ft. of Head		24
GPM of Water @ 35 Ft. of Head		11
Maximum Head		39.5 ft.
Height		11-3/8"
Diameter		8-1/4"
Housing		Steel
Top Material		Steel
Base Material		Rubber
Impeller Material		Urethane Rubber
Length		11-3/8"
Width		8-1/4"
Max. Dia. Solids		.236"
Max. Liquid Temp.		104 Degrees F
Min. Sump Pit Dia.		12"
Motor Type		PSC
Thermal Protection		Automatic
Motor Housing		Die Cast Aluminum
Phase		1
RPM		3255
Hz		60
Insulation Class		E
Bearing Type		Double Shielded, Permanently Lubricated, High Temperature C3 Ball Bearings Rated for a B-10 Life
Shaft Material		SS
Shaft Seal		Silicone Carbide
Suction		Screened Bottom
Duty		Continuous
Handle		Top Carrying
Function		Dewatering
Application		Drain Standing Water In Shallow Areas Such as Basements, Sumps, Construction and Dump Sites.
For Use With		Nonflammable Liquids
Agency Compliance		Etl/Cetl
Warranty		2 Years
