TSUBAKI Power Lock(R) AD Series, Dia 2.000 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

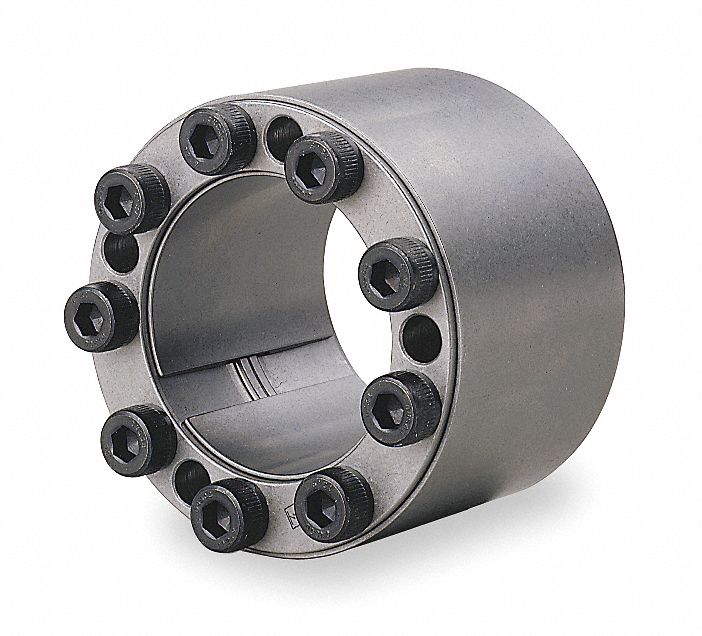

Power Lock(R), AD Series, Shaft Dia 2.0000 In, -0.0018 In Shaft Dia Tolerance, Outside Dia 3.346 In, +.0018 In Outside Dia Tolerance, Overall Length 2.520 In, Hub Contact Pressure 13779 PSI, Locking Bolt Quantity 9, M8 X 50 Bolt Size, Withstand Temp -22- 400 Deg F, Carbon Steel Material

Grainger Item #	4HJW2
Price (ea.)	$213.25
Brand	TSUBAKI
Mfr. Model #	PL2AD
UNSPSC #	31171605
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	3.7
Availability	Typically in Stock
Catalog Page No.	172
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Power Lock(R)
Shaft Dia. (In.)		2.0000
Shaft Dia. Tolerance		-0.0018"
Outside Dia. (In.)		3.346
Outside Dia. Tolerance		+.0018"
Overall Length (In.)		2.520
Transmissible Torque (Ft.-Lbs.)		3141
Transmissible Thrust (Lbs.)		38,163
Hub Contact Pressure (PSI)		13,779
Locking Bolt Quantity		9
Bolt Size		M8 X 50
Withstand Temp. (Deg. F)		-22- 400
