Electrical
>
Timers
>
Electronic Timers

TORK ElectTimer, Astro/Prog, 1 Chan, 365Day, DPDT

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Electronic Timer, Astronomic/Programmable, Number of Channels 1, Number of Poles 2, Contact Form DPDT, Voltage 120-277, Amps 30, HP @ 120V 1, HP @ 240V 2, Max. On/Off Cycles 99 Astronomic, Offset 299, Min. Time Setting 1 min., Max. Time Setting 365 Days, Pulse Duration 1 to 99 sec., Operation Mode 365 Days, NEMA Rating 3R, Enclosure Noryl I/O, Color Tan, Backup Time 7 Days, Operating Temp. -40 to 158 F, Length (In.) 9-1/8, Depth (In.) 4-1/2, Width (In.) 5

Grainger Item #	4JNG8
Price (ea.)	$467.75
Brand	TORK
Mfr. Model #	DZS100BP
UNSPSC #	39121523
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.95
Availability	Typically in Stock
Catalog Page No.	445
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $89.95 each.
Price shown may not reflect your price. Sign in or register.

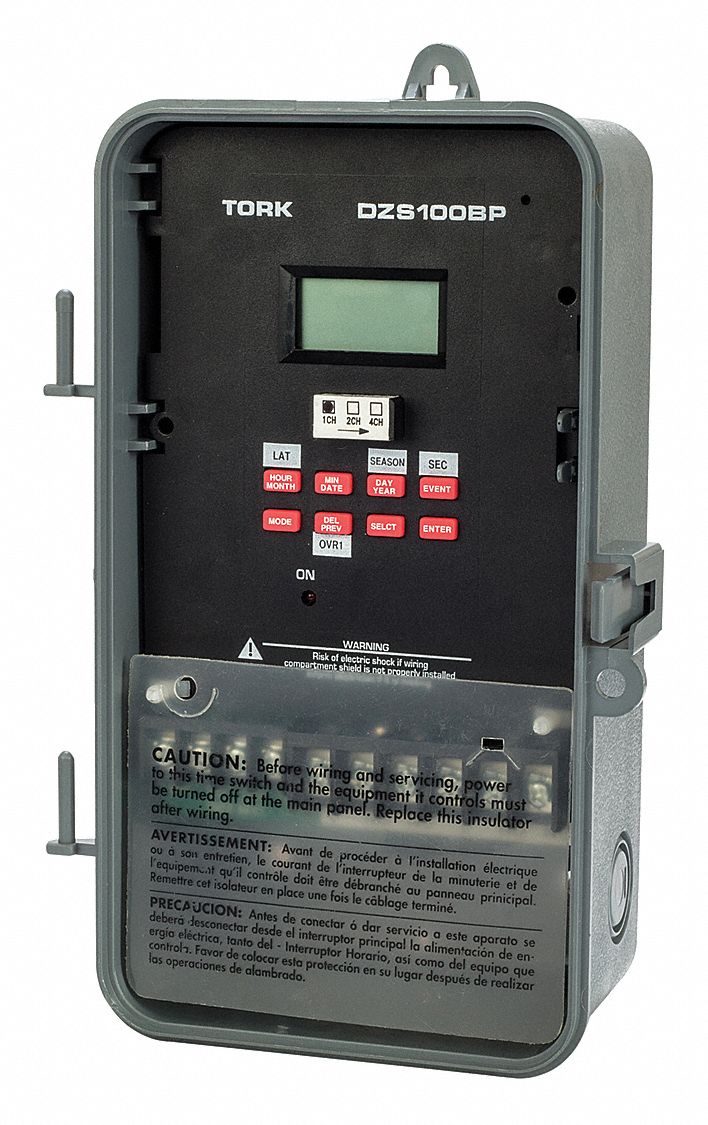

ElectTimer, Astro/Prog, 1 Chan, 365Day, DPDT

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Electronic Timer
Type		Astronomic/Programmable
Number of Channels		1
Number of Poles		2
Contact Form		DPDT
Voltage		120-277
Amps		30
HP @ 120V		1
HP @ 240V		2
Max. On/Off Cycles		99 Astronomic, Offset 299
Min. Time Setting		1 min.
Max. Time Setting		365 Days
Pulse Duration		1 to 99 sec.
Operation Mode		365 Days
NEMA Rating		3R
Enclosure		Noryl Indoor/Outdoor
Color		Tan
Backup Time		7 Days
Operating Temp.		-40 to 158 F
Length (In.)		9-1/8
Depth (In.)		4-1/2
Width (In.)		5
Description/Special Features		Memory Module Supplied for Easy Copy and Transfer of Schedule Between DZS Series Units, Capacitor for Permanent Schedule Retention, Locking Hasp
Standards		UL/CSA, Meets CA Title 24
