Power Transmission
>
Linear Motion
>
Unmounted Linear Bearings

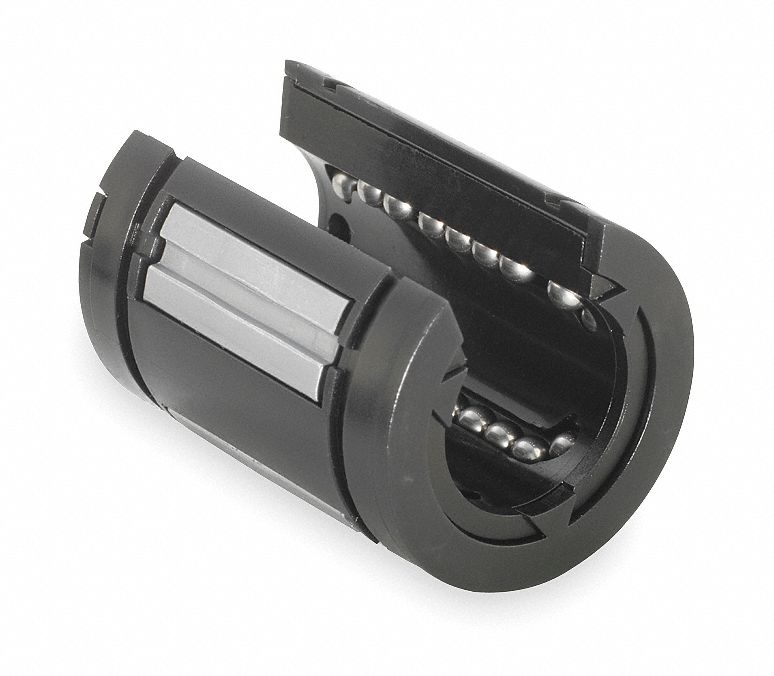

THOMSON Super Ball Bushing, Bore Dia 1.250 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Super Ball Bushing, Open, Bore Dia 1.250 In, Inside Dia Tolerance +/- .001, Outside Dia 2.000 In, Required Housing Bore Dia 2 In, Slot Width 0.620 In, Slot Angle (Degrees) 15, Retention Hole Dia 0.200 In, Retention Hole Location 0.190 In, Between Grooves 2.004 In, Length 2.625 In, Dynamic Load Capacity 1170 Lb, Temp Range 0 - 185 F, Delrin Material, For Use With Thomson Shafting

Grainger Item #	2LEW4
Price (ea.)	$181.00
Brand	THOMSON
Mfr. Model #	SUPER20OPN
UNSPSC #	31171506
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.4
Availability	Typically in Stock
Catalog Page No.	231
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Super Ball Bushing Bearing
Type		Open
Bore Dia.		1.250"
Inside Dia. Tolerance		+/- .001
Outside Dia.		2.0000"
Slot Width (In.)		0.620
Slot Angle (Degrees)		15
Retention Hole Dia. (mm)		0.200"
Retention Hole Location		0.190"
Between Grooves (mm)		2.004"
Length (In.)		2.625
Accelerated Speed		450 Feet/Second
Steady State Speed		10 Feet/Second
Temp. Range (F)		0 - 185
Self-Alignment		Yes
Material		Delrin
Required Housing Bore Dia. (In.)		2
For Use With		Thomson Shafting
