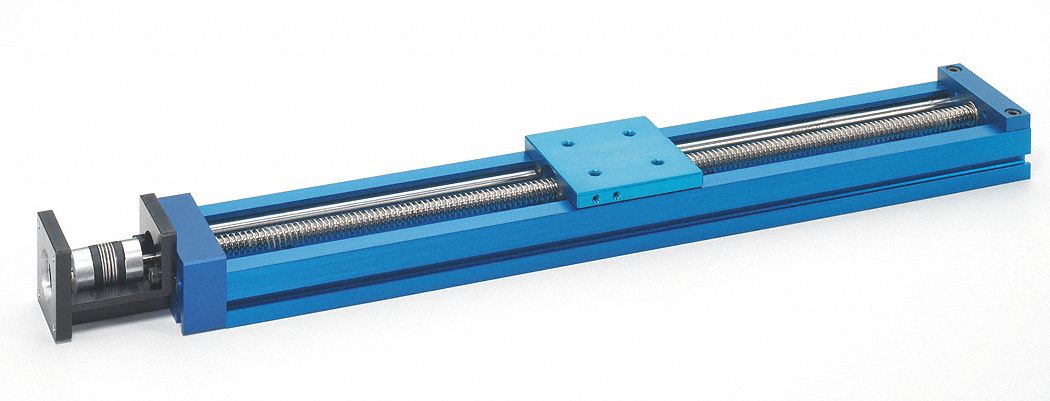

THOMSON Microstage System, Table Length 200 mm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Microstage System, MS25, Lead Screw Drive Type, Max Load 100 N, Max Thrust 44 N, Max Speed 102 mm/Sec, Max Stroke Length 660 mm, Carriage Width 50 mm, Carriage Length 52.50 mm, Base Width 50 mm, Overall Height 25 mm, Slide Table Length 200 mm, Available Stroke 110.50 mm, Motor Shaft Diameter 0.196-0.197 In, Motor Shaft Length 0.760-0.970 In, Includes Coupling and Motor Adapter

Grainger Item #	2HWN8
Price (ea.)	$1,525.00
Brand	THOMSON
Mfr. Model #	MS25LE0N0200-045N505A0A00
UNSPSC #	31251511
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.6
Availability	Item ships within 11 business days from supplier
Catalog Page No.	249
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Microstage System
Type		MS25
Drive Type		Lead Screw
Guide Type		D Ball
Max. Load		100 N
Max. Thrust (N)		44
Max. Roll Moment Mx (N-mm)		1.00
Max. Pitch/Yaw Ma (N-mm)		1.12
Max. Speed (mm/Sec)		102
Max. Stroke Length (mm)		660
Repeatability (mm)		+/-0.005
Accuracy (mm/300mm)		0.20
Carriage Width (mm)		50
Carriage Length (mm)		52.50
Carriage Hole Size (mm)		M3 x .5, 6mm deep
Carriage Mounting Thread Spacing - Length (mm)		42
Carriage Mounting Thread Spacing - Width (mm)		42
Screw Size (mm)		0.250 x 0.250
Base Width (mm)		50
Overall Height (mm)		25
Mounting Hole to End "Y" from motor side(mm)		45
Mounting Hole Center to Center "X" (mm)		42
Mounting Hole Size (mm)		3.40 Thru, 6 Center Bore, 3.50 Deep
Base Mounting Holes Pair Separation (mm)		42
Slide Table Length (mm)		200
Available Stroke (mm)		110.50
Motor Adapter Block Length (mm)		49.50
Motor Adapter Block Height (mm)		39.90
Motor Adapter Block Step (mm)		5.70
Motor Shaft Diameter		0.196-0.1970"
Motor Shaft Length		0.760-0.970"
Motor Bolt Circle Diameter		1.721-1.731"
Motor Mounting Hole		#4-40 tap
Motor Pilot Diameter		0.864-0.866"
Motor Pilot Length		0.010-0.110"
Dynamic Load Capacity (Lb.)		22.5
Temp. Range (F)		32 -185
Rail Material		60 Case Shafting
Carriage Material		Aluminum Alloy (Anodized)
Includes		Coupling and Motor Adapter
