Pneumatics
>
Air Compressors and Vacuum Pumps
>
Piston Air Compressor/Vacuum Pump

THOMAS Air Compressor, 3/4 HP, 3.78 CFM, 115 V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Piston Air Compressor, 3/4 HP, Voltage 115 VAC, 60 Hz, 10.6 Full Load Amps, FNPT Inlet 1/4 In, FNPT Outlet 1/4 In, Max PSI Cont/Int 125/125, Free Air CFM @ 0 PSI 3.78, @ 50 PSI 2.89, @ 100 PSI 1.99, Max Vacuum 25.9 Hg, Free Air CFM @ 0 Vacuum (in Hg) 3.78, @ 20 Vac (in Hg) 0.70, Length 10 3/4 In, Width 6 1/2 In, Height 10 In, Aluminum Cylinder Material, 1 Cylinders, Motor Type Capacitor Start, Sound Rating 70 dba, Oil-less Design, Agency Compliance CSA, UL, Temp Range 50-104 F, Power Cord 6 Ft

Grainger Item #	2KFU9
Price (ea.)	$984.00
Brand	THOMAS
Mfr. Model #	1207PK80
UNSPSC #	40151557
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	27.57
Availability	Limited quantity available
Catalog Page No.	4015
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

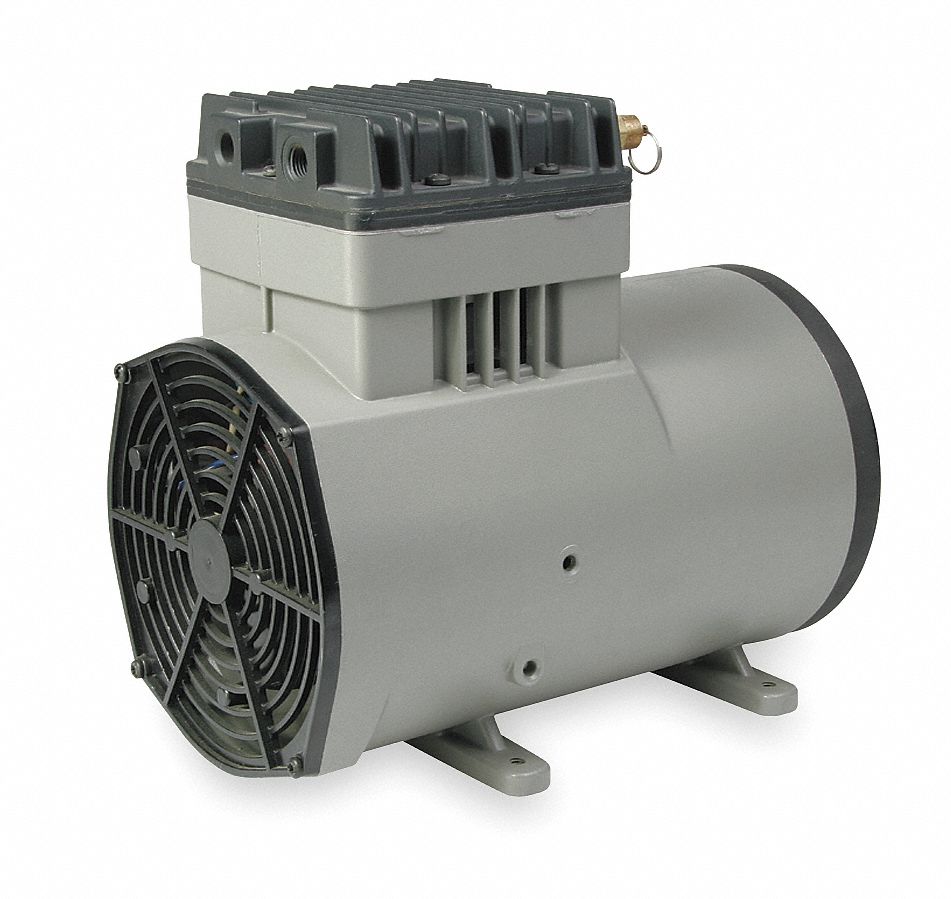

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Piston Air Compressor
HP		3/4
Voltage		115
Hz		60
Full Load Amps		10.6
(F)NPT Inlet (In.)		1/4
(F)NPT Outlet (In.)		1/4
Max. PSI Cont./Int.		125/125
Free Air CFM @ 0 PSI		3.78
Free Air CFM @ 50 PSI		2.89
Free Air CFM @ 100 PSI		1.99
Max. Vacuum (In. Hg)		25.9
Free Air CFM @ 0 Vacuum (in Hg)		3.78
Free Air CFM @ 20 Vac (in Hg)		0.70
Length (In.)		10-3/4
Width (In.)		6-1/2
Height (In.)		10
Cylinder Material		Aluminum
Cylinders		1
Motor Type		Capacitor Start
RPM		1700
Sound Rating		70 dba
Design		Oil-less
Finish		Gray
Rating		Continuous Duty
Valve		Stainless Steel
Agency Compliance		CSA, UL
Bearings		Permanently Lubricated
Compressor Material		Aluminum
Temp. Range		50 to 104F
Thermal Protection		Yes
Power Cord		6 ft.
Application		Coin Vending Machines, Tire Inflation, Business Machines
