Pneumatics
>
Air Compressors and Vacuum Pumps
>
Piston Air Compressor/Vacuum Pump

25 HP, 0.37 CFM

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Compressor/Vacuum Pump, Piston Type, 1/25 HP, Voltage 115 VAC, 60 Hz, 1.3 Amps, Inlet 1/4 In, Outlet 1/4 In, Max Continuous PSI 10, 0.37 CFM @0 PSI, 0.30 CFM @10 PSI, 0.20 CFM @20 PSI, 0.14 CFM @30 PSI, Max Vacuum 18 in Hg, 0.27 CFM @5 in Hg, 0.18 CFM @10 in Hg, 0.1 CFM @15 in Hg, 0.02 CFM @20 in Hg, Length 5 1/4 In, Width 3 In, Height 4 3/8 In, 3000 RPM, Sound Rating 55 dba

Grainger Item #	5BB71
Price (ea.)	$164.25
Brand	THOMAS
Mfr. Model #	010CA26
UNSPSC #	40151502
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	3.61
Availability	Typically in Stock
Catalog Page No.	4015
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

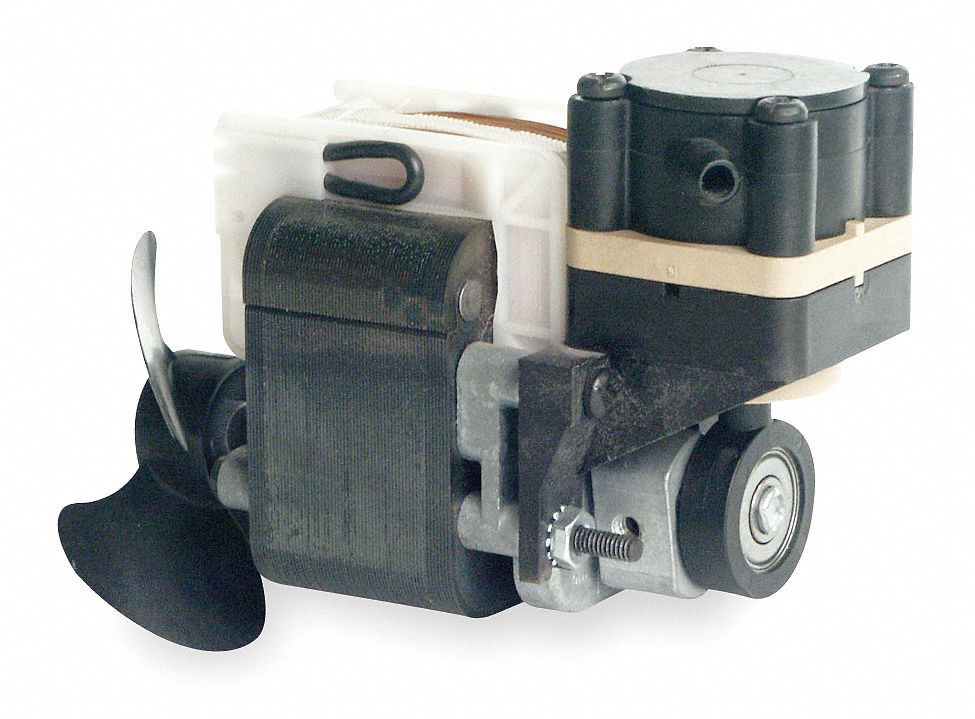

Compressor/Vacuum Pump, 1/25 HP, 0.37 CFM

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Piston Air Compressor/Vacuum Pump
Type		Piston
HP		1/25
Voltage		115
Hz		60
Full Load Amps		1.3
(F)NPT Inlet (In.)		1/4
(F)NPT Outlet (In.)		1/4
Max. PSI Cont./Int.		10/30
Free Air CFM @ 0 PSI		0.37
Max. Vacuum (In. Hg)		18.0
Free Air CFM @ 0 Vacuum (in Hg)		0.37
Length (In.)		5-1/4
Width (In.)		3
Height (In.)		4-3/8
Cylinder Material		Aluminum
Cylinders		1
Motor Type		Shaded Pole with Thermal Protection
RPM		3000
Sound Rating		55 dba
Design		Wob-L Piston
Finish		black
Rating		Continuous Duty
Valve		Flapper
Agency Compliance		none
Bearings		Permanently Lubricated
Compressor Material		lightweight die cast aluminum and plastic components
Temp. Range		104 to 50F
Thermal Protection		yes
Power Cord		no
Application		Nebulizers, Aspirators, Blood Pressure Machines, Air Brushes,Pneumatic Pads, De-Soldering Equipment
