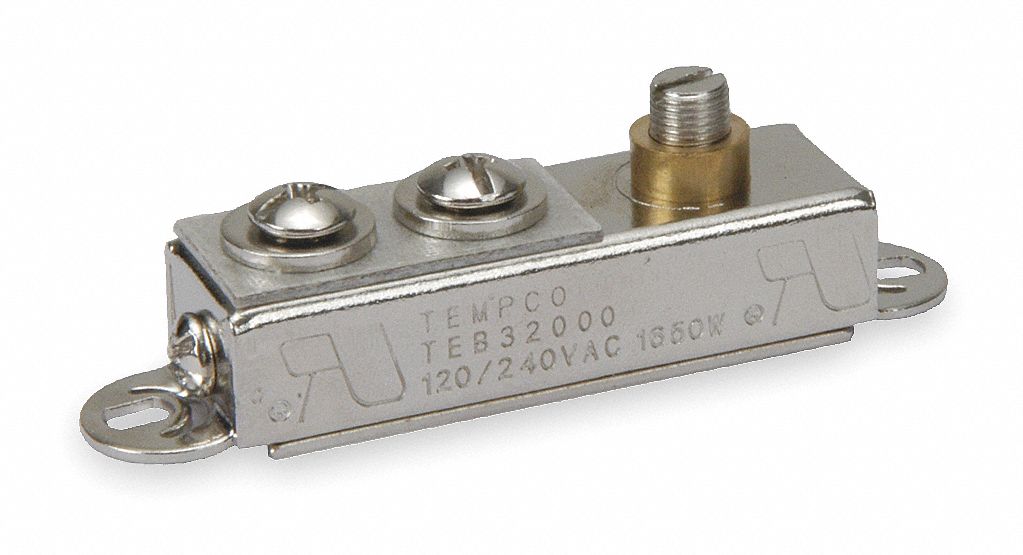

TEMPCO Thermostat-w/Screw Adjust, 50 to 249F

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Thermostat, Screw Adjustment, Switch Type SPST, Switch Action NC- (Opens On Rise), Number of Switches 1, Control Range 50 to 249 F, Height 13/16 In, Width 5/8 In, Overall Length 2 3/4, Temp. Sensitivity +/- 5 Deg F, Sensor Type Bonded Bi-Metal Strip, Adjustable Throttle Range 250 to 399 F, Color Silver, Application Mechanical Conductive Temp Control for Flat Surfaces, Enclosure Type Stainless Steel, Includes #6-32 Screws For Wiring to Unit

Grainger Item #	4TCZ2
Price (ea.)	$29.35
Brand	TEMPCO
Mfr. Model #	TEB32000
UNSPSC #	41112209
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.11
Availability	Typically in Stock
Catalog Page No.	4600
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Line Voltage Thermostat
Type		Screw Adjustment
Switch Type		SPST
Switch Action		Open on Rise
Number of Switches		1
Control Range (F)		50 to 249
Height (In.)		13/16
Width (In.)		5/8
Overall Length		2-3/4
Temp. Sensitivity (Deg. F)		+/- 5
Sensor Type		Bonded Bi-Metal Strip
Characteristics		The Heat Sensitive Base Plate of The Thermostat Must be Mounted In Full Contact With The Heated Surface, Endurance 100,000 Cycles
Adjustable Throttle Range (F)		250 to 399
Color		Silver
Application		Mechanical Conductive Temp Control for Flat Surfaces, Process Heating
Enclosure Type		Stainless Steel
Voltage Range		120 to 240VAC
Contact Rating Resistive @ 120V (A)		13.75
Resistive Amps @ 208VAC		7.93
Contact Rating Resistive @ 240V (A)		6.87
Mounting		Tabs with Holes
Includes		#6-32 Screws For Wiring to Unit
Agency Compliance		cUR
