TELEMECANIQUE LimitSw, GenDuty, Horiz, Steel Roll Plunger

| Write a Review
| Read all Reviews
| Read all Ask & Answer

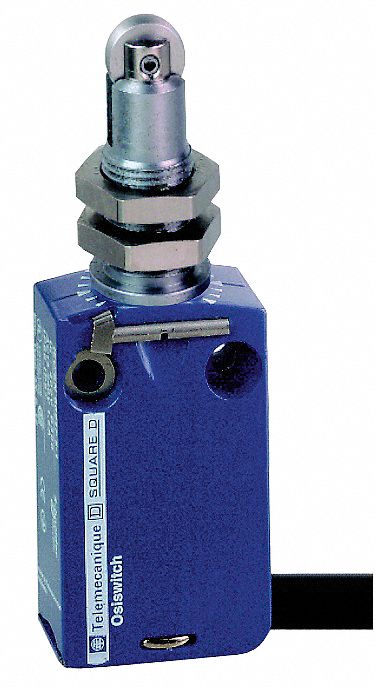

Compact Limit switch, Assembled, General Duty, Height (In.) 3.65, Depth (In.) 0.63, Width (In.) 1.21, Replacement Body ZCMD21L1, Replacement Head ZCEF2, Contact Type 1NO/1NC, Movement Horizontal, Style M12 Threaded Steel Roller Plunger, Voltage 240VAC/250VDC, Amps 6, NEMA Rating NEMA 1/2/4X/6/6P/12/13; IP66/67/68, Operating Temp. Range (F) -13 to 159 Degrees , Operating Force 25.60 oz., Features 1m Integrated Cable, Snap Action, Standards UL # E164353 - CSA # 164581 - CE Marked

Grainger Item #	5WJJ3
Price (ea.)	$183.00
Brand	TELEMECANIQUE
Mfr. Model #	XCMD21F2L1
UNSPSC #	39121509
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.45
Availability	Typically in Stock
Catalog Page No.	415
Country of Origin (Country of Origin is subject to change.)	Indonesia

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
Price shown may not reflect your price. Sign in or register.

LimitSw, GenDuty, Horiz, Steel Roll Plunger

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Miniature Limit Switch
Actuator Style		Plunger
Contact Type		1NO/1NC
Series		Square D XCMD
Width		1.21"
Height		3.65"
Depth		0.63"
Style		M12 Steel Roller Plunger
Amps		6
Operating Force		25.60 oz.
NEMA Rating		1, 2, 4X, 6, 6P, 12, 13; IP68
Description/Special Features		1m Integrated Cable, Snap Action
Replacement Body		ZCMD21L1
Replacement Head		ZCEF2
Type		General Duty
Movement		Horizontal
Voltage		240VAC/250VDC
Operating Temp. Range		-13 Degrees to 158 Degrees F
Standards		UL # E164353 - CSA # 164581 - CE Marked
Cable Length		1m
