TB WOOD'S Shaft Coupling Spacer Insert, WES40 Body

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Shaft Coupling Spacer Insert, MATL Insert Type, WES40 Body Style, Rated Torque 5500 In.-Lb., Max. RPM 3600, Polyether Urethane/Steel Insert Material

Grainger Item #	15E632
Price (ea.)	$628.50
Brand	TB WOOD'S
Mfr. Model #	WES40
UNSPSC #	31163001
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	11.5
Availability	Item ships within 7 business days from supplier
Catalog Page No.	185
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

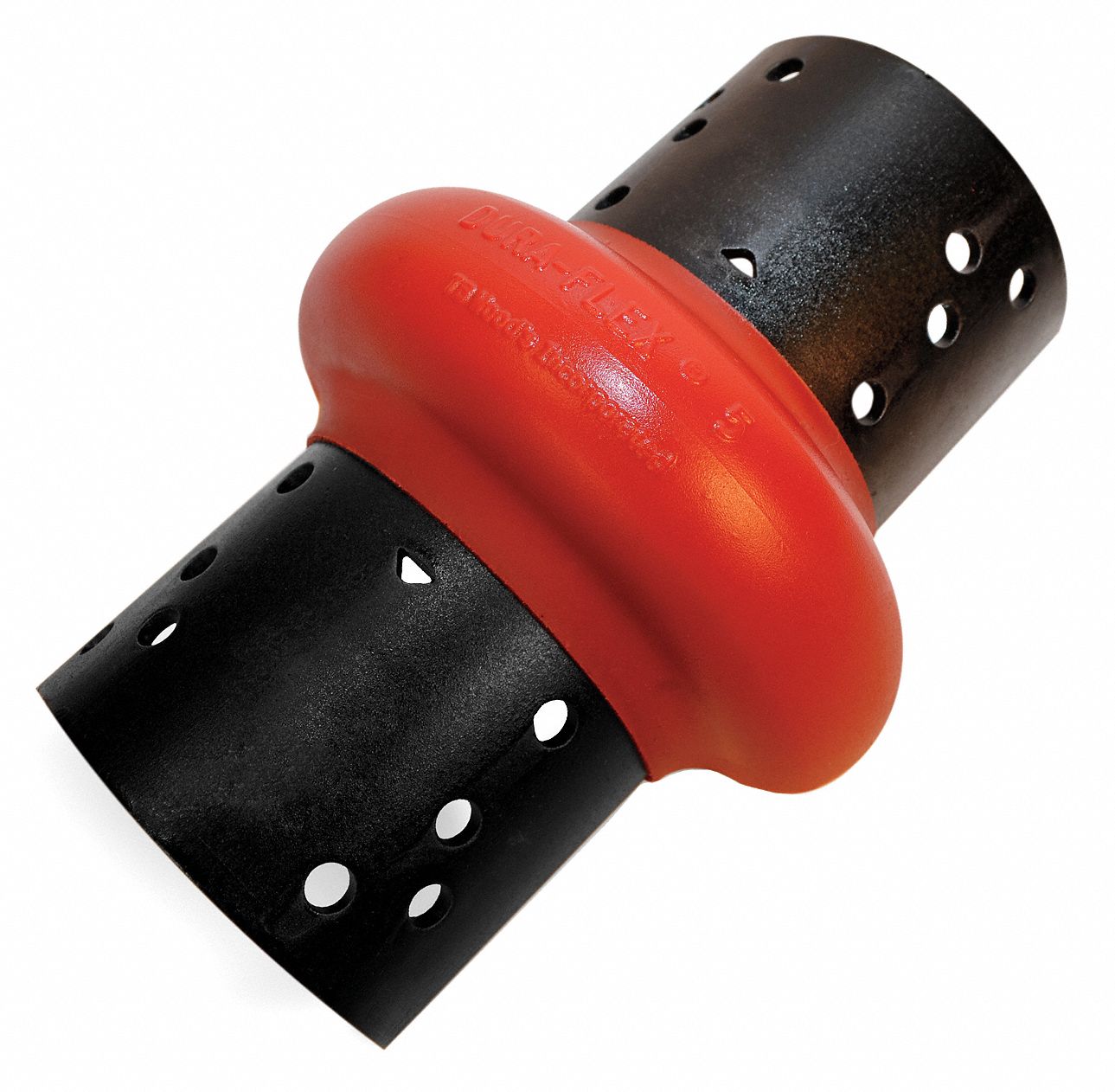

Shaft Coupling Spacer Insert, WES40 Body

Enlarge Image

Item		Shaft Coupling Spacer Insert
Insert Type		MATL
Body Style		WES40
Rated Torque (In.-Lb.)		5500
Max. RPM		3600
HP Rating @ 50 RPM		4.36
HP Rating @ 100 RPM		8.85
HP Rating @ 300 RPM		26.18
HP Rating @ 690 RPM		60.21
HP Rating @ 870 RPM		75.92
HP Rating @ 1150 RPM		100.36
HP Rating @ 1200 RPM		104.72
HP Rating @ 1750 RPM		152.72
HP Rating @ 1800 RPM		157.08
HP Rating @ 3450 RPM		301.07
HP Rating @ 3600 RPM		214.16
Max. HP		436.33
Operating Temp.		-40 to +200
Outside Dia. (In.)		9.71
Length (In.)		9.35
Height (In.)		9.71
Insert Material		Polyether Urethane/Steel
Application		Numerous Industrial Applications, Including Pumps, Motors, Compressors
