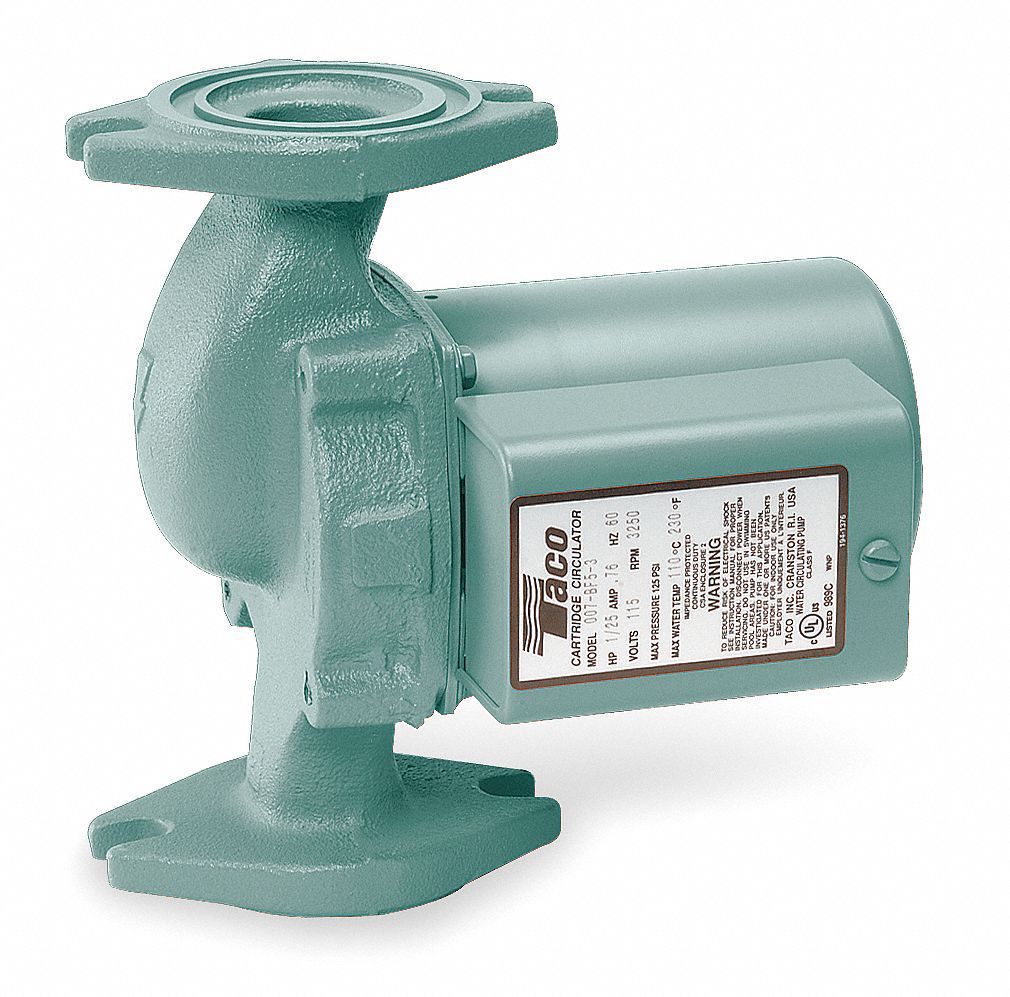

TACO Pump, Circulator, 1/8 HP

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Circulator Pump, Hot Water, 1/8 HP, 1 Phase, Voltage 115, 1.40 Amps, Inlet/Outlet Flanged, Housing Material Cast Iron, Max. Temp. 230 F, Max. Working Pressure 125 PSI, Shut-Off 35 Ft., Impeller Material Polypropylene, Impedance Thermal Protection

Grainger Item #	4PC94
Price (ea.)	$256.75
Brand	TACO
Mfr. Model #	009-F5
UNSPSC #	40151504
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	10.25
Availability	Typically in Stock
Catalog Page No.	4128
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circulator Pump
Type		Closed Loop
HP		1/8
Voltage		115
Phase		1
Amps		1.40
Inlet/Outlet		Flanged
Housing Material		Cast Iron
Face to Face Dimension (In.)		6-3/8
Max. Temp. (F)		230
Max. Working Pressure (PSI)		125
Flange/Union Included		No
Shut-Off (Ft.)		35
Impeller Material		Polypropylene
Thermal Protection		Impedance
GPM of Water @ 1 Ft. of Head		11.3
GPM of Water @ 2 Ft. of Head		11
GPM of Water @ 3 Ft. of Head		10.75
GPM of Water @ 4 Ft. of Head		10.5
GPM of Water @ 5 Ft. of Head		10.25
GPM of Water @ 6 Ft. of Head		10
GPM of Water @ 7 Ft. of Head		9.75
GPM of Water @ 8 Ft. of Head		9.5
GPM of Water @ 9 Ft. of Head		9.25
GPM of Water @ 10 Ft. of Head		9
GPM of Water @ 15 Ft. of Head		8
GPM of Water @ 20 Ft. of Head		6.5
GPM of Water @ 25 Ft. of Head		5
GPM of Water @ 30 Ft. of Head		2.5
Length (In.)		7
Width (In.)		4-1/8
Max. GPM @ Head (Ft.)		11.3 @ 1
Best Efficiency GPM @ Head (Ft.)		6 @ 20
Min. GPM @ Head (Ft.)		2.5 @ 30
Drive Type		Direct
Construction		30 Percentage Glass-filled Polyether Sulfone
FPT (In.)		3/4
Manufacturers Warranty Length		3 years
