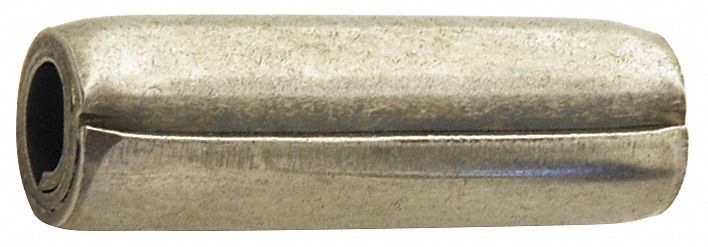

Spring Pin, Coil, 1/4x1 1/2 L, Pk10

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Spring Pin, Coiled, 420 SS, Passivated Finish, Overall Length 1 1/2 In, Nominal Dia 1/4 In, Actual Dia 0.260-0.271 In Min-Max, Chamfer Dia 0.243 In, Chamfer Length Reference 0.065 In, Fits Hole Dia 0.247-0.256 In Min-Max, Length Tolerance +/-0.010 In, Double Shear Strength 4300 lb, Rockwell Hardness Work Hardened, Meets ASME B18.8.2M, Package 10

Grainger Item #	5DY76
Price (pk.)	$15.23
Package Qty.	10
Brand	GRAINGER APPROVED VENDOR
Mfr. Model #	5DY76
UNSPSC #	31163201
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.1
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Spring Pin
Type		Coiled
Material		420 Stainless Steel
Finish		Passivated
Nominal Diameter		1/4"
Overall Length		1-1/2"
Length Tolerance		+/-0.010"
Chamfer Diameter		0.243"
Chamfer Length Reference		0.065"
Actual Dia. (Min.-Max)		0.260-0.271"
Fits Hole Dia. (Min.-Max.)		0.247-0.256"
Double Shear Strength (Lbs.)		4300
Rockwell Hardness		Work Hardened
Meets		ASME B18.8.2M
Package Quantity		10
