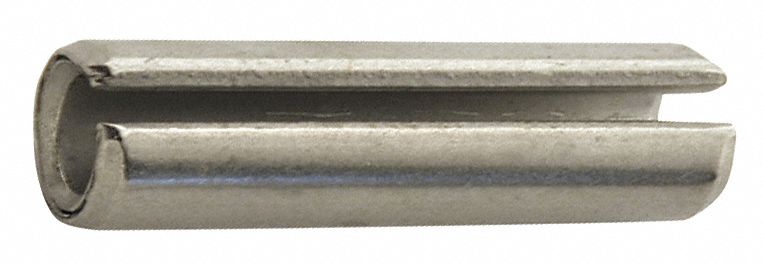

Spring Pin, Slot, 1/4x1 1/2 L, Pk50

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Spring Pin, Slotted, 302 SS, Passivated Finish, Overall Length 1 1/2 In, Nominal Dia 1/4 In, Actual Dia 0.258-0.264 In Min-Max, Chamfer Dia 0.245 In, Chamfer Length Min 0.012 In, Chamfer Length Max 0.065 In, Wall Thickness 0.048 In, Fits Hole Dia 0.250-0.256 In Min-Max, Length Tolerance +/-0.020 In, Double Shear Strength 4100 lb, Rockwell Hardness Work Hardened, Meets ANSI/ASME B18.8.2, Package 50

Grainger Item #	5BY67
Price (pk.)	$24.94
Package Qty.	50
Brand	GRAINGER APPROVED VENDOR
Mfr. Model #	5BY67
UNSPSC #	31163201
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.6
Availability	Typically in Stock
Catalog Page No.	3311
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Spring Pin
Type		Slotted
Material		302 Stainless Steel
Finish		Passivated
Nominal Diameter		1/4"
Overall Length		1-1/2"
Length Tolerance		+/-0.020"
Chamfer Diameter		0.245"
Wall Thickness		0.048"
Chamfer Length (Min.)		0.012"
Chamfer Length (Max.)		0.065"
Actual Dia. (Min.-Max)		0.258-0.264"
Fits Hole Dia. (Min.-Max.)		0.250-0.256"
Double Shear Strength (Lbs.)		4100
Rockwell Hardness		Work Hardened
Meets		ANSI/ASME B18.8.2
Package Quantity		50
