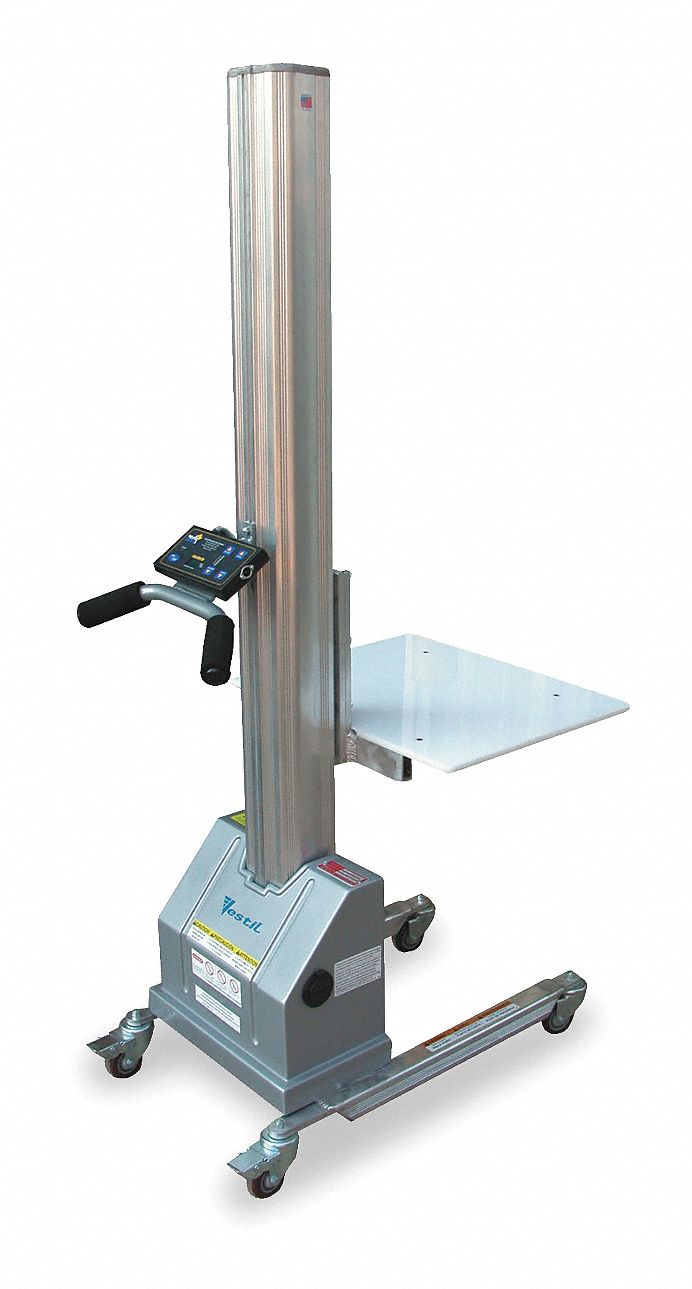

Pltfrm Lift, 125 lb.Cap.86 In H

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Screw Drive Platform Lift, Load Capacity 125 lb., Lifting Height Max. 72 In., Lifting Height Min. 5-1/2 In., Platform Length 18-1/2 In., Platform Width 23-1/2 In., Base Legs Inside Dia. 15 In., Base Legs Outside Dia. 20 In., Overall Length 36 In., Overall Width 20 In., Overall Height 86 In., Load Center 10 In., Lift Speed Loaded Adjustable, Powered By Battery, Lift Speed Unloaded Adjustable, Frame Material Aluminum, Caster Wheel Type (2) Swivel, (2) Swivel Locking

Grainger Item #	1XFD5
Price (ea.)	$3,422.00
Brand	GRAINGER APPROVED VENDOR
Mfr. Model #	PEL-100-A
UNSPSC #	24101604
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	226.0
Availability	Item ships within 3 business days from supplier
Catalog Page No.	1585
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Screw Drive Platform Lift
Load Capacity		125 lb.
Lifting Height Max.		72"
Lifting Height Min.		5-1/2"
Platform Length		18-1/2"
Platform Width		23-1/2"
Base Legs Inside Dia.		15"
Base Legs Outside Dia.		20"
Overall Length		36"
Overall Width		20"
Overall Height		86"
Load Center		10"
Lift Speed Loaded		Adjustable
Powered By		Battery
Lift Speed Unloaded		Adjustable
Frame Material		Aluminum
Front Caster Dia.		5"
Rear Caster Dia.		3"
Front Wheel Dia.		3"
Rear Wheel Dia.		3"
Caster Wheel Type		(2) Swivel, (2) Swivel Locking
Includes		Built In DC Battery and Charger, Touch Pad Control With Battery Level Gauge, White HDPE Platform
