SYSTEM SENSOR Photoelectric Power Board

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Photoelectric Power Board, Smoke Detector, Alarm Current Max 65mA @24VDC/ Max 135mA RMS @24VAC/ Max 35mA RMS @120VAC, Depth (In.) 2-1/2, Height (In.) 5, Length (In.) 7-3/4, Ambient Temp. Limits (F) -4 to 158, Air Velocity (FPM) 100 to 4000, Alarm Aux. Contact @ 250V 10A, Alarm Aux. Contact @ 30VDC 10A, Humidity Range ( Percent RH) 0 to 95, Standby State (mA) Max 21mA @24VDC/ Max 65mA RMS @24VAC/ Max 20mA RMS @120VAC, Voltage 24/120, Standards UL, FM, Includes Power Board

Grainger Item #	35Z776
Price (ea.)	$96.35
Brand	SYSTEM SENSOR
Mfr. Model #	D4P120
UNSPSC #	46191505
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.9
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

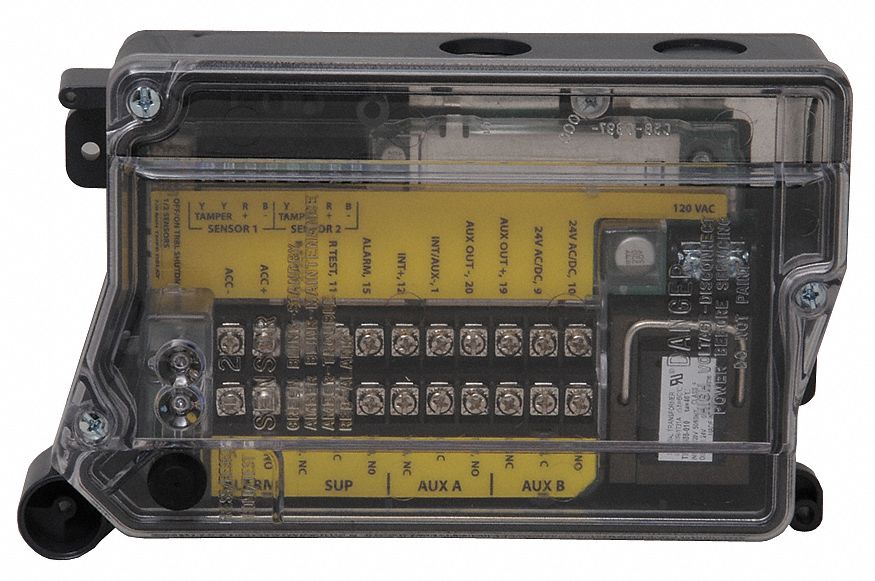

Item		Photoelectric Power Board
Type		Smoke Detector
Alarm Current		Max 65mA @24VDC/ Max 135mA RMS @24VAC/ Max 35mA RMS @120VAC
Depth (In.)		2-1/2
Height (In.)		5
Length (In.)		7-3/4
Ambient Temp. Limits (F)		-4 to 158
Air Velocity (FPM)		100 to 4000
Alarm Aux. Contact @ 250V		10A
Alarm Aux. Contact @ 30VDC		10A
Humidity Range (% RH)		0 to 95
Number Required		1
Standby State (mA)		Max 21mA @24VDC/ Max 65mA RMS @24VAC/ Max 20mA RMS @120VAC
Voltage		24/120
Standards		UL, FM
Includes		Power Board
For Use With		Mfr. No. D4P120, RTS2, DST Sampling Tubes
Package Quantity		1
