SUMITOMO Coated Carbide Insert, CNMG643EMU-AC820P

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Coated Carbide Insert, 0 Degrees , 80 Degrees Diamond, Style CNMG, Insert Size 0.750 In, Chip-Breaker EMU, Grade AC820P, Application Roughing, Workpiece Material Steel and Stainless, Inscribed Circle 3/4 In, Insert Thickness 0.063 In, Nose Radius 0.047 In, Coating Super FF TiCN/Al2O3/TiN CVD, Cutting Direction Neutral, Mounting Hole Dia. 0.313, Mounting Style Clamp, Rake Positive, No. of Edges 4, ISO Number CNMG190612NMU-AC820P, ANSI Number CNMG643EMU-AC820P. Only shipped in quantities of 10.

Grainger Item #	4KAA7
Price (ea.)	$26.25
Brand	SUMITOMO
Mfr. Model #	CNMG643EMU-AC820P
UNSPSC #	23171618
Ship Qty.	10
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.06
Availability	Typically in Stock
Catalog Page No.	3627
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Price shown may not reflect your price. Sign in or register.

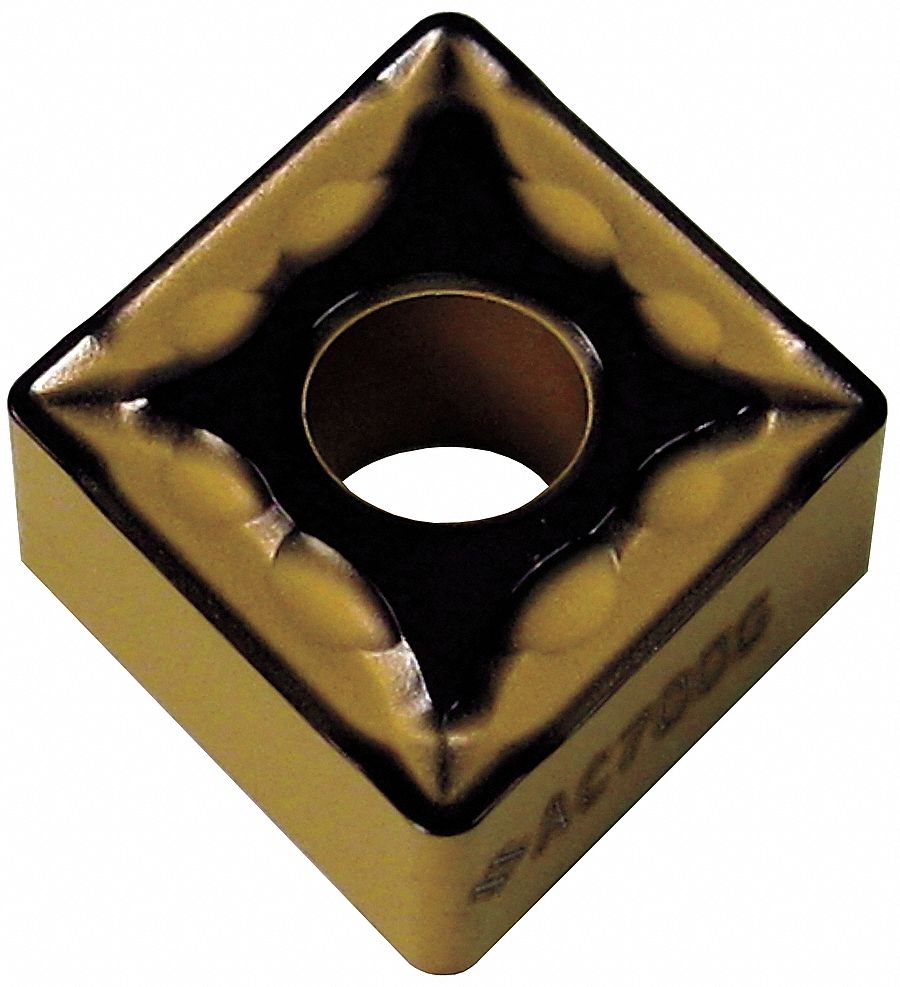

Coated Carbide Insert, CNMG643EMU-AC820P

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Coated Carbide Insert
Relief Angle		0 Degrees
Insert Shape		80 Deg Diamond
Style		CNMG
Insert Size		0.750"
Chip-Breaker		EMU
Grade		AC820P
Application		Roughing
Workpiece Material		Steel/Stainless Steel
Inscribed Circle		0.750"
Insert Thickness		0.0625"
Nose Radius		0.0472"
Coating		Super FF TiCN/Al2O3/TiN CVD
Cutting Direction		Neutral
Mounting Hole Dia.		0.313
Mounting Style		Clamp
Rake		Positive
No. of Edges		4
ISO Number		CNMG190612NMU-AC820P
ANSI Number		CNMG643EMU-AC820P
For Use With		DCLN, MCLN, Toolholders, A-MCLN Boring Bars
