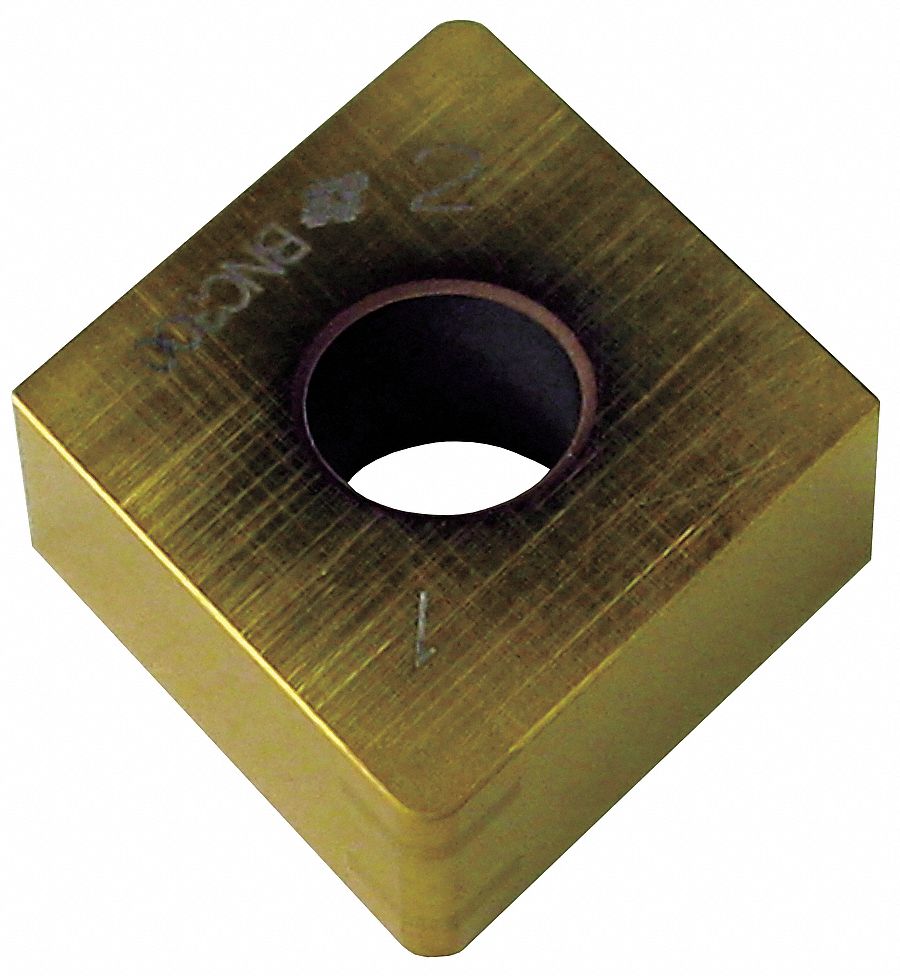

SUMITOMO CBN Turning Insert, 4NCCNGA433-BNC300

| Write a Review
| Read all Reviews
| Read all Ask & Answer

CBN Turning Insert, 0 Degrees , 80 Degrees Diamond, Style CNGA, Insert Size 0.500 In, Grade BNC300, Application Interrupted-Hard Turning, Workpiece Material Hardened Steel, Inscribed Circle 1/2 In, Insert Thickness 0.188 In, Nose Radius 0.047 In, Coating Ceramic-Based TiAlN, Cutting Direction Neutral, Mounting Hole Dia. 0.203, Mounting Style Clamp, Rake Positive, No. of Edges 4, ISO Number 4NCCNGA120412-BNC300, ANSI Number 4NCCNGA433-BNC300

Grainger Item #	4MRG3
Price (ea.)	$137.35
Brand	SUMITOMO
Mfr. Model #	4NCCNGA433-BNC300
UNSPSC #	23171618
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.06
Availability	Typically in Stock
Catalog Page No.	3625
Country of Origin (Country of Origin is subject to change.)	Japan

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Coated CBN Insert
Relief Angle		0 Degrees
Insert Shape		80 Deg Diamond
Style		CNGA
Insert Size		0.500"
Chip-Breaker		MULTI-TIP (4)
Grade		BNC300
Application		Interrupted-Hard Turning
Workpiece Material		Hardened Steel
Inscribed Circle		0.500"
Insert Thickness		0.1875"
Nose Radius		0.0472"
Coating		Ceramic-based TiAlN
Cutting Direction		Neutral
Mounting Hole Dia.		0.203
Mounting Style		Clamp
Rake		0 Degrees
No. of Edges		4
ISO Number		4NCCNGA120412-BNC300
ANSI Number		4NCCNGA433-BNC300
For Use With		DCLN, MCLN, Toolholders, A-MCLN Boring Bars
