Electrical
>
Starters and Contactors
>
Mercury Displacement Contactors

STRUTHERS-DUNN Relay, Mercury Displacement, 35A, 120VAC

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Mercury Displacement Contactor, Contact Form 3PST, Number of Poles 3, Contact Amp Rating (Resistive) 35A, Contact Material Liquid Mercury, Mounting Position Vertical within 10 Degrees , HP @ 1 Phase - 120V 5, HP @ 1 Phase - 240V 5, HP @ 3 Phase - 240V 7-1/2, HP @ 3 Phase - 480V 10, HP @ 3 Phase - 600V 10, Coil Volts 120VAC, Coil VA Rating 7 to 28, Hz 50/60, Height 4.98 In., Width 3.75 In., Depth 3.39 In.

Grainger Item #	12N670
Price (ea.)	$264.25
Brand	STRUTHERS-DUNN
Mfr. Model #	M35AAA-120VAC
UNSPSC #	39121529
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.45
Availability	Typically in Stock
Catalog Page No.	349
Country of Origin (Country of Origin is subject to change.)	USA
California Proposition 65

See Compliance & Restrictions for important safety & regulatory information.
Qty.
Add Grainger TripleGuard® repair & replacement coverage for $55.95 each.
Price shown may not reflect your price. Sign in or register.

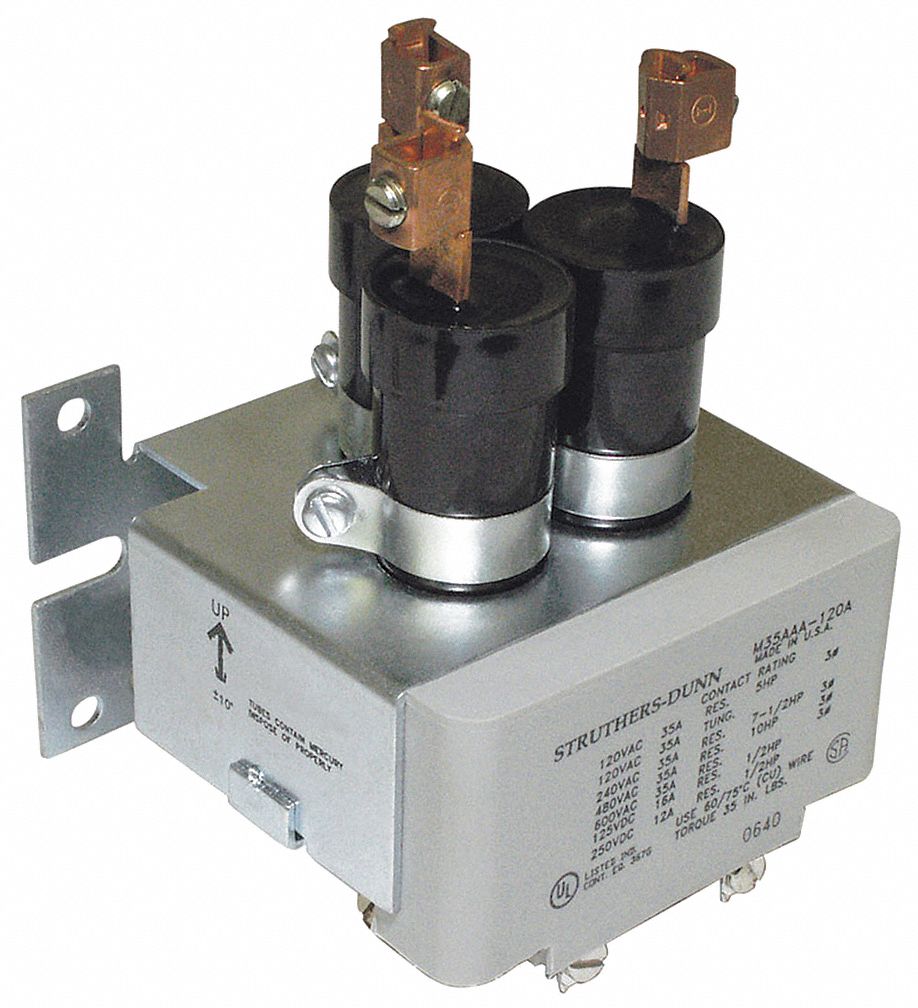

Relay, Mercury Displacement, 35A, 120VAC

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Mercury Displacement Contactor
Contact Form		3PST
Number of Poles		3
Contact Amp Rating (Resistive)		35A
Contact Material		Liquid Mercury
Mounting Position		Vertical within 10 Degrees
HP @ 1 Phase - 120V		5
HP @ 1 Phase - 240V		5
HP @ 3 Phase - 240V		7-1/2
HP @ 3 Phase - 480V		10
HP @ 3 Phase - 600V		10
Coil Volts		120VAC
Coil VA Rating		7 to 28
Hz		50/60
Height		4.98"
Width		3.75"
Depth		3.39"
Features		Hermetic Seal, High Dielectric Withstanding Voltage, Long Operating Life, Quite Operation
Standards		UL/CSA

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

	Item #	Description	Brand Mfr. Model #	Availability	Price
	12N665	Relay, Mercury Displacement, 35A, 120VAC >More Details... Country of Origin: USA	STRUTHERS-DUNN M35A-120VAC	Typically in Stock	$111.00
	Be the First to Write a Review


Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.

	12N667	Relay, Mercury Displacement, 35A, 120VAC >More Details... Country of Origin: USA	STRUTHERS-DUNN M35AA-120VAC	Typically in Stock	$185.00
	Be the First to Write a Review


Add Grainger TripleGuard® repair & replacement coverage for $35.95 each.
