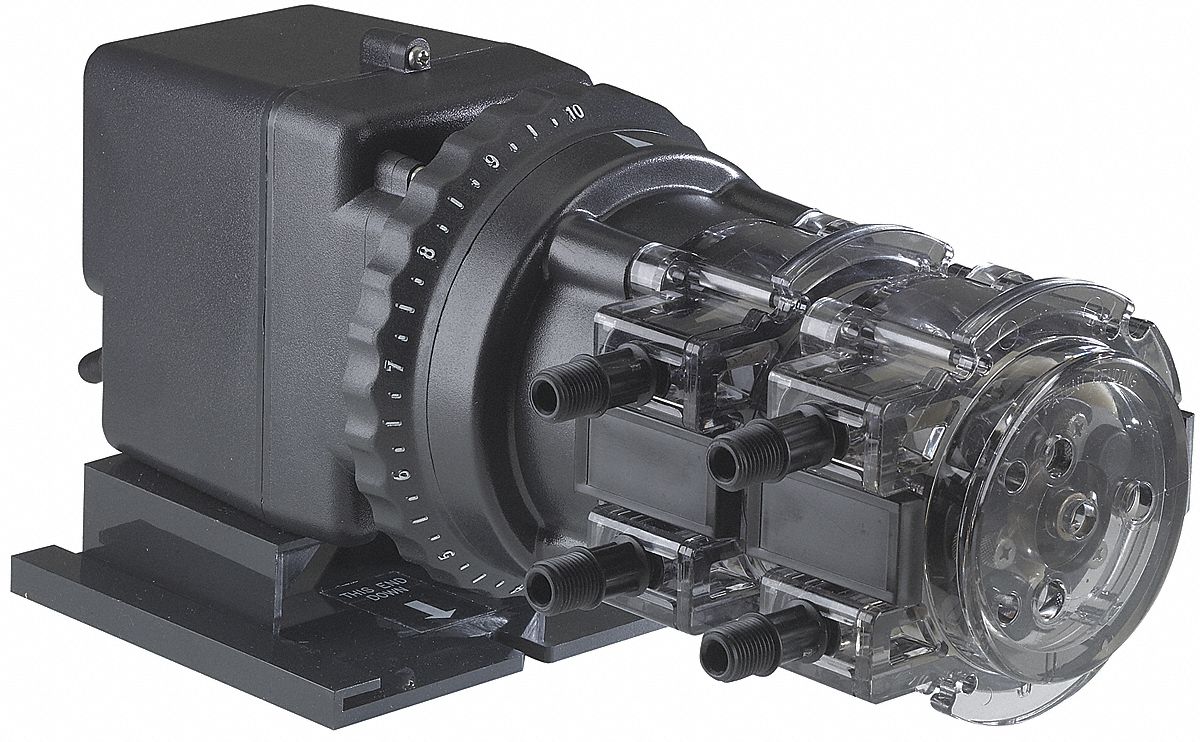

STENNER Metering Pump, 170 GPD, 25PSI

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Peristaltic Metering Pump, Max Feed Rate 170 GPD, Max Pressure 25 PSI, Suction Lift 25 Ft, Turn Down Ratio 20:1, Volts 115, Output Control Feed Rate Control, Motor Power 1/30 HP, Motor RPM 44, Mounting Vertical/Horizontal Position, Max Flow 170 GPD, Tubing Material Santoprene, Self-Priming, De-Gassing Automatic, Allows Trouble-Free Metering of Hypochlorite, Peroxide, and Other Gas-Producing Solutions, Can run dry without damaging pump

Grainger Item #	4NA16
Price (ea.)	$713.50
Brand	STENNER
Mfr. Model #	170JL5A1STG1
UNSPSC #	41105105
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	9.8
Availability	Typically in Stock
Catalog Page No.	4093
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Peristaltic Metering Pump
Type		Adjustable Double Head
Max. Flow (GPD)		170
Max. Pressure (PSI)		25
Max. Viscosity		1500 CPS
Voltage		115
Motor HP		1/30
Self-Priming		Yes
Suction Lift (Ft.)		25
Reproducibility (%)		+/-2
Turn Down Ratio		20:1
Motor RPM		44
Body Material		Polycarbonate
Tubing Material		Polyethylene
Head and Fitting Material		Polycarbonate
Height (In.)		6.0
Length (In.)		12.7
Width (In.)		5.3
Number of Feeds		2
Power Cord		6 ft.
Min. Flow Rate (GPD)		8.5
Max. Flow (GPH)		7.08
Description/Special Features		Valveless, Nonclogging, Feed Rate Output Control
Compliance		NSF 50
Standards		NSF 50
Includes		20 Feet Tubing, Connection Nuts/Ferrules, Spare Peristaltic Tube And Injection Check Valve

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

Optional Accessories

More Accessories

Replacement Tube Kit, # 5

Brand:

STENNER

Grainger Item #:

4NA27

Price (ea.):

$43.55

Item #	Description	Brand Mfr. Model #	Availability	Price
4NA27	Replacement Tube Kit, # 5 >More Details... Country of Origin: USA	STENNER UCCP205	Typically in Stock	$43.55
Be the First to Write a Review



2MWF3	Tubing, 20 Ft L, 1/8 ID, 1/4 OD >More Details... Country of Origin: USA	STENNER AK4002W	Typically in Stock	$13.70
Be the First to Write a Review



2MWF4	Feed Rate Control Service Kit >More Details... Country of Origin: USA	STENNER FSK100	Typically in Stock	$62.80
Be the First to Write a Review



2MWF6	Gear Case Service Kit, 85 and 170 Series >More Details... Country of Origin: USA	STENNER GSK85A	Typically in Stock	$113.25
Be the First to Write a Review



2MWF7	Motor Service Kit 120V/60Hz >More Details... Country of Origin: USA	STENNER MSK120	Typically in Stock	$121.90
Be the First to Write a Review

	Item #	Description	Brand Mfr. Model #	Availability	Price
	4NA15	Metering Pump, 85 GPD, 25 PSI >More Details... Country of Origin: USA	STENNER 85MJL5A1STG1	Typically in Stock	$556.50
	Be the First to Write a Review
