Hardware
>
Latches, Hasps, and Hinges
>
Hinges

STANLEY Hinge, Steel, Finish Satin Chrome, H 4 1/2

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hinge, Concealed Bearing, Bearing Type Concealed Bearing, Material Steel, Color Dull Chrome, Finish Dull Chrome, Height 4-1/2 In., Length 4-1/2 In., Width 4-1/2 In., Pin Dia. 5/16 In., Pin Material Steel, Door Thickness 2 In., Range of Motion -, Thickness 0.134 In., Holes per Leaf 4, Pin Type NRP, Corners Square, Door Leaf Length 4-1/2 In., Door Leaf Width 1-25/32 In., Frame Leaf Length 4-1/2 In., Frame Leaf Width 1-25/32 In., Leaf Thickness 0.134 In., Load Capacity 175 lb.

Grainger Item #	5GJR6
Price (ea.)	$51.40
Brand	STANLEY
Mfr. Model #	458853
UNSPSC #	31162403
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.03
Availability	Typically in Stock
Catalog Page No.	3089
Country of Origin (Country of Origin is subject to change.)	China

Qty.
Price shown may not reflect your price. Sign in or register.

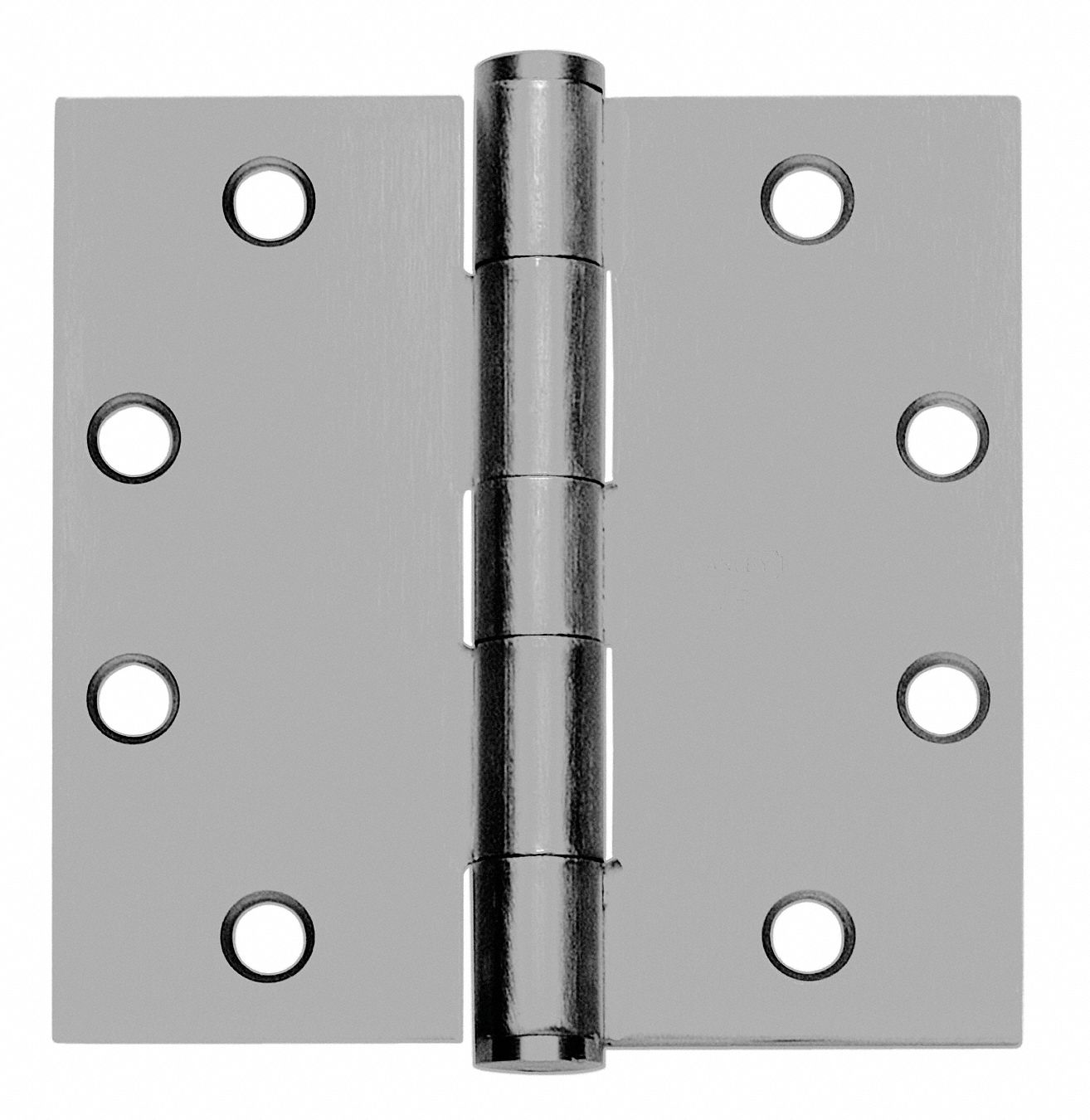

Hinge, Steel, Finish Satin Chrome, H 4 1/2

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hinge
Type		Concealed Bearing
Bearing Type		Concealed Bearing
Material		Steel
Color		Dull Chrome
Finish		Dull Chrome
Height		4-1/2"
Length		4-1/2"
Width		4-1/2"
Pin Dia.		5/16"
Pin Material		Steel
Door Thickness		2"
Thickness		0.134"
Holes per Leaf		4
Pin Type		NRP
Corners		Square
Door Leaf Length		4-1/2"
Door Leaf Width		1-25/32"
Frame Leaf Length		4-1/2"
Frame Leaf Width		1-25/32"
Leaf Thickness		0.134"
Load Capacity		175 lb.
Stanley Class Number		CB179NRP
Stanley EDP Number		458853
Standards		ANSI / BHMA
Includes		Hardware
