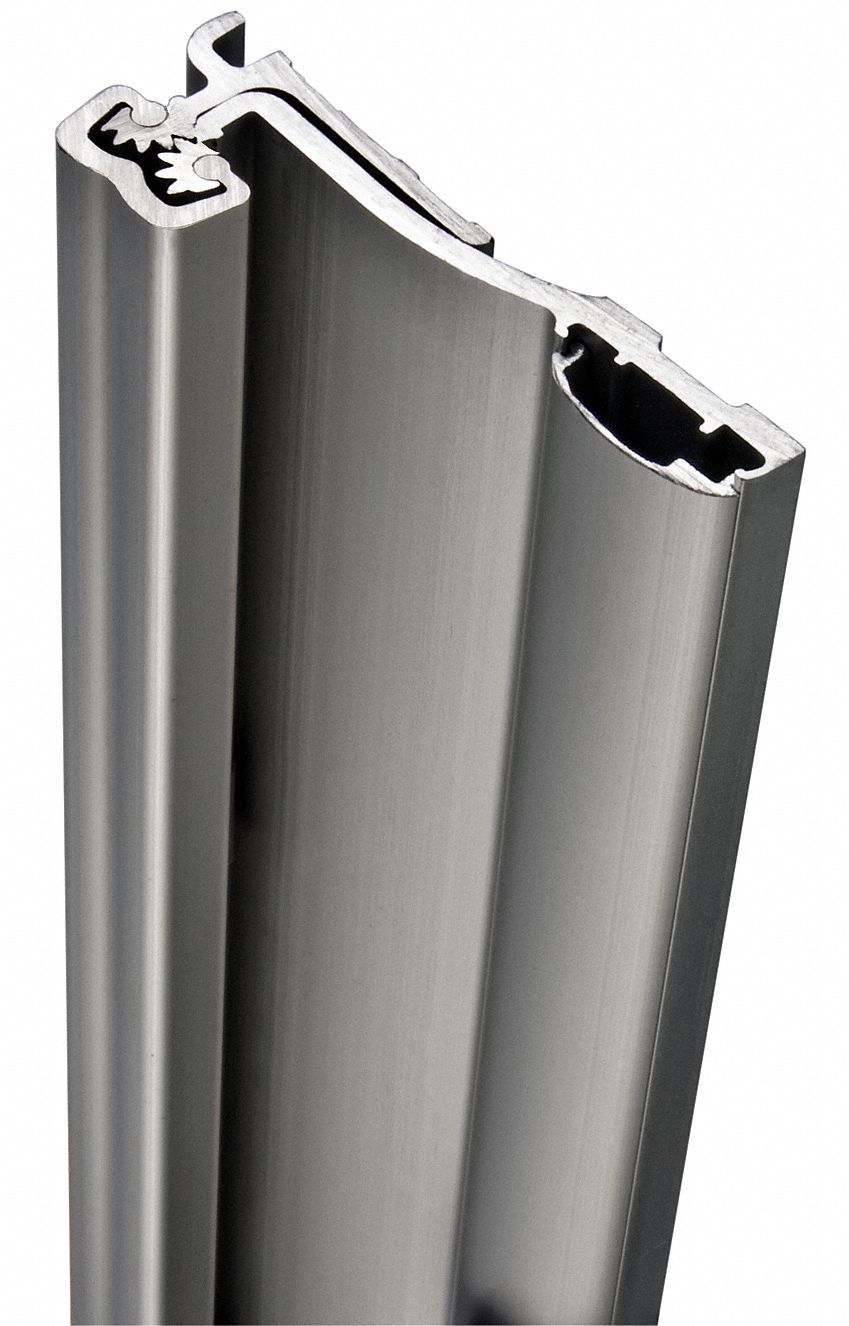

STANLEY Continuous Geared Hinge, Bronze, 79 In.

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Continuous Geared Hinge, Fire-Rated, Bearing Type Concealed, Material Aluminum, Color Dark Bronze, Finish Anodized, Height 79 In., Length 6.58 ft., Width 2-1/32 In., Pin Material -, Door Thickness 1-3/8 to 1-3/4 In., Range of Motion 180 Degrees, Thickness 2-1/32 In., Holes per Leaf 10 and 18, Pin Type -, Corners Square, 34 Holes, Door Leaf Length 79 In., Door Leaf Width 2-1/32 In., Frame Leaf Length 79 In., Frame Leaf Width 1-15/16 In., Leaf Thickness 0.1875 In., Load Capacity 600 lb.

Grainger Item #	5MPZ4
Price (ea.)	$368.50
Brand	STANLEY
Mfr. Model #	477752
UNSPSC #	31162403
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	10.94
Availability	Item ships within 4 business days from supplier
Catalog Page No.	3095
Country of Origin (Country of Origin is subject to change.)	South Korea

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Continuous Geared Hinge
Type		Fire-Rated
Bearing Type		Concealed
Material		Aluminum
Color		Dark Bronze
Finish		Anodized
Height		79"
Length		6.58 ft.
Width		2-1/32"
Door Thickness		1-3/8 to 1-3/4"
Range of Motion		180 Degrees
Thickness		2-1/32"
Holes per Leaf		10 and 18
Corners		Square
Holes		34
Door Leaf Length		79"
Door Leaf Width		2-1/32"
Frame Leaf Length		79"
Frame Leaf Width		1-15/16"
Leaf Thickness		0.1875"
Load Capacity		600 lb.
Stanley Class Number		663
Stanley EDP Number		47-7752
Standards		ANSI/BHMA A156.26-1996
Mounting		Half Surface
For Use With		Use In Retrofit Applications
Includes		Hardware
