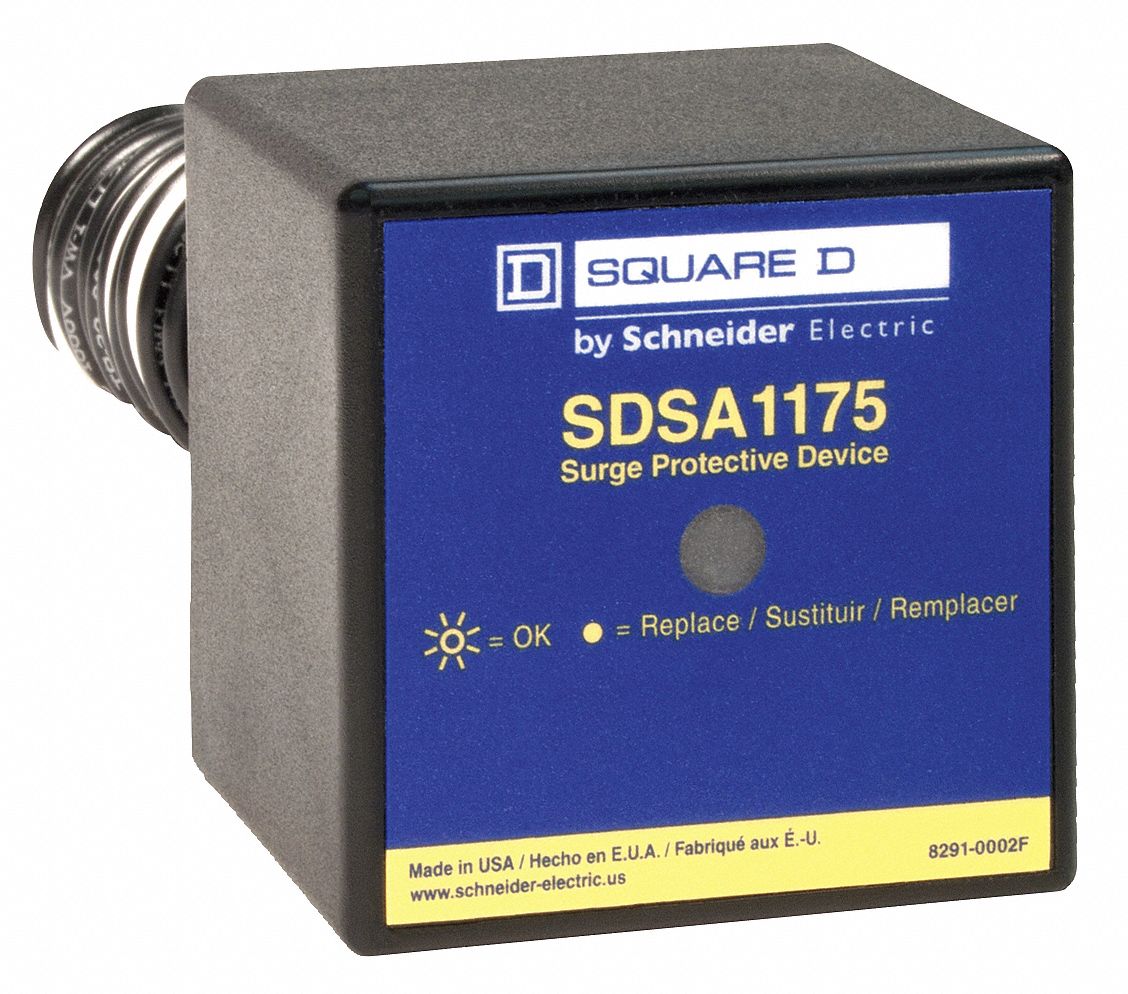

SQUARE D SPD 1 Phase

| Write a Review
| Read all Reviews(1)
| Read all Ask & Answer

Surge Protection Device, Hard-Wired, Location Type 1, Nominal Discharge Current 10kA, Voltage 120/240, Phase 1S, Wire 3, Number of Poles 2, Max. Surge Current Per Phase 36kA, Max. Surge Current Per Mode 36kA, Max. Continuing Operating Voltage 150, Voltage Protection Rating 700 V (L-N), 1200 V (L-L), Short Circuit Current Rating 25kA, Modes of Protection 3, Mounting Style Nipple Mount, Material of Construction Plastic, Enclosure Type NEMA 4XWire Gauge #14 AWGLength 2.25 In., Width 2.25 In.

Grainger Item #	3XB86
Price (ea.)	$69.40
Brand	SQUARE D
Mfr. Model #	SDSA1175
UNSPSC #	39121610
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.6
Availability	Typically in Stock
Catalog Page No.	301
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $16.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Surge Protection Device
Type		Hard-Wired
Location Type		1
Nominal Discharge Current		10kA
Voltage		120/240
Phase		1S
Wire		3
Number of Poles		2
Max. Surge Current Per Phase		36kA
Max. Surge Current Per Mode		36kA
Max. Continuing Operating Voltage		150
Voltage Protection Rating		700 V (L-N), 1200 V (L-L)
Short Circuit Current Rating		25kA
Modes of Protection		3
Mounting Style		Nipple Mount
Material of Construction		Plastic
Enclosure Type		NEMA 4X
Wire Gauge		#14 AWG
Length		2.25"
Width		2.25"
Depth		2.69"
Standards		UL 1449 3rd Ed, CSA C22.4
Includes		LED Indicator
