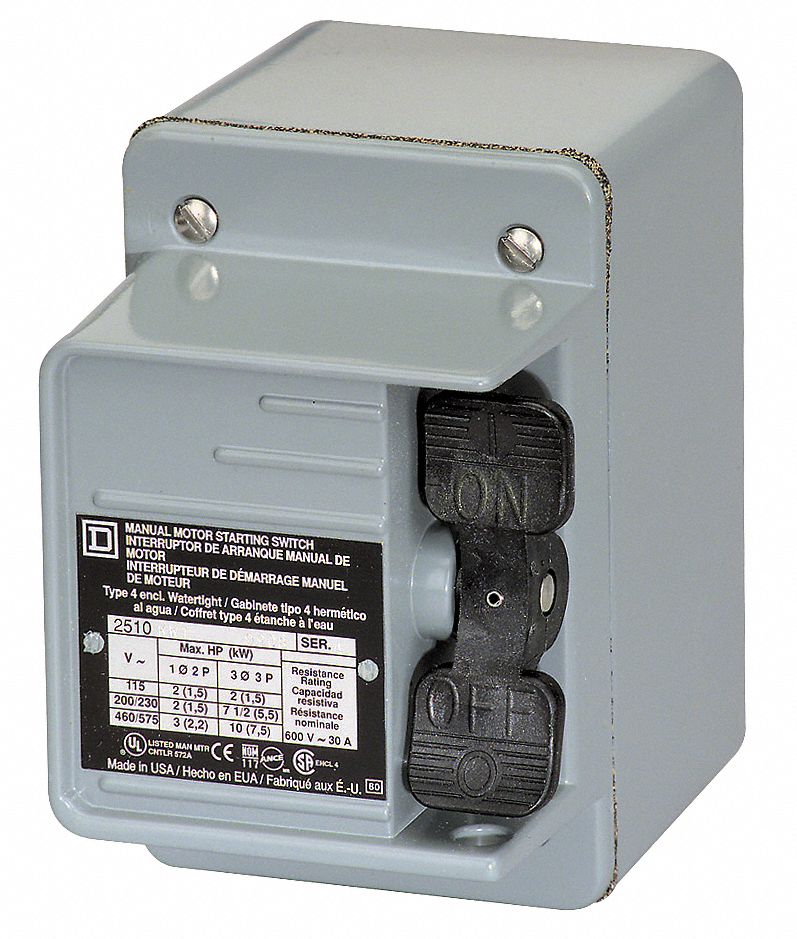

SQUARE D Switch, Manual, 3 Pole

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Non Reversing Manual Switch, Number of Poles 3, Maximum Current Rating 30 Amps, NEMA Class 4, Enclosure Size Standard, Enclosure NEMA 4, Resisitve Current 30 Amps, Maximum Power 10 HP, Power Rating @ 115 VAC Single Phase 2 HP, Maximum Power @ 90 VDC 1 HP, Power Rating @ 115 VDC 2 HP, Power Rating @ 230 VDC 1.5 HP, Power Rating @ 230 VAC Three Phase 7.5 HP, Power Rating @ 460-575 VAC Three Phase 10 HP, AC Voltage 230/460 Volts, Phase Three, Length 4 1/4 Inches, Height 4 1/4 Inches, Toggle

Grainger Item #	1H409
Price (ea.)	$313.50
Brand	SQUARE D
Mfr. Model #	2510KW2
UNSPSC #	39121521
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.75
Availability	Typically in Stock
Catalog Page No.	319
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Manual Motor Switch
Amps AC		30
NEMA Type		NEMA 4
Number of Poles		3
Height (In.)		4-1/4
Width (In.)		3
Depth (In.)		4-1/4
HP @ 1 Phase - 115V		2
HP @ 115VDC		2
HP @ 230VDC		1-1/2
HP @ 3 Phase - 230V		7.5
HP @ 3 Phase - 460-575V		10

Product Reviews Disclaimer:
Grainger is neither responsible for, nor does it endorse, the content of any product review or statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, correctness, currentness, suitability, or validity of any product review or statements posted, including those posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such product review or statements. Use of any linked web site provided in a product review or post is at the user's own risk.
Ask and Answer Disclaimer:
Grainger is neither responsible for, not does it endorse, the content of any statement posted. Any statements posted constitute the statements of the poster and are not the statements of Grainger. The statements posted by Grainger employees with the Grainger employee badge represent the views of such employees and are not the statements of Grainger. Grainger makes no representations as to the appropriateness, accuracy, completeness, coreectness, currentness, suitability, or validity of any statements posted, including statements posted by employees with the Grainger employee badge, and is not liable for any losses, injuries or damages which may result from any such statements. Use of any linked web site provided in a post is at the user's own risk. This site should not replace the use by you of any technical product manual or other professional resource or adviser available to you.

The source for the answers given by Grainger in Ask and Answer are based on the information provided with the question, which may not be complete or may not apply to other situations, and based on product literature and informational materials, the content of which is provided by Grainger's product suppliers. Grainger disclaims liability for any information it provides in Ask and Answer which later may be alleged or determined by a court of law to be inaccurate or incorrect. The answers given by Grainger in Ask and Answer are not intended to replace or supplement any professional, engineering or other consultation services available to its product users. Always read, understand, and follow the product information and instructions provided by the manufacturer.

Return To Top

	Item #	Description	Brand Mfr. Model #	Availability	Price
	2BW06	Switch, Manual, 3 Pole >More Details... Country of Origin: Mexico	SQUARE D 2510KW2H	Typically in Stock	$346.50
	Be the First to Write a Review


Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.

	2MNH3	Manual Switch, NEMA 4, 2P, 30A, 600V >More Details... Country of Origin: Mexico	SQUARE D 2510KW1B	Typically in Stock	$362.00
	Be the First to Write a Review


Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
