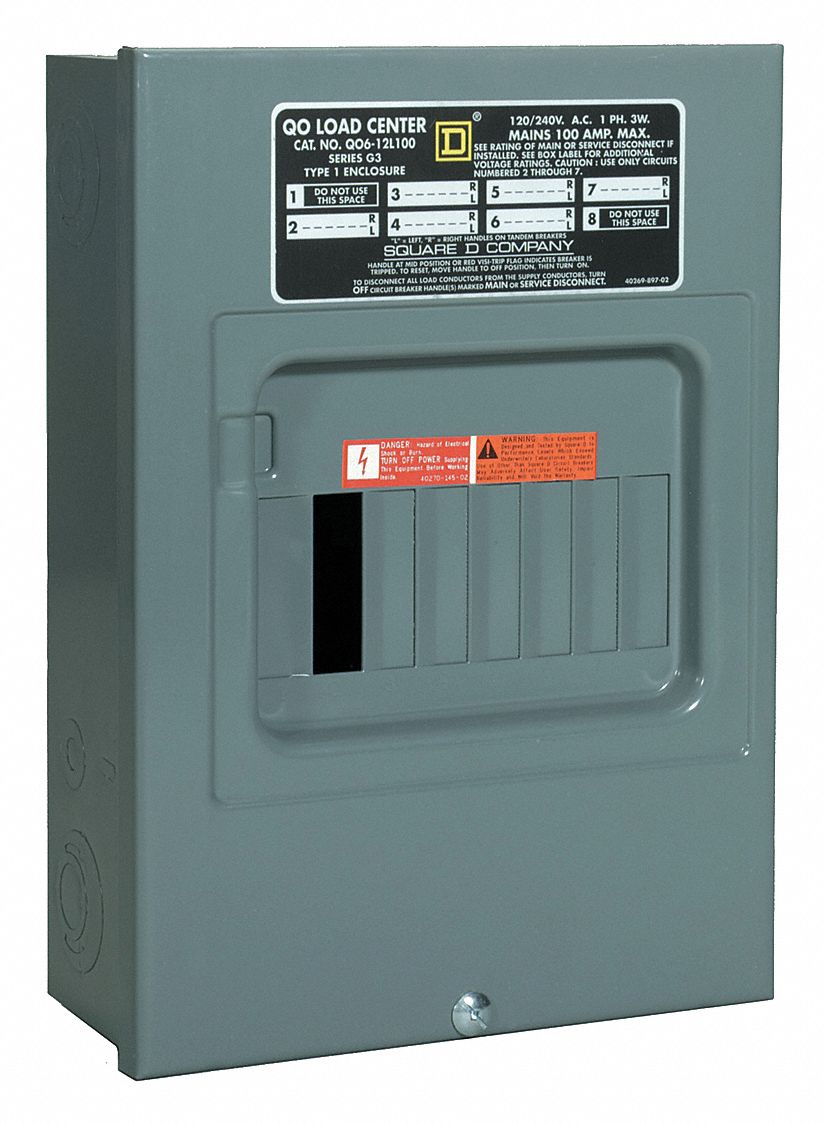

SQUARE D Load Center, 100 A

Load Center, Current Rating 100 Amps, Copper Wire Size #8-1 AWG, Aluminum Wire Size #8-1 AWG, Maximum Number of Single Pole Breakers 12, Maximum Number of Tandem Breakers 6, Number of Spaces 6, Ground Bar Kit 1D374, Height 12.57 Inches, Width 8.88 Inches, Depth 3.80 Inches, NEMA 1 Indoor Model, 120/240 VAC, Single Phase, Main Lug, With Cover, Without Door
  • Grainger Item #1D420
    Price (ea.)$61.00
    BrandSQUARE D
    Mfr. Model #QO612L100S
    UNSPSC #39121101
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)7.75
    Availability Typically in Stock
    Catalog Page No.280
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemLoad Center
TypeMain Lugs
Amps100
RMS Symmetrical Amp Rating10000
Voltage120/240
Phase1
BusOne Piece
MainsFixed Lug
Circuit Breaker TypeQO
EnclosureIndoor
Number of Spaces6
Max. No. of 1 Pole Breakers12
Max. No. of Tandem Breakers6
Copper (AWG/kcmil)8 to 1
Aluminum Wire (AWG/kcmil)8 to 1
Bus MaterialCopper Plated
Material of ConstructionShielded Copper
NEMA Rating1
Cover TypeLow Profile with Automatic Flush Adjustment
Surface CoverIncluded, w/o Door
Height (In.)12.57
Width (In.)8.88
Depth (In.)3.80
Ground Bar Kit1D374
Rotated ForTop or Bottom Feed
Federal SpecificationW-P-115c as Type 1 Class 2


Optional Accessories

More Accessories

Brand:

SQUARE D

Grainger Item #:

1D374

Price (ea.):

$9.56
