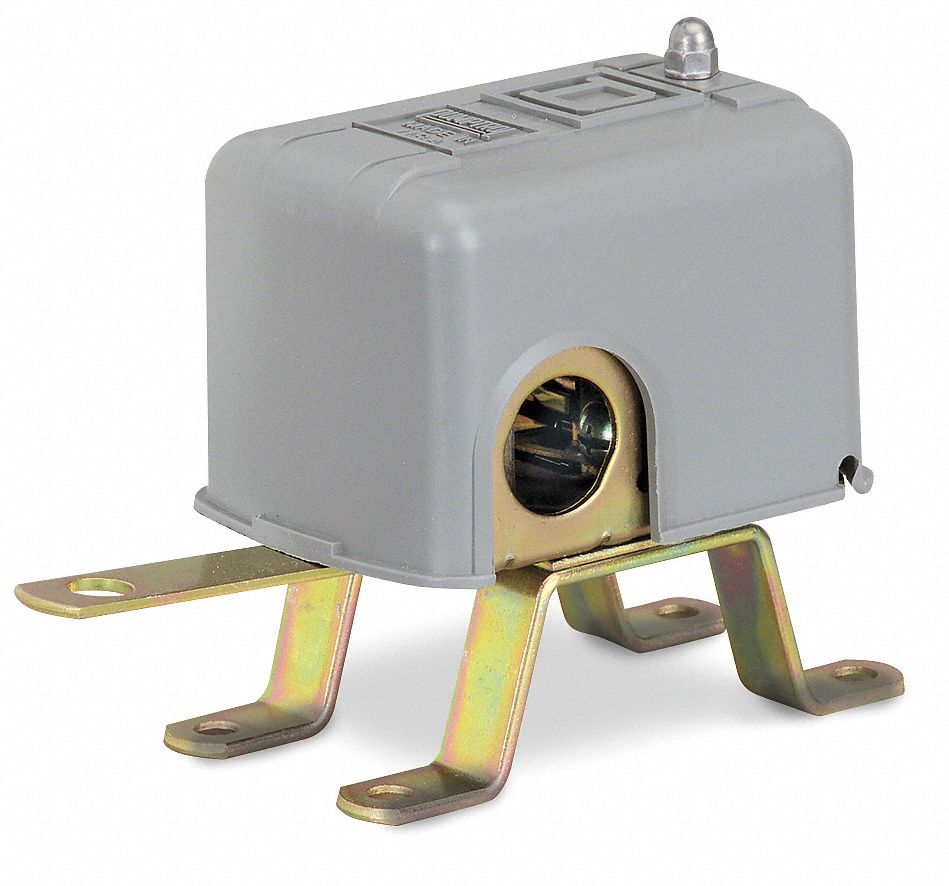

SQUARE D Liquid Level Switch, Close On Rise

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Liquid Level Switch, Vertical Open Tank MountingOperating Temp. Range -22 Degrees to 220 Degrees FSwitch Function Close On Rise, Overall Length 7.10 In.Height 4.27 In., Width 2.53 In., Contact Form DPST, Max. Current 10A, Max. Voltage 575, HP @ 1 Phase - 115V 2, HP @ 1 Phase - 230V 3, HP @ 3 Phase - 230V 5, Body Material Steel, Float Position BelowConduit Size 1/2 In., 3/4 In., NEMA Rating 4, Standards UL, CSA, Electrical Connections Screw Clamp

Grainger Item #	2FH65
Price (ea.)	$374.50
Brand	SQUARE D
Mfr. Model #	9036DW31
UNSPSC #	39121531
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	4.3
Availability	Typically in Stock
Catalog Page No.	402
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Liquid Level Switch
Mounting		Vertical Open Tank
Operating Temp. Range		-22 Degrees to 220 Degrees F
Switch Function		Close On Rise
Overall Length		7.10"
Height		4.27"
Width		2.53"
Contact Form		DPST
Max. Current		10A
Max. Voltage		575
HP @ 1 Phase - 115V		2
HP @ 1 Phase - 230V		3
HP @ 3 Phase - 230V		5
Body Material		Steel
Float Position		Below
Conduit Size		1/2", 3/4"
NEMA Rating		4
Standards		UL, CSA
Electrical Connections		Screw Clamp
