SQUARE D Circuit Breaker, Plug In, HG, 3Pole, 125A

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circuit Breaker, Plug In, Standard Circuit Breaker Type, Number of Poles 3, Voltage 600VAC, Amps 125, Three Phase, ABC Phase Connection, Min Wire Size 14 AWG, Max Wire Size 3 AWG, Length 6.40 In, Width 4.10 In, Depth 4.36 In, Box Lug Terminal Connection, For Use With I-Line Panels, Frame Size 150 Amp/HG, Max. DC Voltage 250 V, Standards UL/CSA

Grainger Item #	2GNT3
Price (ea.)	$3,731.00
Brand	SQUARE D
Mfr. Model #	HGA36125
UNSPSC #	39121601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	6.45
Availability	Typically in Stock
Catalog Page No.	279
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

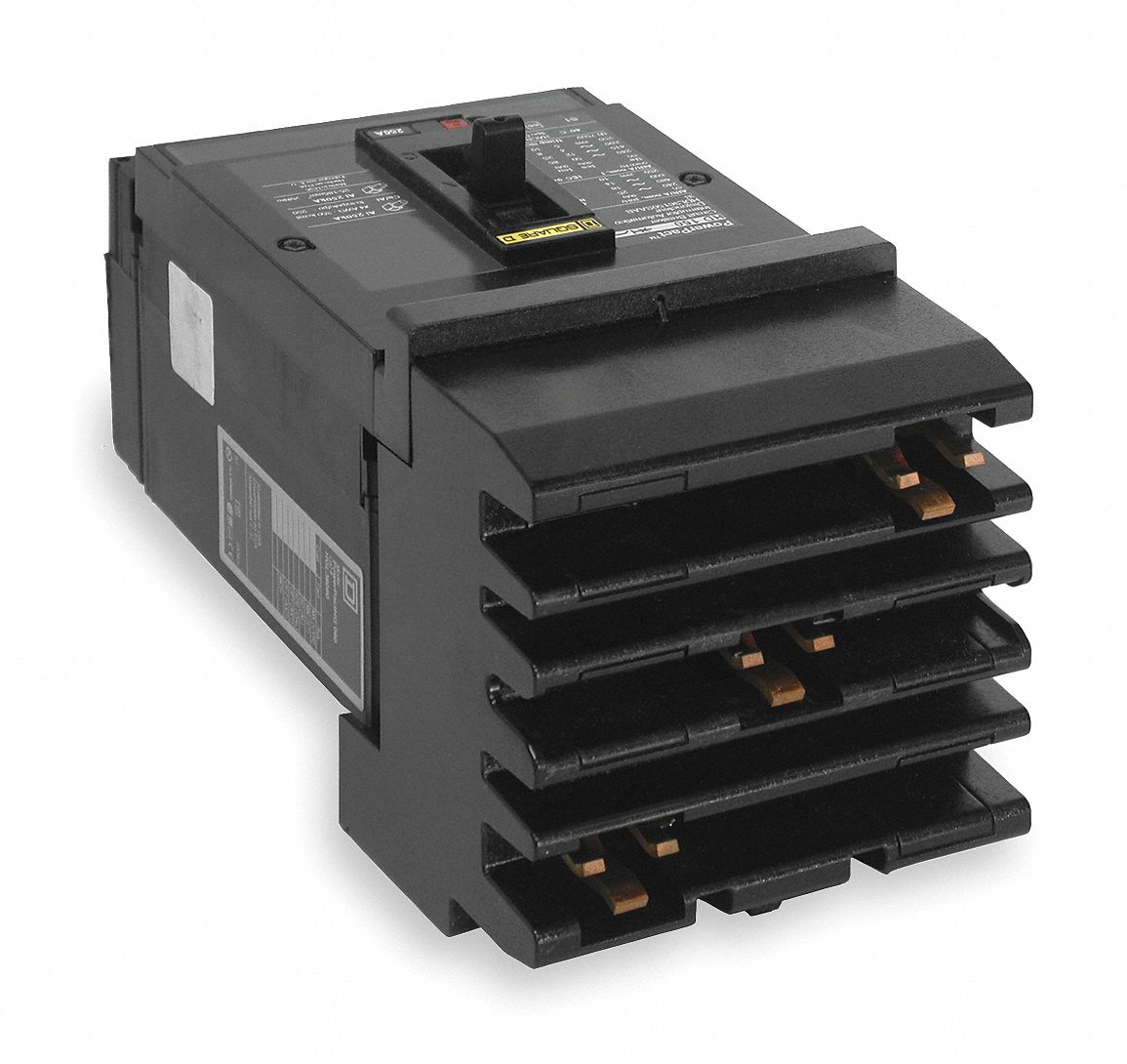

Circuit Breaker, Plug In, HG, 3Pole, 125A

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circuit Breaker
Type		Panelboard Mount
Circuit Breaker Type		Standard
Number of Poles		3
Amps		125
Voltage		600VAC
Max. DC Voltage (V)		250
AIR @ 120VAC		65k
AIR @ 125VDC		20k
AIR @ 240VAC		65k
AIR @ 480VAC		35k
AIR @ 600VAC		18k
AIR @ 48VDC		20k
AIR @ 65VDC		20k
Phase		3
Phase Connection		ABC
Terminal Connection		Lug
Min. Wire Size (AWG)		14
Max. Wire Size (AWG)		3
Length (In.)		6.40
Width (In.)		4.10
Depth (In.)		4.36
Instantaneous Trip		Fixed
High Amp Trip Setting		1700
Frame Size		150A/HG
For Use With		I Line Panelboards
Standards		UL, CSA, CE, NOM
Panelboard Mounting		Plug-In
