SQUARE D Circuit Breaker, Molded Case, 600V, 250A

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circuit Breaker, Molded Case, Micrologic Standard W LI Functionality Circuit Breaker Type, Toggle Switch Type, Number of Poles 3, 250 Amps, 600VAC, 65kA, 65kA, 35kA, 35kA, Box Lug Terminal Connection, Min. Wire Size (AWG) 3/0 AWG, Max. Wire Size (AWG) 350 kcmil, Length (In.) 7.52, Width (In.) 4.12, Depth (In.) 5.00, Adjustable Instantaneous Trip, High Amp Trip Setting 70A, Low Amp Trip Setting 250A, Frame Size 250A, Standards UL489, Box Lug Both Ends

Grainger Item #	14G981
Price (ea.)	$4,047.00
Brand	SQUARE D
Mfr. Model #	JGL36250U31X
UNSPSC #	39121601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	5.35
Availability	Typically in Stock
Catalog Page No.	278
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

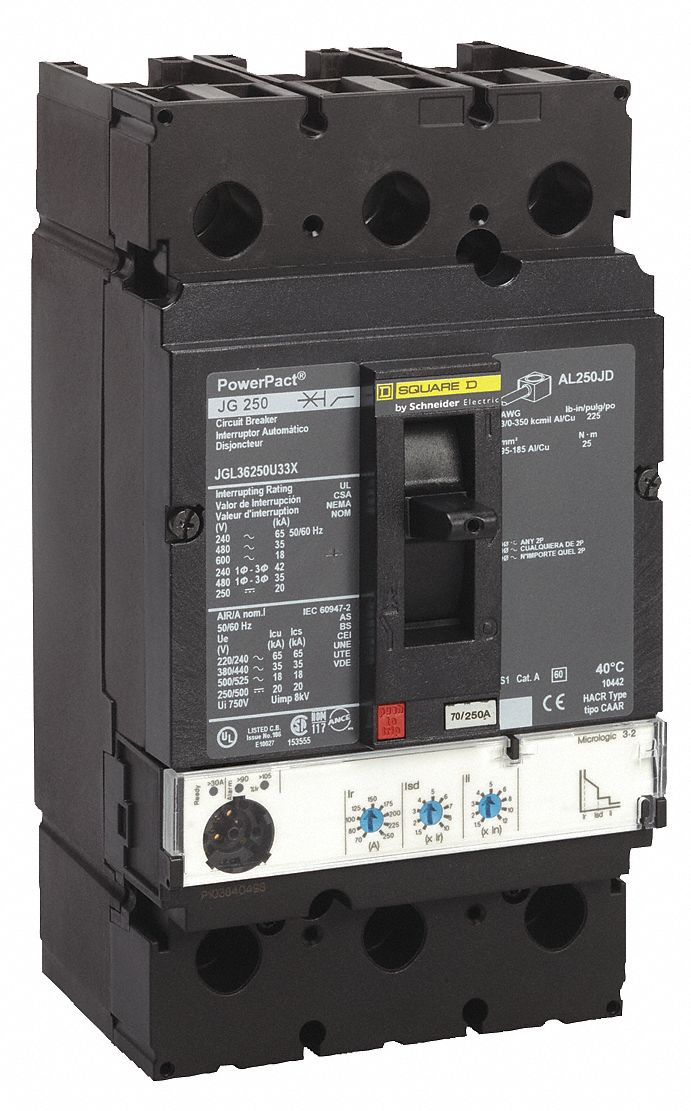

Circuit Breaker, Molded Case, 600V, 250A

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circuit Breaker
Type		Molded Case
Circuit Breaker Type		Micrologic Standard W LI Functionality
Switch Type		Toggle
Number of Poles		3
Amps		250
Voltage		600VAC
AIR @ 120VAC		65kA
AIR @ 240VAC		65kA
AIR @ 277VAC		35kA
AIR @ 480VAC		35kA
Terminal Connection		Box Lug
Min. Wire Size (AWG)		3/0 AWG
Max. Wire Size (AWG)		350 kcmil
Length (In.)		7.52
Width (In.)		4.12
Depth (In.)		5.00
Instantaneous Trip		Adjustable
High Amp Trip Setting		70A
Low Amp Trip Setting		250A
Frame Size		250A
Standards		UL489
Mounting Type		Box Lug Both Ends
