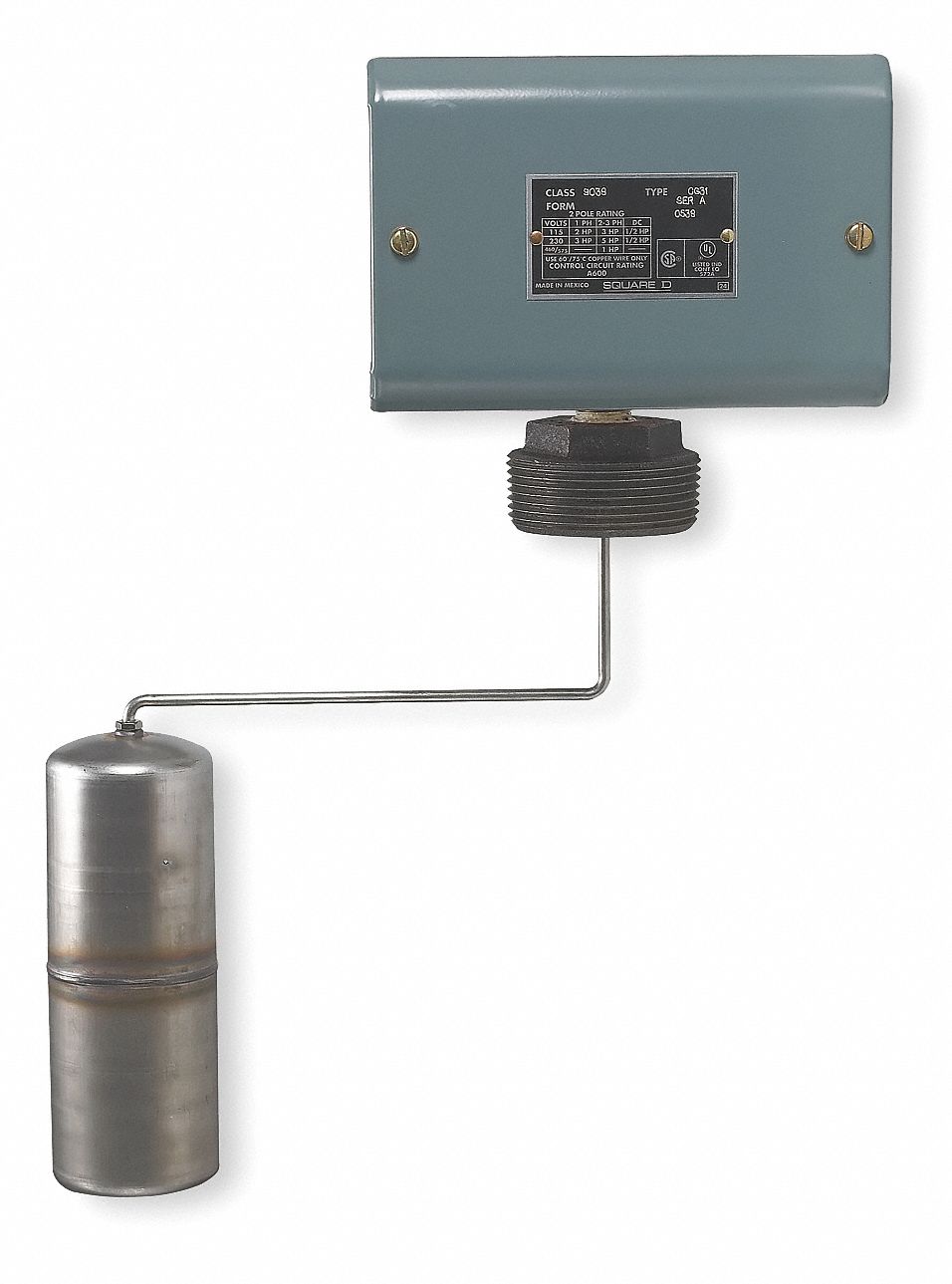

SQUARE D Altntr Lvl Swch, 2-1/2 In NPT, ClsOnRse, SS

Alternator Liquid Level Switch, Horizontal Mounting, Tank Connection Size 2-1/2 In. MNPTOperating Temp. Range -22 Degrees to 220 Degrees F, Max. Pressure 50 psi, Switch Function Close On Rise, Overall Length 17.81 In., Float Material Stainless Steel, Float Length 7.00 In., Float Dia. 2.50 In., Stem Material Stainless Steel, Stem Length 4.00 In., Float Travel 6-1/2 In., Height 5.94 In., Width 6.84 In., Contact Form DPST, Max. Current 10A, Max. Voltage 600, HP @ 1 Phase - 115V 2
  • Grainger Item #3DZY4
    Price (ea.)$600.50
    BrandSQUARE D
    Mfr. Model #9038CG32N5
    UNSPSC #39121531
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)9.35
    Availability Typically in Stock
    Catalog Page No. N/A
    Country of Origin
    (Country of Origin is subject to change.)
    Mexico
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemAlternator Liquid Level Switch
MountingHorizontal
Tank Connection Size2-1/2" MNPT
Operating Temp. Range-22 Degrees to 220 Degrees F
Max. Pressure50 psi
Switch FunctionClose On Rise
Overall Length17.81"
Float MaterialStainless Steel
Float Length7.00"
Float Dia.2.50"
Stem MaterialStainless Steel
Stem Length4.00"
Float Travel6-1/2"
Height5.94"
Width6.84"
Contact FormDPST
Max. Current10A
Max. Voltage600
HP @ 1 Phase - 115V2
HP @ 1 Phase - 230V3
HP @ 3 Phase - 230V5
Body MaterialSteel
Float PositionLeft
Float Rod Angle45 Degrees
Conduit Size1/2", 3/4"
NEMA Rating1
Electrical ConnectionsScrew Clamp
FeaturesAddition of High Water Alarm Circuit
IncludesExternal Pointer, Name Plate, Rod and Float, High Water Alarm (Single Pole)


Other Popular Terms for this Product

  1. • Float Switches  (343)

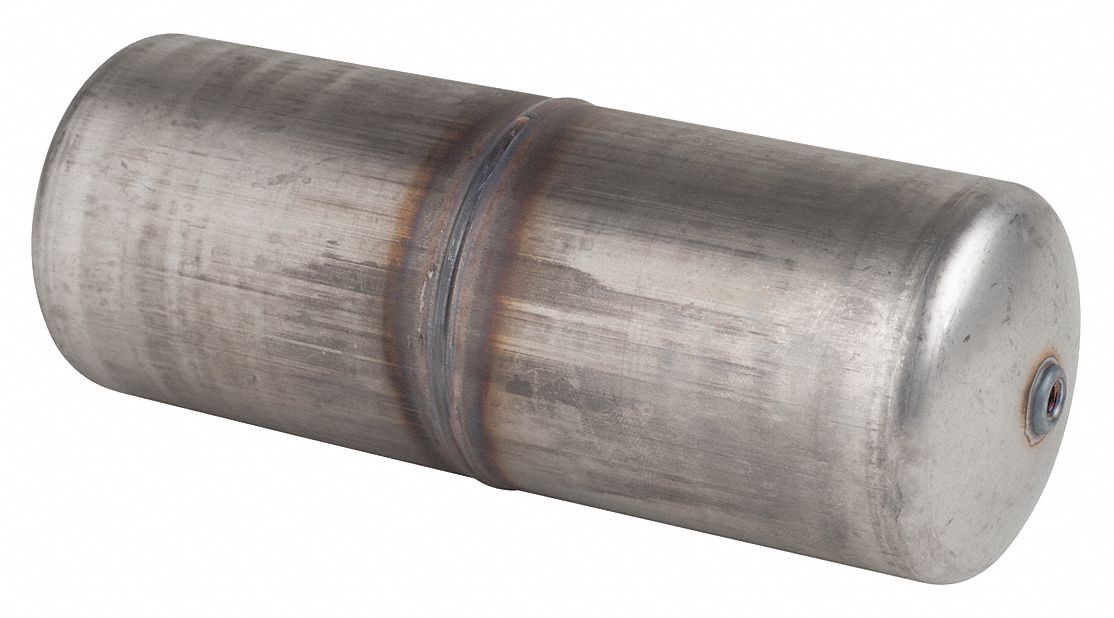

Optional Accessories

More Accessories

Brand:

SQUARE D

Grainger Item #:

3EAC3

Price (ea.):

$36.85
