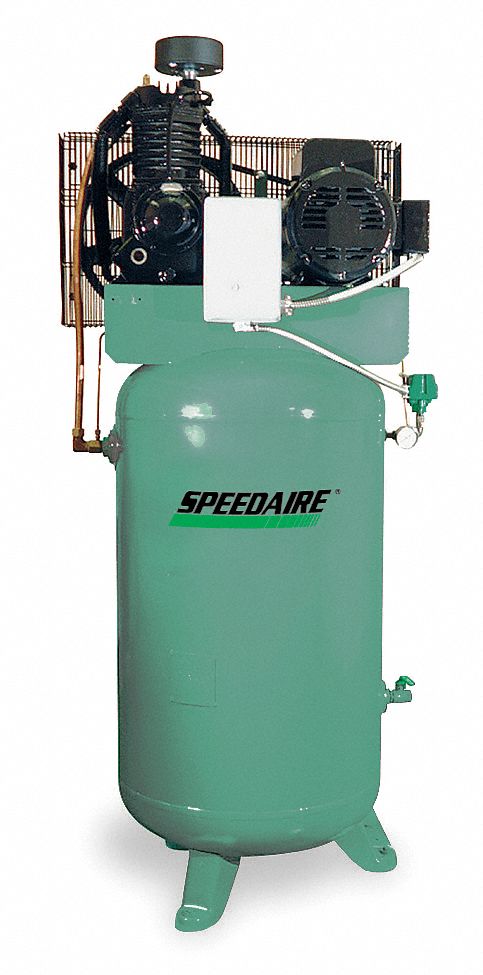

Electric Air Compressor, Compressor Type Tank Mounted, Number of Stages 2, Lubrication Type Splash Lubricated, 7-1/2 HP, Max. Pressure 175 psi, Free Air CFM @ Max. Pressure 23.1, Voltage 208-230, 1 Phase, 36/35 AmpsTank Size 80 gal., Tank Type Vertical, ASME Tank Yes, (F)NPT Outlet 1/2 In.Spray Paint Air Dry Finish, Enclosure NEMA, Control Automatic Start/Stop, Motor Type Open Dripproof, Overall Length 33 In., Overall Width 24 In., Overall Height 76 In., Standards California Code 462(L)(2)
  • Grainger Item #4XA60
    Price (ea.)$2,624.00
    BrandSPEEDAIRE
    Mfr. Model #4XA60
    UNSPSC #40151601
    Ship Qty. 1
    Sell Qty. (Will-Call) 1
    Ship Weight (lbs.)690.0
    Availability Typically in Stock
    Catalog Page No.3997
    Country of Origin
    (Country of Origin is subject to change.)
    USA
    California Proposition 65
  • See Compliance & Restrictions for important safety & regulatory information.
  • Price shown may not reflect your price. Sign in or register.
Check Availability Use your ZIP code to estimate availability.
  •
  •
  • Please wait...
ItemElectric Air Compressor
Compressor TypeTank Mounted
Number of Stages2
Lubrication TypeSplash Lubricated
HP7-1/2
Max. Pressure175 psi
Free Air CFM @ Max. Pressure23.1
Voltage208-230
Phase1
Amps36/35
Tank Size80 gal.
Tank TypeVertical
ASME TankYes
(F)NPT Outlet1/2"
Pump RPM1035
Pump Oil Capacity2 qt.
On Pressure Switch Setting140
Off Pressure Switch Setting175
FinishSpray Paint Air Dry
EnclosureNEMA
ControlAutomatic Start/Stop
Motor TypeOpen Dripproof
Overall Length33"
Overall Width24"
Overall Height76"
StandardsCalifornia Code 462(L)(2)
IncludesInitial Fill of Compressor Oil
