Pumps
>
Drum and Barrel Pumps
>
Drum Pumps

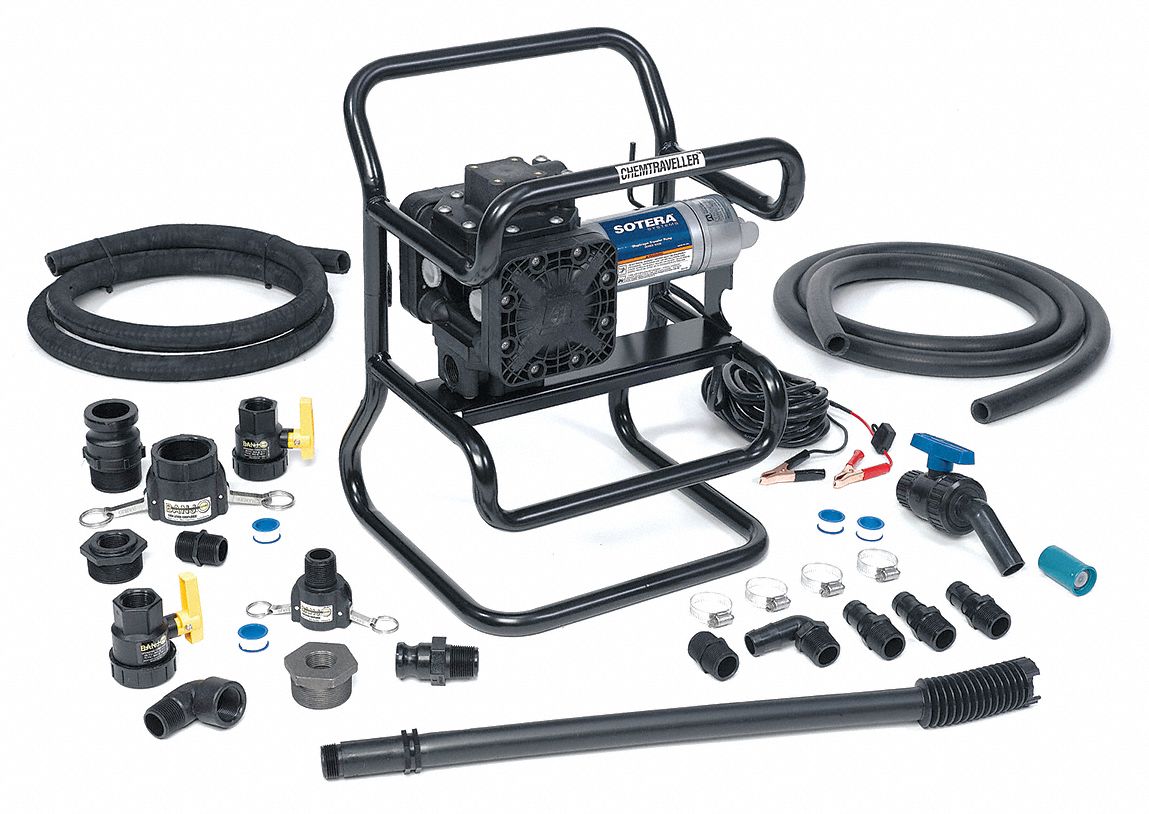

SOTERA Electric Drum Pump, Diaphragm, 1/4 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Electric Operated Drum Pump, Diaphragm, 1/4 HP, Wetted Materials Polypropylene, Fluorocarbon, SS, Santoprene, 1 Phase, 12VDC, 2600 RPM, Pump Body Material Glass Filled Polypropylene, Discharge Tubing Material EPDM, Fluorocarbon Seal, 15 GPM, Max. Head 34 Ft., Max. Pressure 15 PSI, Max. Temp. 130 F, Max. Viscosity 3000 CPS, Inlet Size 1 In, Outlet Size 1 In, Hose Length 12', Discharge Tube Outlet ID Size 1 In., Includes Suction, Discharge Hose and Nozzle

Grainger Item #	6XGV8
Price (ea.)	$1,463.00
Brand	SOTERA
Mfr. Model #	SS435BX713
UNSPSC #	40151529
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	48.3
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Electric Operated Drum Pump
Type		Diaphragm
Voltage		12VDC
Hz		60
Phase		1
HP		1/4
RPM		2600/360cycle/min
Motor Enclosure		TENV
Motor Type		12VDC
Pump Body Material		Glass Filled Polypropylene
Wetted Materials		Polypropylene, Fluorocarbon, SS, Santoprene
pH Range		3.6-11.9
Seal Material		Fluorocarbon
Gasket Material		Fluorocarbon
Discharge Tubing Material		EPDM
Hose Material		EPDM
Piston		Santoprene
For Use On		Chemicals
GPM		15
Maximum Head		34'
Max. Pressure		15PSI
Max. Temp.		130oF
Max. Viscosity		3000 CPS
Max. GPM for Oil		12
Max. GPM for Water		15
Inlet Size		1"
Outlet Size		1"
Discharge Tube Outlet ID Size		1"
Hose Length		12'
Overall Length		22.5"
Metered		N
Application		DEF, Solvents, Cleaners, Degreasers, Deionized Water, Caustics
Manufacturers Warranty Length		1 Year
Includes		Includes Suction, Discharge Hose and Nozzle
