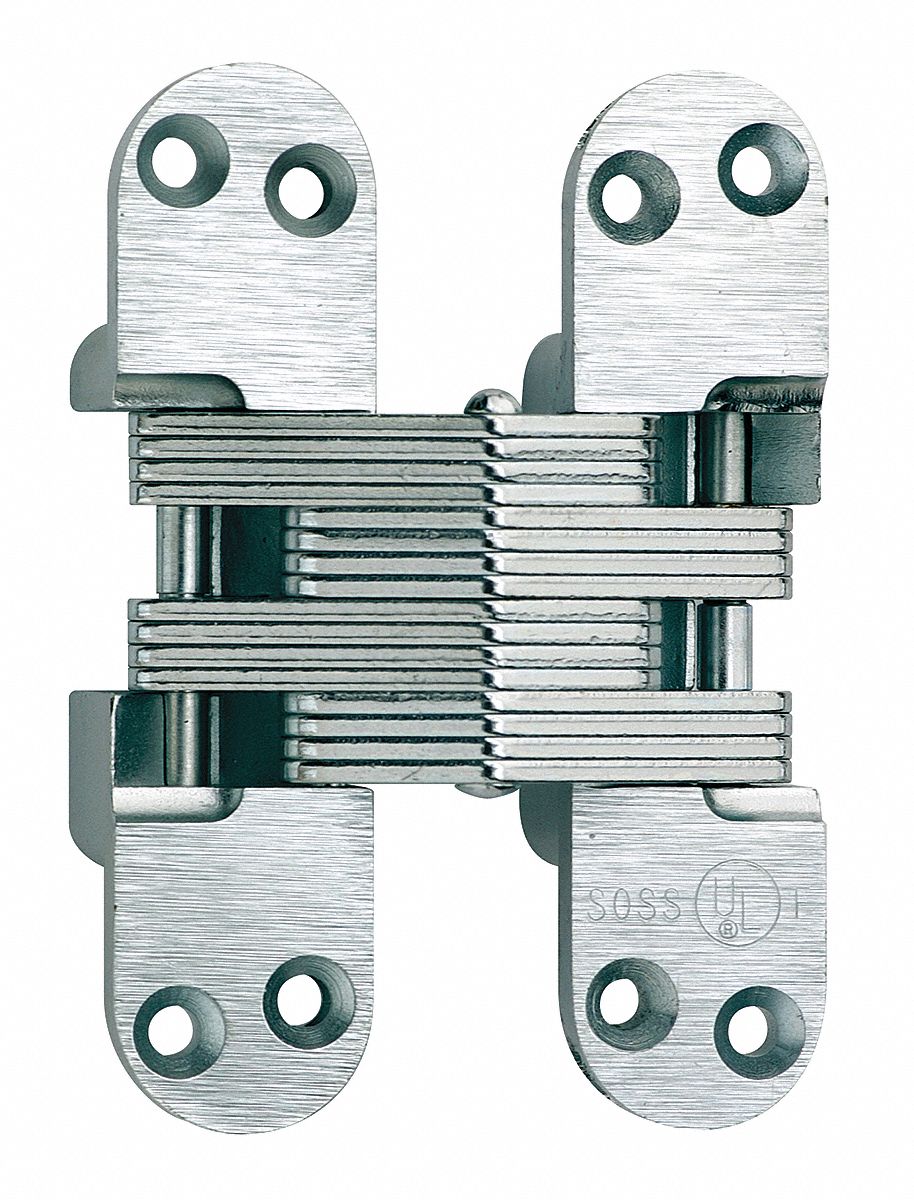

SOSS Hinge, Fire-Rated, Satin Chrome, 4 5/8 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Hinge, Fire-Rated, Material Zamac and Steel, Color Satin Chrome, Finish Satin Chrome, Height 4-5/8 In., Width 3-1/8 In., Pin Material Steel, Door Thickness 1-3/4 In., Range of Motion 180, Thickness 1-41/64 In., Holes per Leaf 4, Pin Type Non Removable, Corners Round, 2 Holes, Door Leaf Length 4-5/8 In., Door Leaf Width 1-1/8 In., Frame Leaf Length 4-5/8 In., Frame Leaf Width 1-1/8 In., Leaf Thickness 1-41/64 In., Load Capacity 1-3/4 In. thick door, Stanley Class Number -, Stanley EDP Number -

Grainger Item #	4ACZ2
Price (ea.)	$49.75
Brand	SOSS
Mfr. Model #	218FRUS26DPB
UNSPSC #	31162403
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.01
Availability	Typically in Stock
Catalog Page No.	3091
Country of Origin (Country of Origin is subject to change.)	Singapore

Qty.
Price shown may not reflect your price. Sign in or register.

Hinge, Fire-Rated, Satin Chrome, 4 5/8 In

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Hinge
Type		Fire-Rated
Material		Zamac and Steel
Color		Satin Chrome
Finish		Satin Chrome
Height		4-5/8"
Width		3-1/8"
Pin Material		Steel
Door Thickness		1-3/4"
Range of Motion		180
Thickness		1-41/64"
Holes per Leaf		4
Pin Type		Non Removable
Corners		Round
Holes		2
Door Leaf Length		4-5/8"
Door Leaf Width		1-1/8"
Frame Leaf Length		4-5/8"
Frame Leaf Width		1-1/8"
Leaf Thickness		1-41/64"
Load Capacity		1-3/4" thick door
Standards		ANSI/BHMA 156.1 2006
Mounting		Full Mortise
For Use With		1 3/4 thick door
Includes		Hardware
