Electrical
>
Voltage Regulation
>
Hardwire Surge Protection Devices

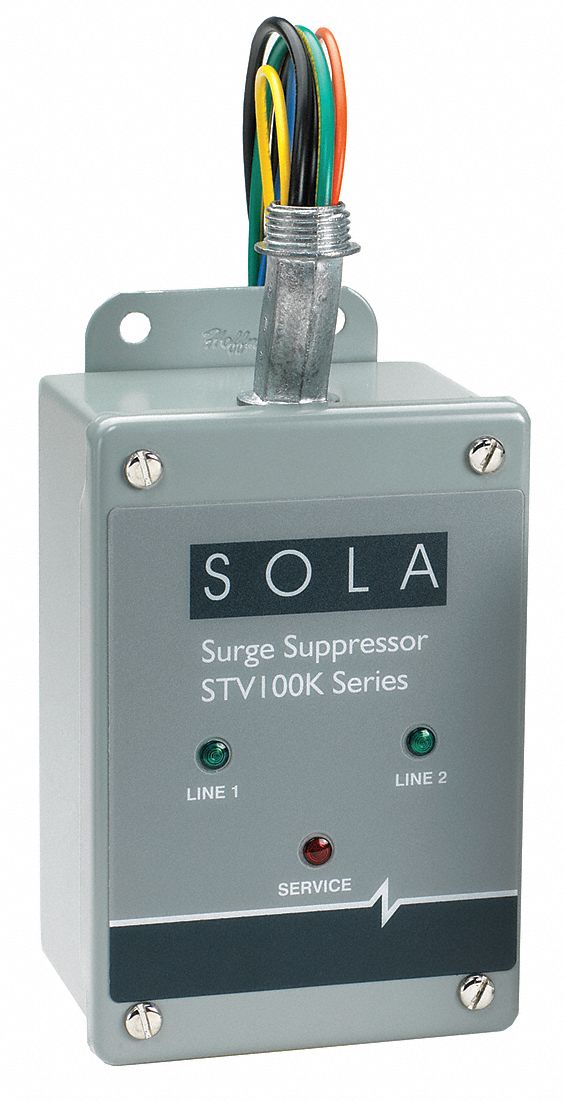

SOLA/HEVI-DUTY Surge Protector, Hard Wired, 1P, 100 kA

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Surge Protection Device, Hard Wired, Location Type 240 VAC, Nominal Discharge Current 3kA, Voltage 240, Phase 1, Wire 12 AWG, Number of Poles 1, Max. Surge Current Per Phase 100 kA, Max. Surge Current Per Mode 50kA (L-G, L-L), Max. Continuing Operating Voltage 320/300, Voltage Protection Rating 1200V (L-G), 1000V (L-L), Short Circuit Current Rating 65kAIC, Modes of Protection L-G, L-L, Mounting Style 1/2 NPT Offset Nipple, Material of Construction Sand Encapsulation

Grainger Item #	19L438
Price (ea.)	$870.00
Brand	SOLA/HEVI-DUTY
Mfr. Model #	STV100K24L
UNSPSC #	39121610
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	5.95
Availability	Typically in Stock
Catalog Page No.	300
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Surge Protection Device
Type		Hard Wired
Location Type		240 VAC
Nominal Discharge Current		3kA
Voltage		240
Phase		1
Wire		12 AWG
Number of Poles		1
Max. Surge Current Per Phase		100 kA
Max. Surge Current Per Mode		50kA (L-G, L-L)
Max. Continuing Operating Voltage		320/300
Voltage Protection Rating		1200V (L-G), 1000V (L-L)
Short Circuit Current Rating		65kAIC
Modes of Protection		L-G, L-L
Mounting Style		1/2 NPT Offset Nipple
Material of Construction		Sand Encapsulation
Enclosure Type		NEMA 12 Enclosure
Noise Reduction Rating NRR		40db Max
Wire Gauge		12 AWG
Length		4.0
Width		6.0
Depth		4.0
Standards		UL/ cUL
Green Environmental Attribute		Does Not Contain Reproductive Or Developmental Toxins (As Per State Of CA List), Endocrine Disrupters (As Per European Union Priority For Research List), Asthmagens (As Per AOEC List), Carcinogens (As Per IARC 1-2A-2B Lists)
Green Certification or Other Recognition		ENERGY STAR Rated
