Electrical
>
Voltage Regulation
>
Hardwire Surge Protection Devices

SOLA/HEVI-DUTY Surge Protector, Din Rail, Filter, 1P, 30kA

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Surge Protection Device, Din Rail, Filtered, Location Type 120 VAC, Nominal Discharge Current 5.0, Voltage 120, Phase 1, Wire 22, Number of Poles 1, Max. Surge Current Per Phase 30kA, Max. Surge Current Per Mode 20kA (L-N), 10kA (L-G, N-G), Max. Continuing Operating Voltage 150VAC, Voltage Protection Rating 400V (L-N), 600V (L-G, N-G), Short Circuit Current Rating 5kAIC, Modes of Protection L-N, L-G, N-G, Mounting Style DIN Rail MountEnclosure Type Fully Enclosed Metal Housing

Grainger Item #	19L422
Price (ea.)	$366.75
Brand	SOLA/HEVI-DUTY
Mfr. Model #	STFE05010N
UNSPSC #	39121610
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.35
Availability	Typically in Stock
Catalog Page No.	N/A
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $75.95 each.
Price shown may not reflect your price. Sign in or register.

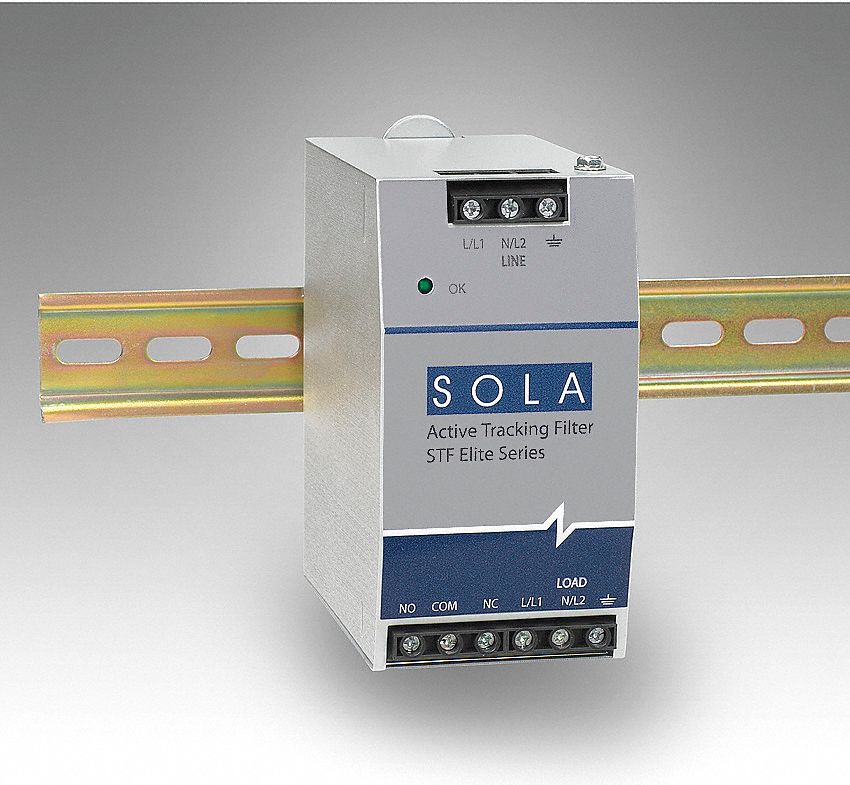

Surge Protector, Din Rail, Filter, 1P, 30kA

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Surge Protection Device
Type		Din Rail,Filtered
Location Type		120 VAC
Nominal Discharge Current		5.0
Voltage		120
Phase		1
Wire		22
Number of Poles		1
Max. Surge Current Per Phase		30kA
Max. Surge Current Per Mode		20kA (L-N), 10kA (L-G, N-G)
Max. Continuing Operating Voltage		150VAC
Voltage Protection Rating		400V (L-N), 600V (L-G, N-G)
Short Circuit Current Rating		5kAIC
Modes of Protection		L-N, L-G, N-G
Mounting Style		DIN Rail Mount
Enclosure Type		Fully Enclosed Metal Housing
Noise Reduction Rating NRR		Normal Mode = 90db MaxCommon Mode = 60db Max
Wire Gauge		22 AWG
Length		4.88
Width		2.56
Depth		4.56
Standards		UL/cUL/CE
Green Environmental Attribute		Does Not Contain Reproductive Or Developmental Toxins (As Per State Of CA List), Endocrine Disrupters (As Per European Union Priority For Research List), Asthmagens (As Per AOEC List), Carcinogens (As Per IARC 1-2A-2B Lists)
Green Certification or Other Recognition		ENERGY STAR Rated
