Pumps
>
Pump Controls
>
Electronic Flowmeters

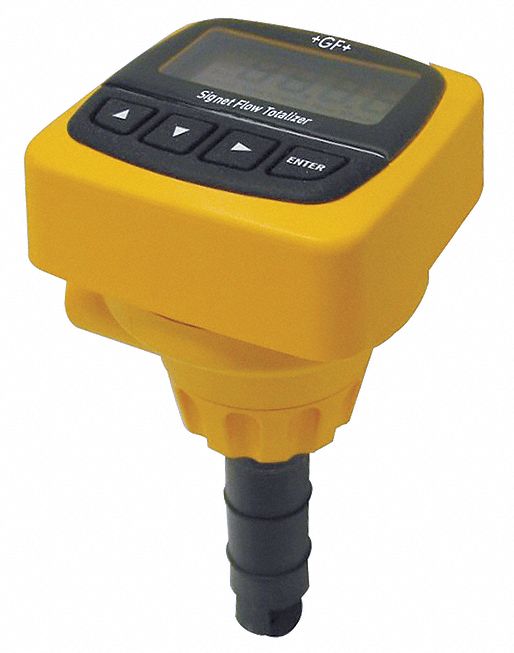

SIGNET Complete Battery Powered System

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Flow Integral System, Housing Material Glass Filled Poly, Fitting Size (In.) 1/2 to 4 In., Flow Material Water-Like Liquids, Flow Range @ GPH 0.16 to 51, Flow Range (GPM) 0.95 to 3100, Flow Range (LPM) 3.5 to 11600, Fitting Type GF Insertion Fitting, Accuracy ( Percent) +/-0.5, Pressure Rating (PSI) 150, Fluid Temp. Range (Deg. F) 14 to 149, Max. Viscosity 25 cP, Length (In.) 6 In., Frequency Range (Hz) 6 per ft/sec, Sensor Type Paddlewheel, Rotor Type PVDF, O-Ring FPM, Display Units Range

Grainger Item #	5NFK7
Price (ea.)	$1,050.00
Brand	SIGNET
Mfr. Model #	3-8150-P0
UNSPSC #	41112501
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	2.35
Availability	Typically in Stock
Catalog Page No.	4112
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Flow Integral System
Housing Material		Glass Filled Poly
Fitting Size (In.)		1/2 to 4
Flow Material		Water-Like Liquids
Flow Range @ GPH		0.16 to 51
Flow Range (GPM)		0.95 to 3100
Flow Range (LPM)		3.5 to 11600
Fitting Type		GF Insertion Fitting
Accuracy (%)		+/-0.5
Pressure Rating (PSI)		150
Fluid Temp. Range (Deg. F)		14 to 149
Max. Viscosity		25 cP
Length (In.)		6"
Frequency Range (Hz)		6 per ft/sec
Sensor Type		Paddlewheel
Rotor Type		PVDF
O-Ring		FPM
Display Units		Range
Display Type		LCD
Flow Range		0.95 to 793
Flow Range @ < 5 cps		0.95 to 793
Repeatability		+/- 0.5% Full Range
Fluid Temp. Range (Deg. C)		0 to 194 F
Ambient Temperature		14 to 149 Degrees F
Typical K Factor		By Size
Includes		2 AA Size 3.6V Lithium Thionyl Chloride Batteries
Power Requirement		2 AA Size 3.6V Lithium Thionyl Chloride Batteries
Standards		CE, UL, CUL, ROHS
