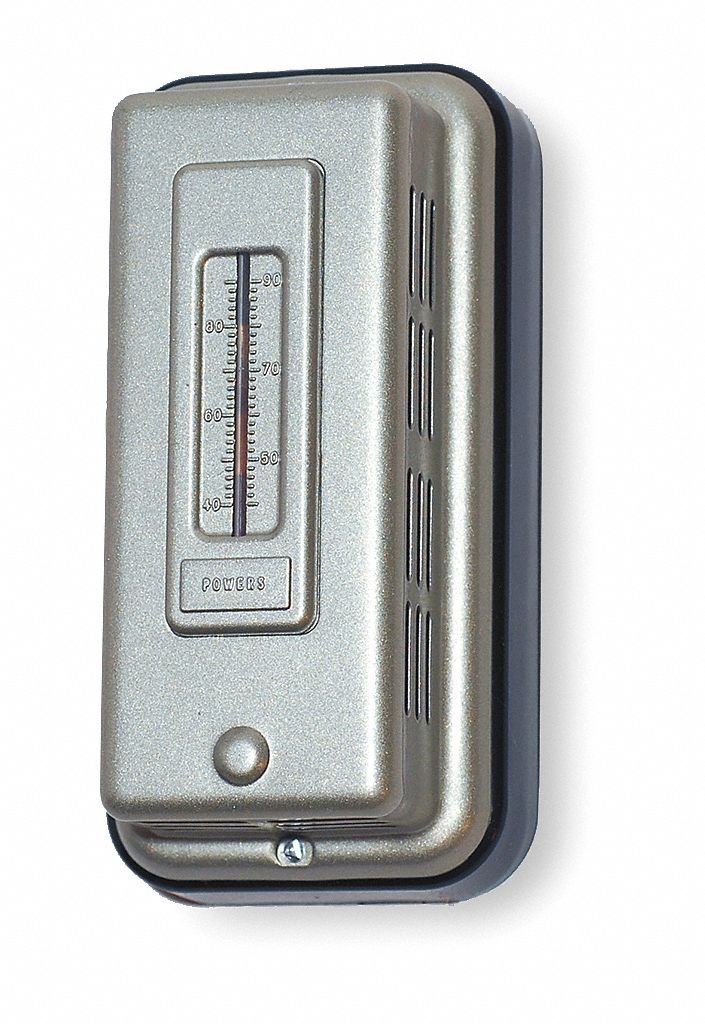

SIEMENS Thermostat, Control Range 60 To 85 F

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Thermostat, Pneumatic, Control Range 60 To 85 F, Element Type Bellows, Air Consumption 10 SCFM, Sensitivity 2.5 PSI/F, Max Safe Air PSI 30, Max Safe Operating Temp 110 F, Height 3 In, Width 7 1/4 In, Depth 3 1/4 In, Min Pressure 18 PSI, Max Ambient 110 F) Bulb Direct, Single Set Point Direct Acting, Air Connections 1/4 In OD tubing, Field Adjustable 3 To 15 PSI, Includes Thermostat Chassis Only

Grainger Item #	2KGP7
Price (ea.)	$288.25
Brand	SIEMENS
Mfr. Model #	832-0120
UNSPSC #	41112209
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	1.2
Availability	Typically in Stock
Catalog Page No.	4587
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Thermostat
Type		2-Pipe Single Temp.
Control Range		3 to 15 psi
Air Connections		5/32"
Contact Action		DA
Element Type		Bellows
Max. Safe Air PSI		30
Max. Safe Operating Temp. (F)		110
Height (In.)		3
Width (In.)		7-1/4
Depth (In.)		3-1/4
Min. Pressure (PSI)		18
Max. Ambient (F) Bulb Direct		110
Control Range (F)		60 to 85
Remarks		Direct Acting Single Set Point, 2.5 PSI Per 1 Degree F
Air Consumption (SCFM)		10
Throttling Range		3 to 15 PSI
Includes		Thermostat Chassis Only
