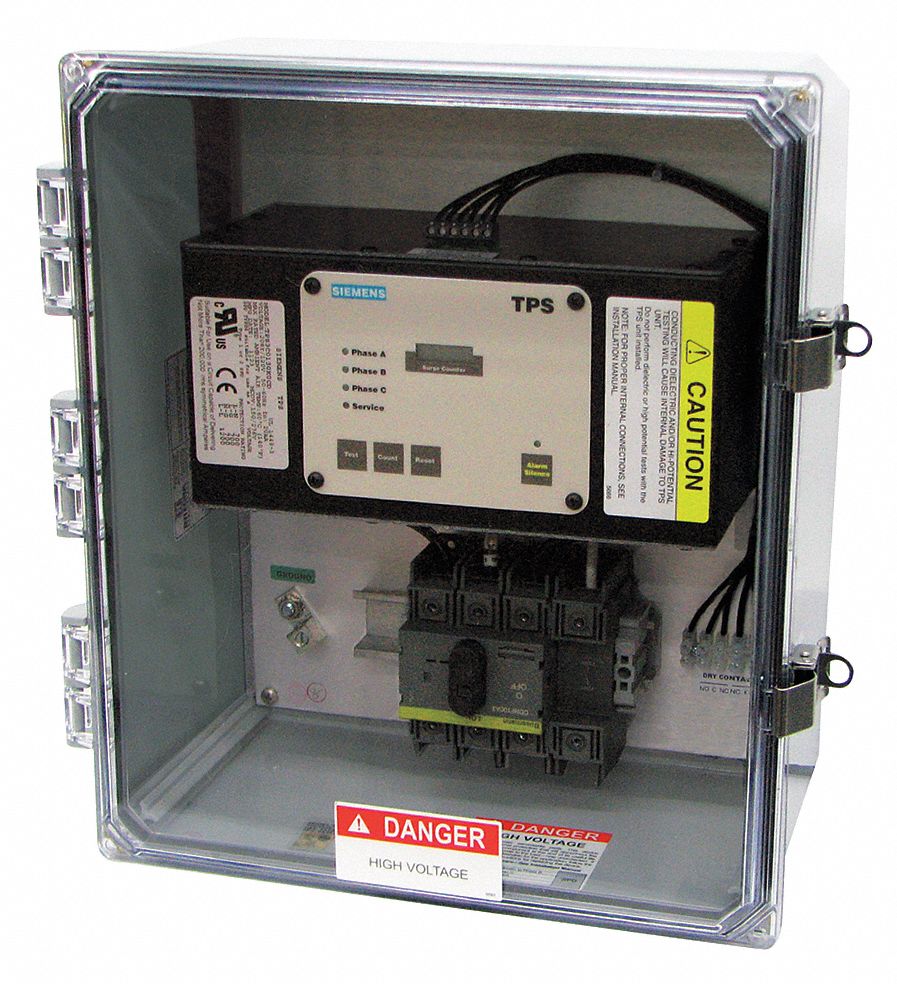

SIEMENS Surge Suppressor, 300kA, 3 Phase

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Surge Suppressor, Low Voltage AC SPDNominal Discharge Current 20kA, Voltage 277/480, Phase 3Y, Wire 4, Number of Poles 3, Max. Surge Current Per Phase 300kAMax. Continuing Operating Voltage 320, Voltage Protection Rating 1200V(L-N), 1200V(L-G), 1200V(N-G), 2000V(L-L)Modes of Protection 7, Mounting Style Surface Mount, Material of Construction Polycarbonate, Enclosure Type NEMA 4XWire Gauge 8AWGLength 17, Width 17, Depth 12, Standards UL 1449 3rd Edition, Type 1 SPD

Grainger Item #	13W848
Price (ea.)	$5,265.00
Brand	SIEMENS
Mfr. Model #	TPS3E1230VXD
UNSPSC #	39121610
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	19.84
Availability	Typically in Stock
Catalog Page No.	301
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $599.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Surge Suppressor
Type		Low Voltage AC SPD
Nominal Discharge Current		20kA
Voltage		277/480
Phase		3Y
Wire		4
Number of Poles		3
Max. Surge Current Per Phase		300kA
Max. Continuing Operating Voltage		320
Voltage Protection Rating		1200V(L-N), 1200V(L-G), 1200V(N-G), 2000V(L-L)
Modes of Protection		7
Mounting Style		Surface Mount
Material of Construction		Polycarbonate
Enclosure Type		NEMA 4X
Wire Gauge		8AWG
Length		17
Width		17
Depth		12
Standards		UL 1449 3rd Edition
Footnotes		Type 1 SPD
Includes		Audible Alarm, Dry Contacts, Surge Counter, and Disconnect Switch
