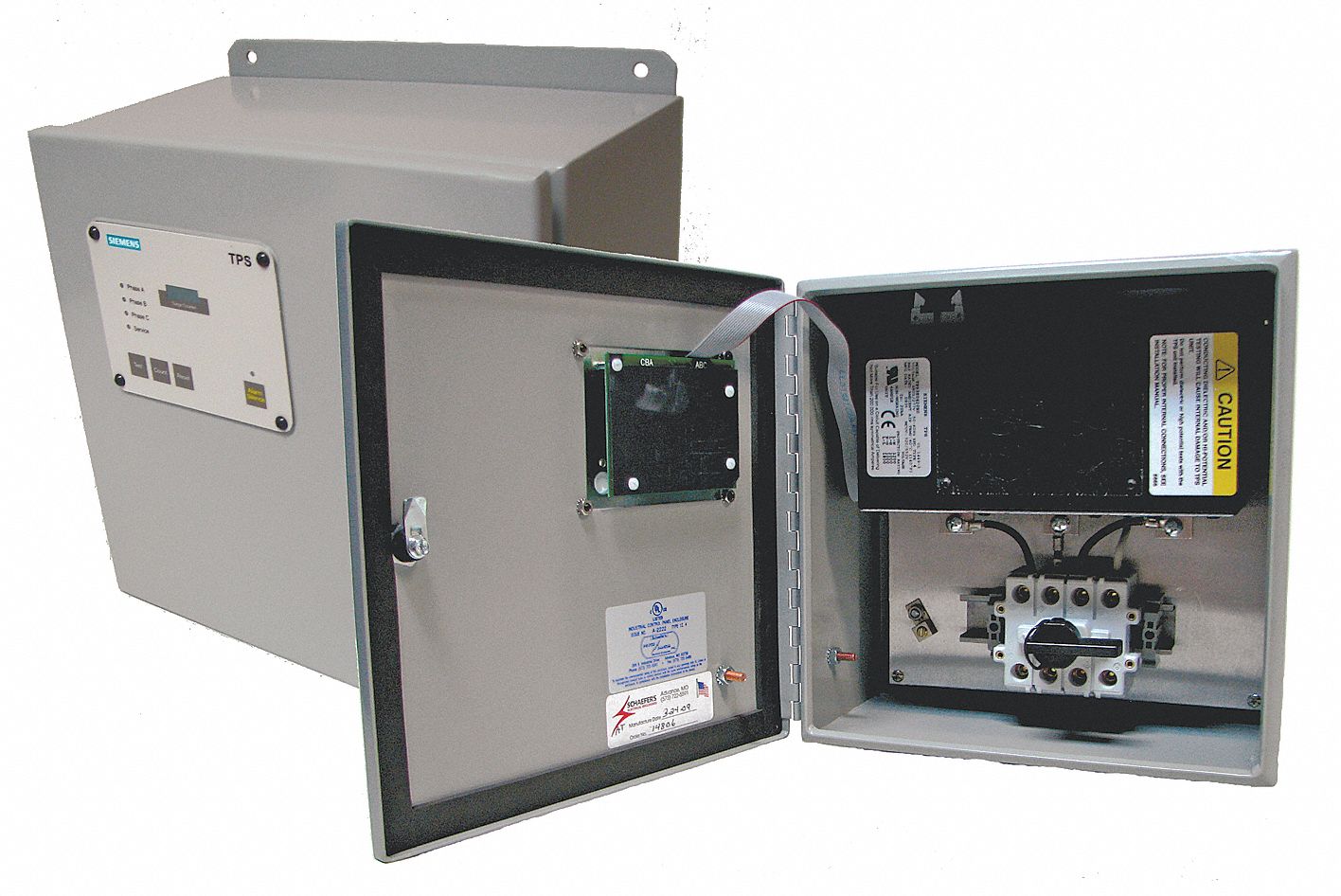

SIEMENS SPD, Hardwired, 3P, 200kA

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Surge Protection Device, Hardwired, Location Type Type 1, Nominal Discharge Current 20kA, Voltage 240, Phase 3D, Wire 3, Number of Poles 3, Max. Surge Current Per Phase 200kA, Max. Surge Current Per Mode 100, Max. Continuing Operating Voltage 320, Voltage Protection Rating 1200V(L-G), 1200V(L-L), Short Circuit Current Rating 200, Modes of Protection 7, Mounting Style External, Material of Construction Steel, Enclosure Type NEMA 1/12/3R/4, Noise Reduction Rating NRR -50db from 10kHz to 100MHz

Grainger Item #	19T298
Price (ea.)	$3,113.00
Brand	SIEMENS
Mfr. Model #	TPS3D12200X0
UNSPSC #	39121610
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	23.45
Availability	Typically in Stock
Catalog Page No.	301
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Surge Protection Device
Type		Hardwired
Location Type		Type 1
Nominal Discharge Current		20kA
Voltage		240
Phase		3D
Wire		3
Number of Poles		3
Max. Surge Current Per Phase		200kA
Max. Surge Current Per Mode		100
Max. Continuing Operating Voltage		320
Voltage Protection Rating		1200V(L-G), 1200V(L-L)
Short Circuit Current Rating		200
Modes of Protection		7
Mounting Style		External
Material of Construction		Steel
Enclosure Type		NEMA 1/12/3R/4
Noise Reduction Rating NRR		-50db from 10kHz to 100MHz
Wire Gauge		8AWG to 1/0
Length		12"
Width		12"
Depth		7"
Standards		UL 1449 3rd Edition, UL96A
Includes		Surge Counter
Green Environmental Attribute		Not Applicable
Green Certification or Other Recognition		RoHS Compliant
