Electrical
>
Distribution
>
Circuit Breakers

SIEMENS CircuitBreaker, 2Pole, 20A, QP, 120/240, 10kA

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Circuit Breaker, Plug In, AIR Rating 10kA, Standard Circuit Breaker Type, Number of Poles 2, Voltage 120/240VAC, 20 Amps, Single Phase, Any Phase Connection, Min Wire Size 14 AWG, Max Wire Size 8 AWG, Length 2.88 In, Width 2.00 In, Depth 2.38 In, Box Lug Terminal Connection, For Use With Siemens Load Centers, Frame Size 125 Amp/QP, High Amp Trip Setting 20 Fixed, Standards UL/ CSA

Grainger Item #	3CNH1
Price (ea.)	$32.10
Brand	SIEMENS
Mfr. Model #	Q220
UNSPSC #	39121601
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	0.55
Availability	Typically in Stock
Catalog Page No.	283
Country of Origin (Country of Origin is subject to change.)	Mexico

Qty.
Price shown may not reflect your price. Sign in or register.

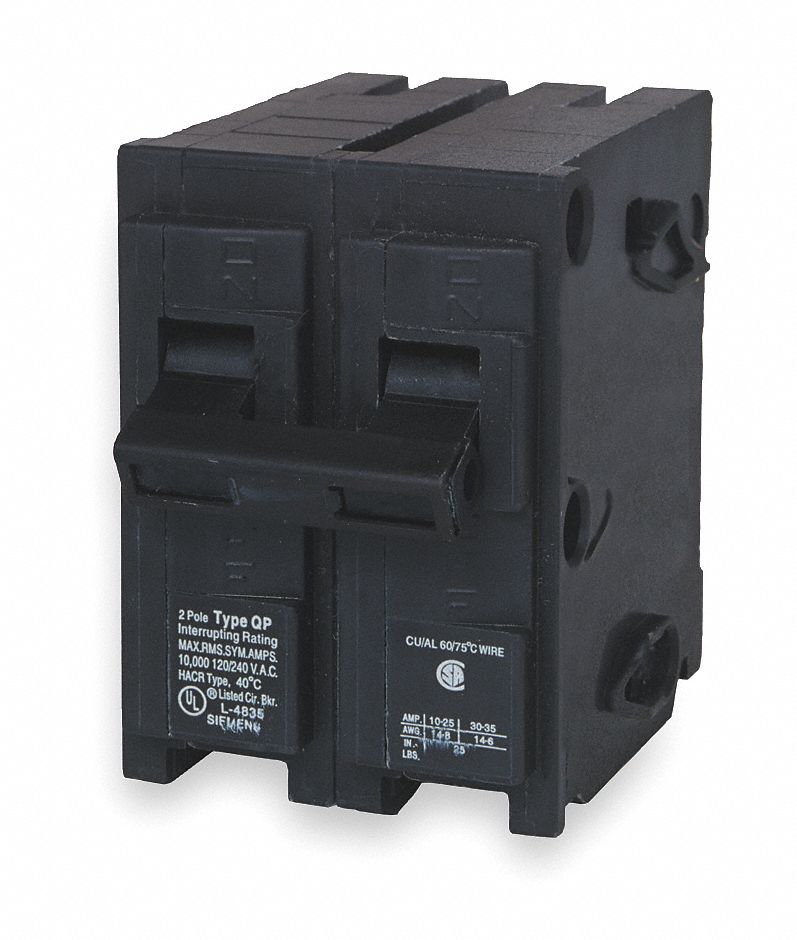

CircuitBreaker, 2Pole, 20A, QP, 120/240, 10kA

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Circuit Breaker
Type		Panelboard Mount
Circuit Breaker Type		Standard
Number of Poles		2
Amps		20
Voltage		120/240 VAC
AIR Rating		10k
AIR @ 120VAC		10k
AIR @ 240VAC		10k
Phase		1
Phase Connection		Any
Terminal Connection		Lug
Min. Wire Size (AWG)		14
Max. Wire Size (AWG)		8
Length (In.)		2.88
Width (In.)		2.00
Depth (In.)		2.38
Instantaneous Trip		Fixed
High Amp Trip Setting		20
Frame Size		125A/QP
For Use With		Siemens Load Centers
Standards		UL, CSA
Panelboard Mounting		Plug-In
