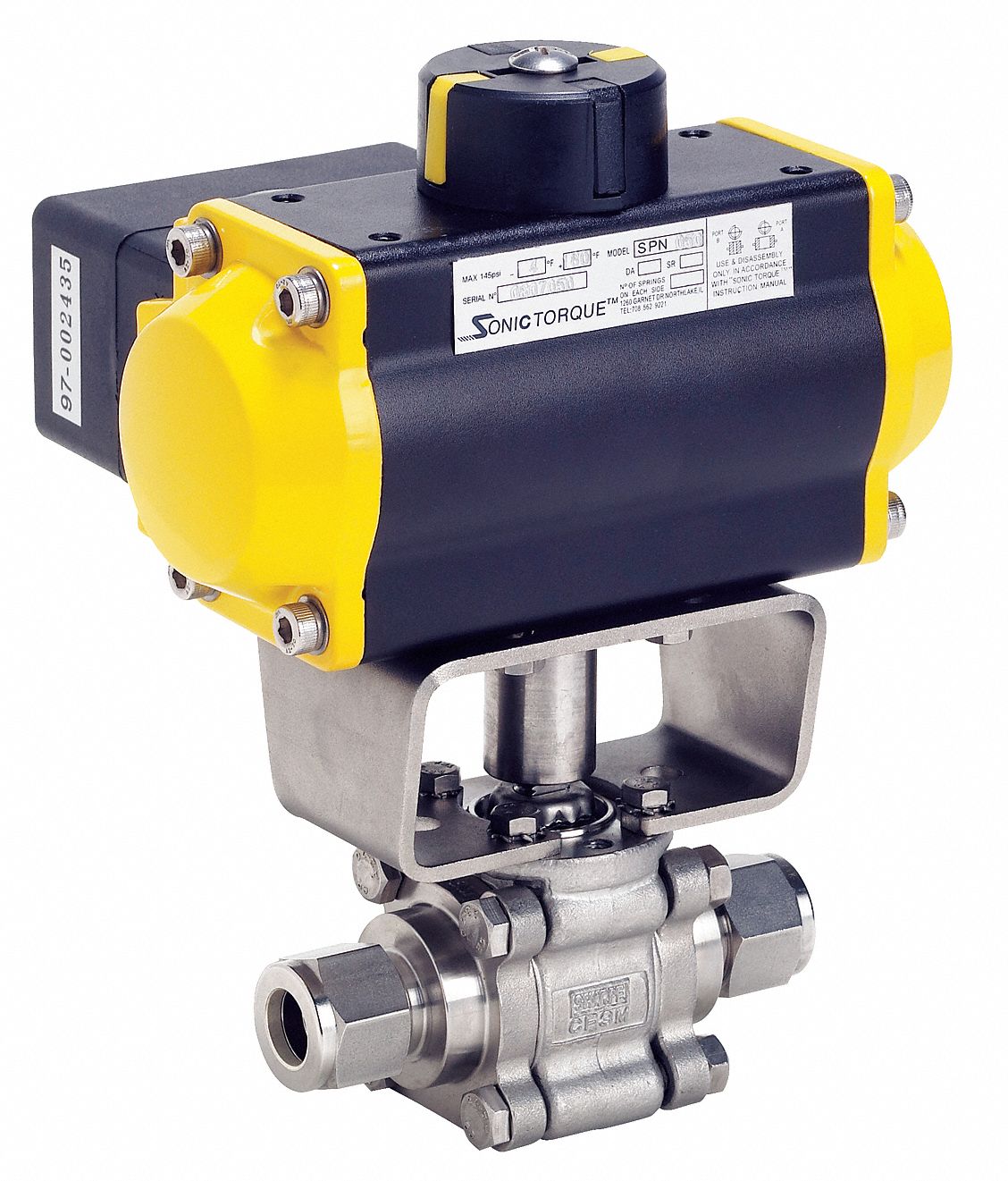

SHARPE VALVES Ball Valve, Pneumatic Actuated, 3/8 In

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pneumatic Actuated Ball Valve, Operation Spring Return, Body Material Stainless Steel, Full Port, Valve Structure Three-PiecePipe Size 3/8 In., Max. Pressure 1000 psi WOG, 150 psi Steam, Max. Inlet Pressure 145 psi, Body Style Inline, Mount Direct, Required Pressure 40 psi, Ball Material 316 Stainless Steel, Seal Material PTFE-TFM, Seat Material PTFE-TFM, Stem Material 316 Stainless Steel, Temp. Range 0 Degrees to 300 Degrees F, Standards ASTM A351

Grainger Item #	3MTE3
Price (ea.)	$916.50
Brand	SHARPE VALVES
Mfr. Model #	3/8 8666MTIE063SR07412
UNSPSC #	40141607
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	9.4
Availability	Item ships within 6 business days from supplier
Catalog Page No.	4372
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $129.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Pneumatic Actuated Ball Valve
Operation		Spring Return
Body Material		Stainless Steel
Port		Full
Valve Structure		Three-Piece
Pipe Size		3/8"
Max. Pressure		1000 psi WOG, 150 psi Steam
Max. Inlet Pressure		145 psi
Body Style		Inline
Mount		Direct
Required Pressure		40 psi
Ball Material		316 Stainless Steel
Seal Material		PTFE-TFM
Seat Material		PTFE-TFM
Stem Material		316 Stainless Steel
Temp. Range		0 Degrees to 300 Degrees F
Standards		ASTM A351
