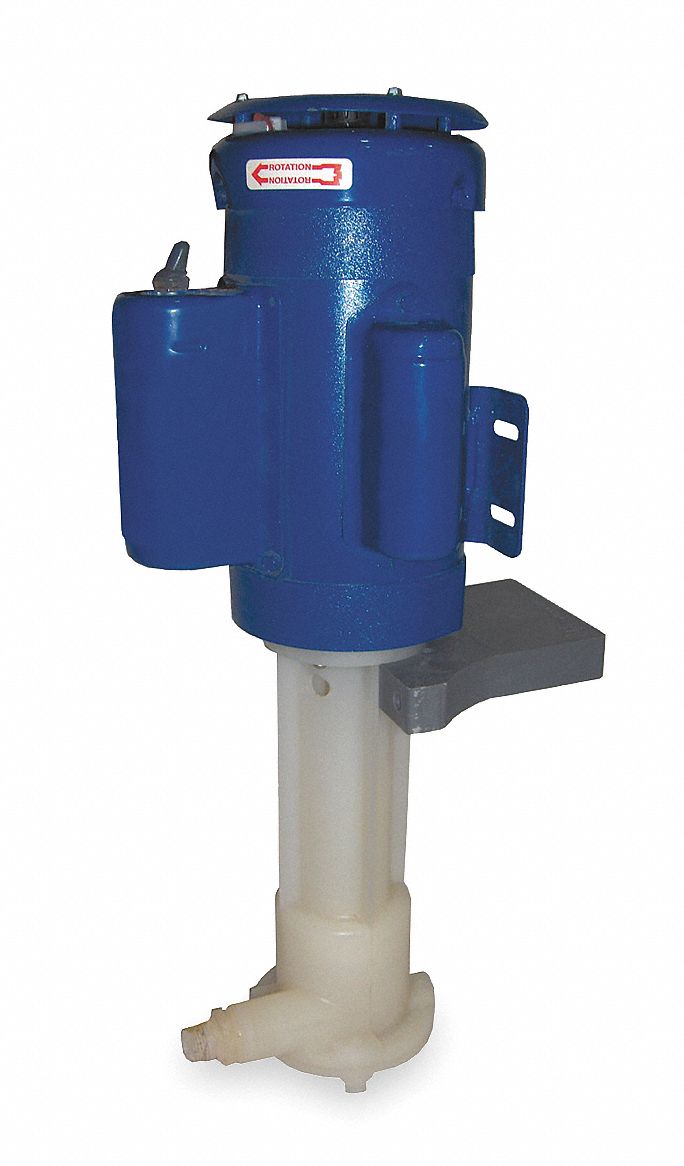

SETHCO Pump, Vertical, 1/6 HP, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Vertical, 1/6 HP, Motor Enclosure TEFC, Amps AC 2.8, Housing PVDF, Impeller Material PVDF, NPT Inlet (In.) 3/4 F, NPT Outlet (In.) 1/2 M, GPM of Water @ 15 Ft. of Head 9, Max. Head 19.5 Ft., Max. Dia. Solids 1/16 In., Max. Liquid Temp. 240 F, For Use With Corrosives

Grainger Item #	4VYF6
Price (ea.)	$1,480.00
Brand	SETHCO
Mfr. Model #	ZKX 1/3DS
UNSPSC #	40151512
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	28.9
Availability	Typically in Stock
Catalog Page No.	4038
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump
Type		Vertical
HP		1/6
Motor Enclosure		TEFC
Amps AC		2.8
Housing		PVDF
Volute Material		PVDF
Impeller Material		PVDF
NPT Inlet (In.)		3/4 F
NPT Outlet (In.)		1/2 M
GPM of Water @ 10 Ft. of Head		14
GPM of Water @ 15 Ft. of Head		9
Max. Head (Ft.)		19.5
Best Efficiency GPM @ Head (Ft.)		11 @ 13
Base to Motor Height (In.)		10-13/16
Cord Length (Ft.)		7 with Plug
Motor Type		Capacitor Start
Cord Size		18/3
Cord Type		LL61600
Switch Type		Manual
Switch		Yes
Max. Dia. Solids (In.)		1/16
Max. Liquid Temp. (F)		240
Motor Housing		Cast Iron
Hz		50/60
Insulation Class		B
Voltage		115
RPM		3450
Phase		1
Thermal Protection		Yes
Duty		Continuous
Features		Fume Barrier
Application		In-Tank/Out of Tank
For Use With		Corrosives
