Pumps
>
Sump, Effluent and Sewage Pumps
>
Upright Sump Pumps

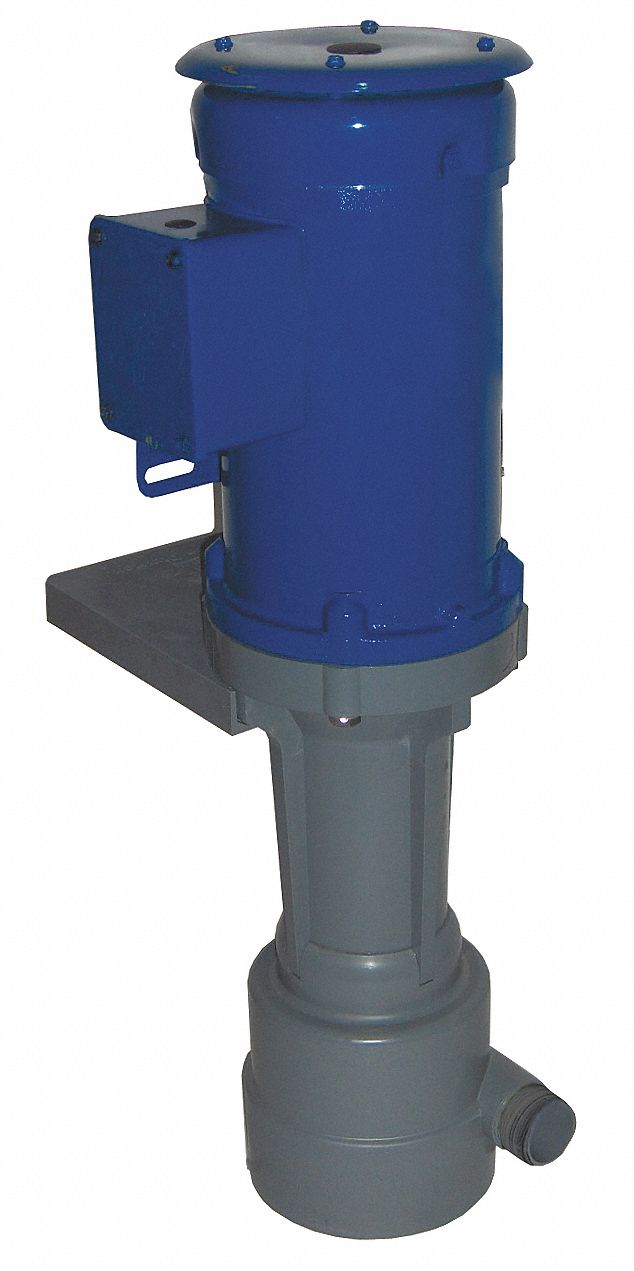

SETHCO Pump, Vertical, 2 HP, 230/460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Vertical, 2 HP, Motor Enclosure TEFC, Amps AC 4.2, Housing CPVC, Impeller Material CPVC, NPT Inlet (In.) 1 1/2 F, NPT Outlet (In.) 1 1/4 M, Max. Head 64 Ft., Max. Dia. Solids 1/16 In., Max. Liquid Temp. 180 F, For Use With Corrosives

Grainger Item #	4VYF2
Price (ea.)	$2,311.00
Brand	SETHCO
Mfr. Model #	ZDX 2ES
UNSPSC #	40151512
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	57.7
Availability	Typically in Stock
Catalog Page No.	4038
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump
Type		Vertical
HP		2
Motor Enclosure		TEFC
Amps AC		4.2
Housing		CPVC
Volute Material		CPVC
Impeller Material		CPVC
NPT Inlet (In.)		1-1/2 F
NPT Outlet (In.)		1-1/4 M
Max. Head (Ft.)		64
Best Efficiency GPM @ Head (Ft.)		65 @ 48
Base to Motor Height (In.)		14-1/8
Motor Type		3 Phase
Switch		No
Max. Dia. Solids (In.)		1/16
Max. Liquid Temp. (F)		180
Motor Housing		Cast Iron
Hz		50/60
Insulation Class		B
Voltage		230/460
RPM		3450
Phase		3
Thermal Protection		Yes
Duty		Continuous
Features		Fume Barrier
Application		In-Tank/Out of Tank
For Use With		Corrosives
