Pumps
>
Sump, Effluent and Sewage Pumps
>
Upright Sump Pumps

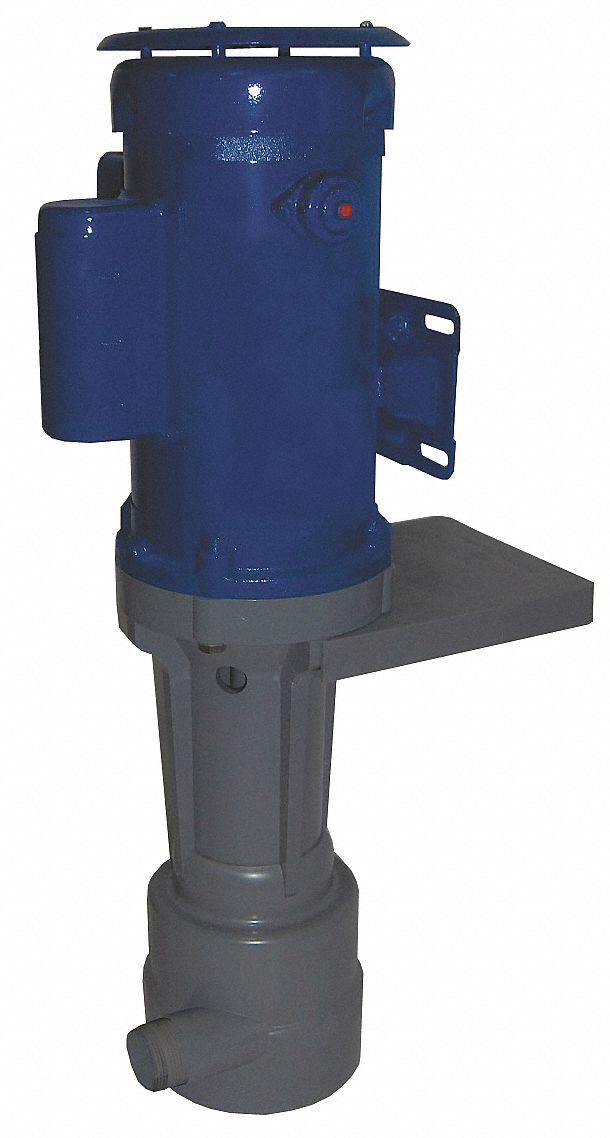

SETHCO Pump, Vertical, 1 HP, 230V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Vertical, 1 HP, Motor Enclosure TEFC, Amps AC 12.6, Housing CPVC, Impeller Material CPVC, NPT Inlet (In.) 1 1/2 F, NPT Outlet (In.) 1 1/4 M, Max. Head 48 Ft., Max. Dia. Solids 1/16 In., Max. Liquid Temp. 180 F, For Use With Corrosives

Grainger Item #	4VYE9
Price (ea.)	$2,042.00
Brand	SETHCO
Mfr. Model #	ZDX 1GS
UNSPSC #	40151512
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	60.3
Availability	Item ships within 11 business days from supplier
Catalog Page No.	4038
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Pump
Type		Vertical
HP		1
Motor Enclosure		TEFC
Amps AC		12.6
Housing		CPVC
Volute Material		CPVC
Impeller Material		CPVC
NPT Inlet (In.)		1-1/2 F
NPT Outlet (In.)		1-1/4 M
Max. Head (Ft.)		48
Best Efficiency GPM @ Head (Ft.)		55 @ 37
Base to Motor Height (In.)		14-1/8
Cord Length (Ft.)		7 w/o Plug
Motor Type		Capacitor Start
Cord Size		18/3
Cord Type		LL61600
Switch Type		Manual
Switch		Yes
Max. Dia. Solids (In.)		1/16
Max. Liquid Temp. (F)		180
Motor Housing		Cast Iron
Hz		50/60
Insulation Class		B
Voltage		230
RPM		3450
Phase		1
Thermal Protection		Yes
Duty		Continuous
Features		Fume Barrier
Application		In-Tank/Out of Tank
For Use With		Corrosives
