Pumps
>
Sump, Effluent and Sewage Pumps
>
Upright Sump Pumps

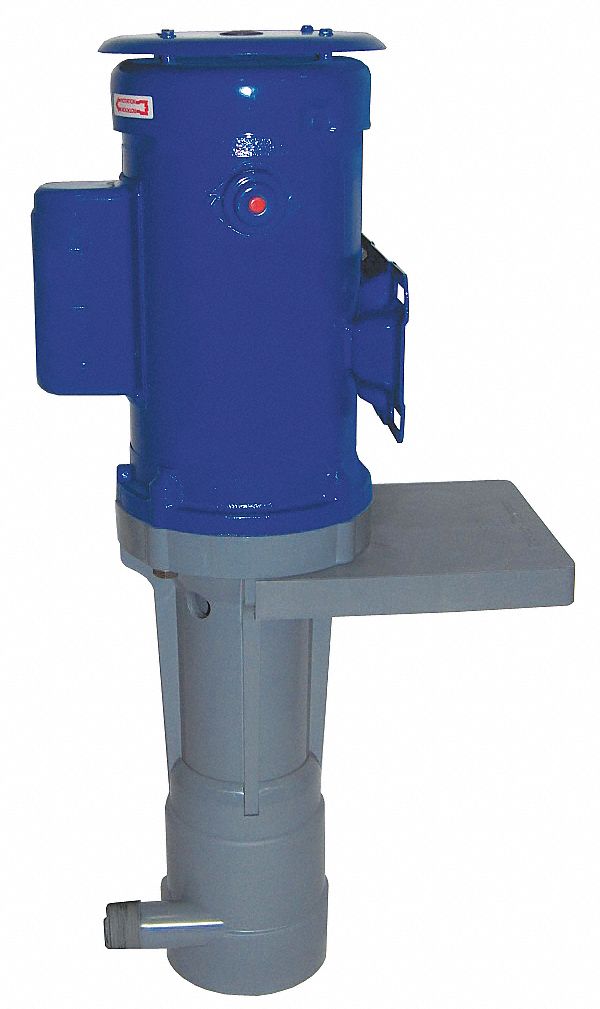

SETHCO Pump, Vertical, 3/4 HP, 115V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Pump, Vertical, 3/4 HP, Motor Enclosure TEFC, Amps AC 9.5, Housing CPVC, Impeller Material CPVC, NPT Inlet (In.) 1 1/4 F, NPT Outlet (In.) 1 M, Max. Head 36 Ft., Max. Dia. Solids 1/16 In., Max. Liquid Temp. 180 F, For Use With Corrosives

Grainger Item #	4VYE2
Price (ea.)	$1,660.00
Brand	SETHCO
Mfr. Model #	ZDX 3/4CS
UNSPSC #	40151512
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	56.4
Availability	Typically in Stock
Catalog Page No.	4038
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump
Type		Vertical
HP		3/4
Motor Enclosure		TEFC
Amps AC		9.5
Housing		CPVC
Volute Material		CPVC
Impeller Material		CPVC
NPT Inlet (In.)		1-1/4 F
NPT Outlet (In.)		1 M
Max. Head (Ft.)		36
Best Efficiency GPM @ Head (Ft.)		27 @ 30
Base to Motor Height (In.)		13-7/8
Cord Length (Ft.)		7 with Plug
Motor Type		Capacitor Start
Cord Size		18/3
Cord Type		LL61600
Switch Type		Manual
Switch		Yes
Max. Dia. Solids (In.)		1/16
Max. Liquid Temp. (F)		180
Motor Housing		Cast Iron
Hz		50/60
Insulation Class		B
Voltage		115
RPM		3450
Phase		1
Thermal Protection		Yes
Duty		Continuous
Features		Fume Barrier
Application		In-Tank/Out of Tank
For Use With		Corrosives
