Pumps
>
Sump, Effluent and Sewage Pumps
>
Upright Sump Pumps

460V

| Write a Review
| Read all Reviews
| Read all Ask & Answer

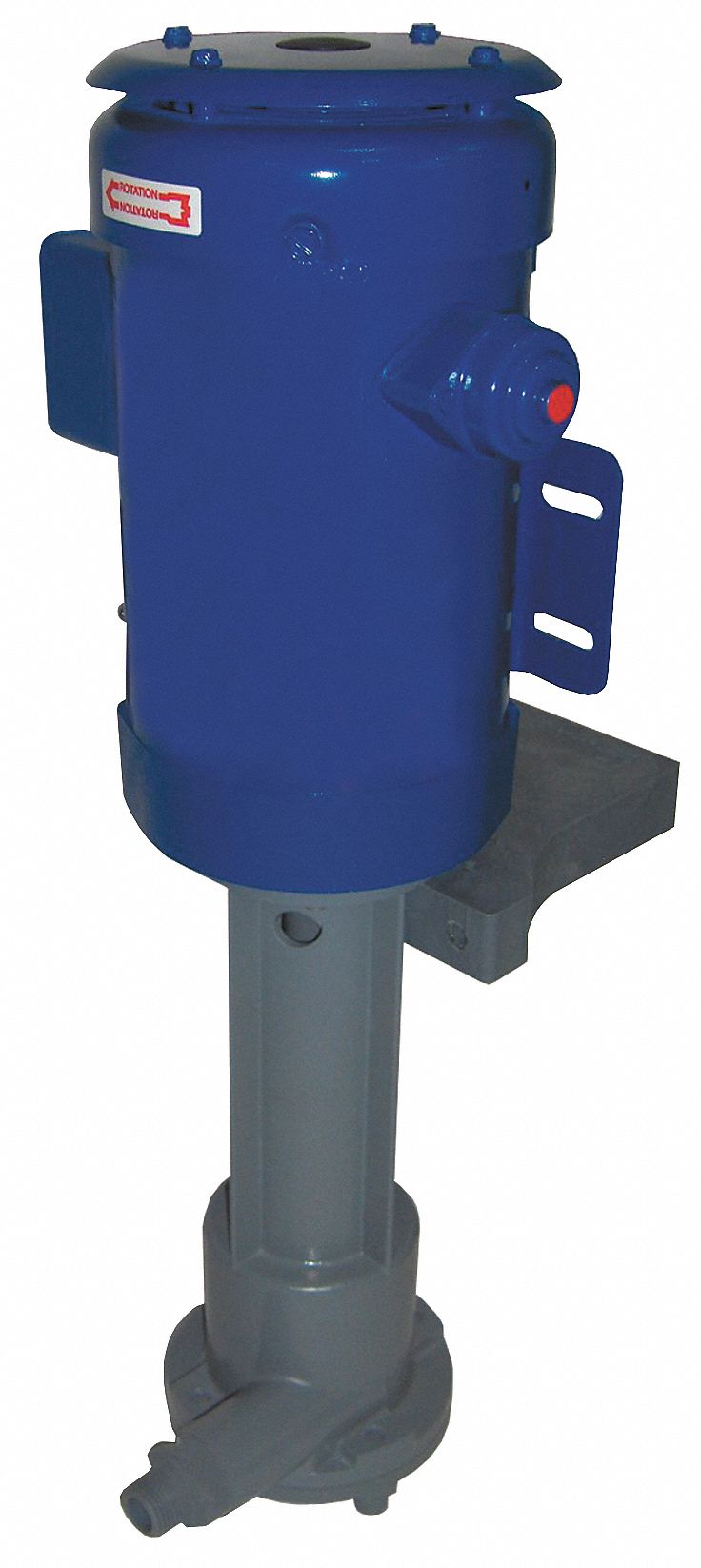

Pump, Vertical, 1/4 HP, Motor Enclosure TEFC, Amps AC 1, Housing CPVC, Impeller Material CPVC, NPT Inlet (In.) 3/4 F, NPT Outlet (In.) 1/2 M, GPM of Water @ 15 Ft. of Head 14, Max. Head 21 Ft., Max. Dia. Solids 1/16 In., Max. Liquid Temp. 180 F, For Use With Corrosives

Grainger Item #	4VYD7
Price (ea.)	$1,134.00
Brand	SETHCO
Mfr. Model #	ZDX 1/3ES
UNSPSC #	40151512
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	27.65
Availability	Typically in Stock
Catalog Page No.	4038
Country of Origin (Country of Origin is subject to change.)	USA

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $199.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Check Availability Use your ZIP code to estimate availability.

Qty:
ZIP code:

Item		Pump
Type		Vertical
HP		1/4
Motor Enclosure		TEFC
Amps AC		1
Housing		CPVC
Volute Material		CPVC
Impeller Material		CPVC
NPT Inlet (In.)		3/4 F
NPT Outlet (In.)		1/2 M
GPM of Water @ 15 Ft. of Head		14
GPM of Water @ 20 Ft. of Head		5
Max. Head (Ft.)		21
Best Efficiency GPM @ Head (Ft.)		13 @ 16
Base to Motor Height (In.)		10-15/16
Motor Type		3 Phase
Switch		No
Max. Dia. Solids (In.)		1/16
Max. Liquid Temp. (F)		180
Motor Housing		Cast Iron
Hz		50/60
Insulation Class		B
Voltage		230/460
RPM		3450
Phase		3
Thermal Protection		Yes
Duty		Continuous
Features		Fume Barrier
Application		In-Tank/Out of Tank
For Use With		Corrosives
