Pumps
>
Piston/Progressive Cavity/Roller Spray
>
Progressive Cavity Pumps

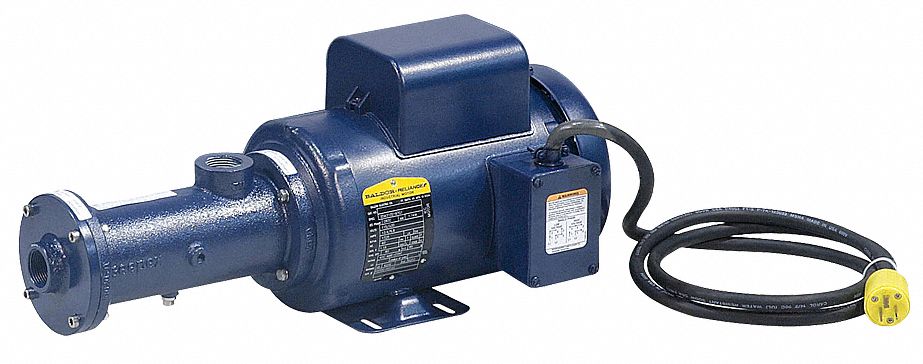

SEEPEX Progressive Cavity Pump, CI, 5 HP

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Progressive Cavity Metering Pump, Min. RPM 115, Max. RPM 1150, Required HP @ Lower RPM 5, Required HP @ Higher RPM 5, Voltage 230/460VAC, 60 Hz, Max. Viscosity 40, 000 cPs, Particle Size 11.5mm, Max. Pressure 43 PSI, Flow Rate @ Max RPM and 0 PSI 63.14gpm, Min. Fluid Temp. 32 Degrees F, Max. Fluid Temp. 132 Degrees F, Inlet/Outlet (In.) 2 - 2 NPT, Seal Type Mecahnical, Seal Material Stainless Steel, Viton, Cast Iron Housing Material, Includes Variable Speed Motor

Grainger Item #	15V253
Price (ea.)	$4,086.00
Brand	SEEPEX
Mfr. Model #	BW 10
UNSPSC #	40151553
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	270.0
Availability	Item ships within 3 business days from supplier
Catalog Page No.	4088
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $529.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Progressive Cavity Metering Pump
Min. RPM		115
Max. RPM		1150
Required HP @ Lower RPM		5
Required HP @ Higher RPM		5
Voltage		230/460VAC
Hz		60
Max. Viscosity		40,000 cPs
Particle Size		11.5mm
Min. Pressure (PSI)		0
Max. Pressure (PSI)		43
Flow Rate @ Min. RPM and 0 PSI		5.71 gpm
Flow Rate @ Max. RPM and 0 PSI		63.14 gpm
Min. Fluid Temp.		32 Degrees F
Max. Fluid Temp.		132 Degrees F
Inlet/Outlet (In.)		2 - 2 NPT
Seal Type		Mecahnical
Seal Material		Stainless Steel, Viton
Housing Material		Cast Iron
Length (In.)		41-15/16
Width (In.)		13-3/8
Height (In.)		12-3/8
Series		BW
Application		Transfer
Includes		Variable Speed Motor
