Pumps
>
Piston/Progressive Cavity/Roller Spray
>
Progressive Cavity Pumps

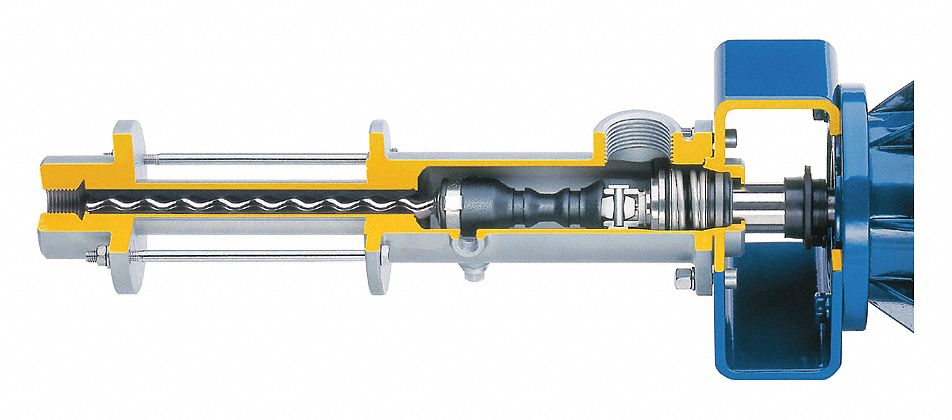

SEEPEX Progressive Cavity Pump, SS, 1744rpm

| Write a Review
| Read all Reviews
| Read all Ask & Answer

Progressive Cavity Metering Pump, Min. RPM 175, Max. RPM 1750, Required HP @ Lower RPM 1/2, Required HP @ Higher RPM 1/2, Max. Viscosity 40, 000 cPs, Particle Size 3mm, Max. Pressure 180 PSI, Flow Rate @ Max RPM and 0 PSI 1.2945gpm, Flow Rate @ Max RPM and 90 PSI 1.2834 gpm, Flow Rate @ Max RPM and 180 PSI 1.2634gpm, Min. Fluid Temp. 32 Degrees F, Max. Fluid Temp. 132 Degrees F, Inlet/Outlet (In.) 1-1/2 NPT, Seal Type Lip, Seal Material PTFE/Ceramic/FPM, Stainless Steel Housing Material

Grainger Item #	15V242
Price (ea.)	$2,289.00
Brand	SEEPEX
Mfr. Model #	MDPS 006-12
UNSPSC #	40151553
Ship Qty.	1
Sell Qty. (Will-Call)	1
Ship Weight (lbs.)	18.0
Availability	Item ships within 3 business days from supplier
Catalog Page No.	4088
Country of Origin (Country of Origin is subject to change.)	Not Available

Qty.
Add Grainger TripleGuard® repair & replacement coverage for $299.00 each.
Price shown may not reflect your price. Sign in or register.

Enlarge Image

Item		Progressive Cavity Metering Pump
Min. RPM		175
Max. RPM		1750
Required HP @ Lower RPM		1/2
Required HP @ Higher RPM		1/2
Max. Viscosity		40,000 cPs
Particle Size		3mm
Min. Pressure (PSI)		0
Max. Pressure (PSI)		180
Flow Rate @ Min. RPM and 0 PSI		0.1294 gpm
Flow Rate @ Max. RPM and 0 PSI		1.2945 gpm
Flow Rate @ Min. RPM and 90 PSI		0.1247 gpm
Flow Rate @ Max. RPM and 90 PSI		1.2834 gpm
Flow Rate @ Min. RPM and 180 PSI		0.1107 gpm
Flow Rate @ Max. RPM and 180 PSI		1.2634 gpm
Min. Fluid Temp.		32 Degrees F
Max. Fluid Temp.		132 Degrees F
Inlet/Outlet (In.)		1-1/2 NPT
Seal Type		Lip
Seal Material		PTFE/Ceramic/FPM
Housing Material		Stainless Steel
Length (In.)		16-1/4
Width (In.)		6-1/2
Height (In.)		5-7/8
Series		MDPS
Application		Metering
